Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER .
  2. Remove the body side lower garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE LOWER REAR .
  3. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE .
  4. Remove the upper seat belt guide retaining bolt from the seat belt guide.
  5. Remove the upper seat belt guide from the vehicle.

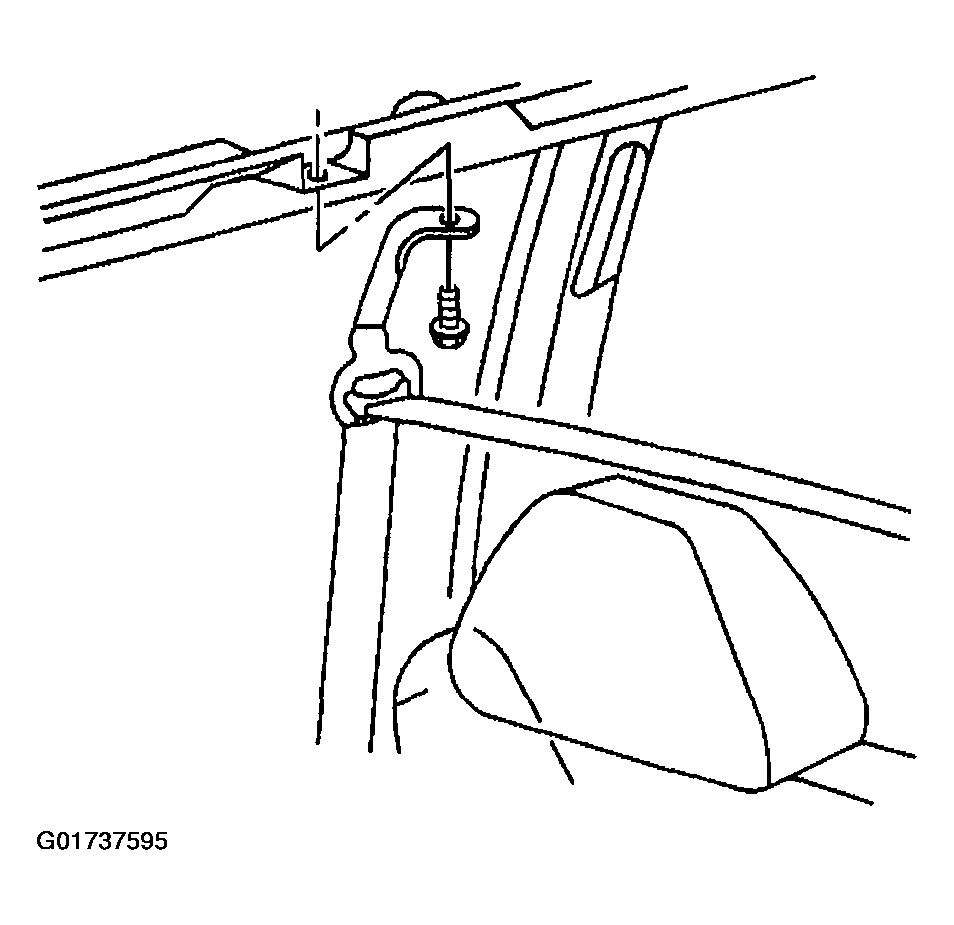

    Fig 1: Removing Upper Seat Belt Guide Retaining Bolt & Upper Seat Belt Guide
    G01737595Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat belt retractor retaining bolt from the vehicle.
  7. Remove the seat belt retractor from the vehicle.

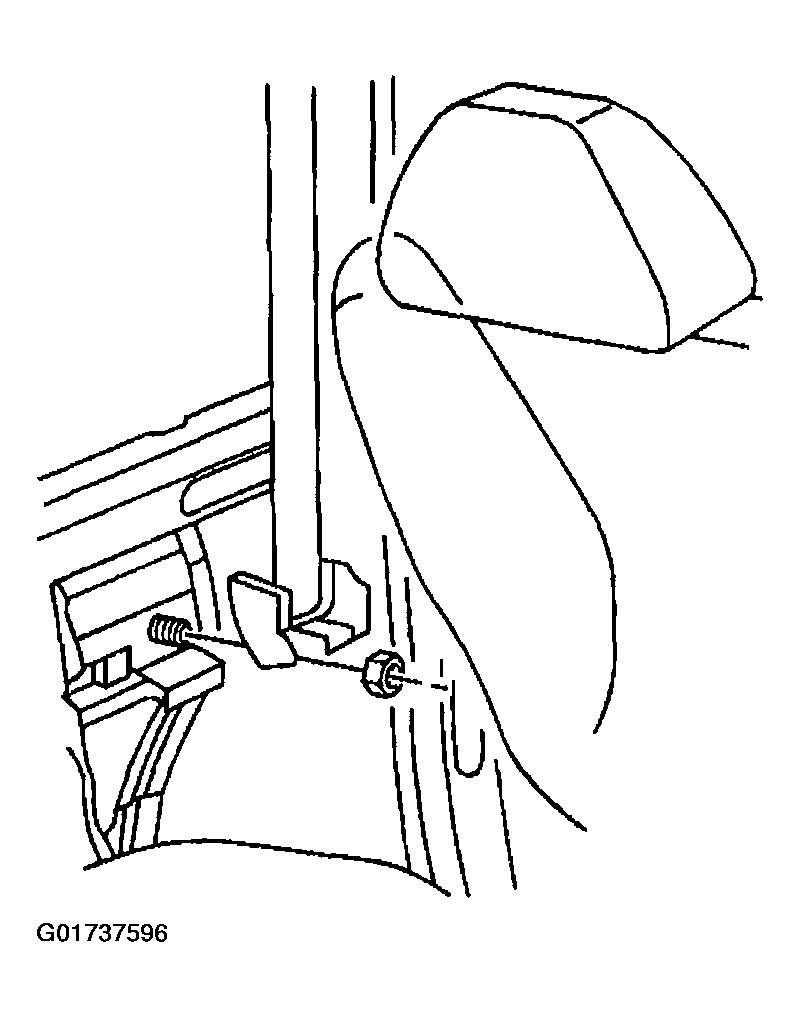

    Fig 2: Removing Seat Belt Retractor Retaining Bolt & Seat Belt Retractor
    G01737596Courtesy of GENERAL MOTORS CORP.
