Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt retaining the shoulder/seat belt guide to the guide adjuster.
  2. Remove the shoulder/seat belt guide from the guide adjuster.
  3. Remove the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
    Fig 1: Removing Shoulder/Seat Belt Guide
    G01737591Courtesy of GENERAL MOTORS CORP.
  4. Remove the shoulder/seat belt guide adjuster retaining bolts from the pillar.
  5. Remove the shoulder/seat belt guide adjuster from the vehicle.

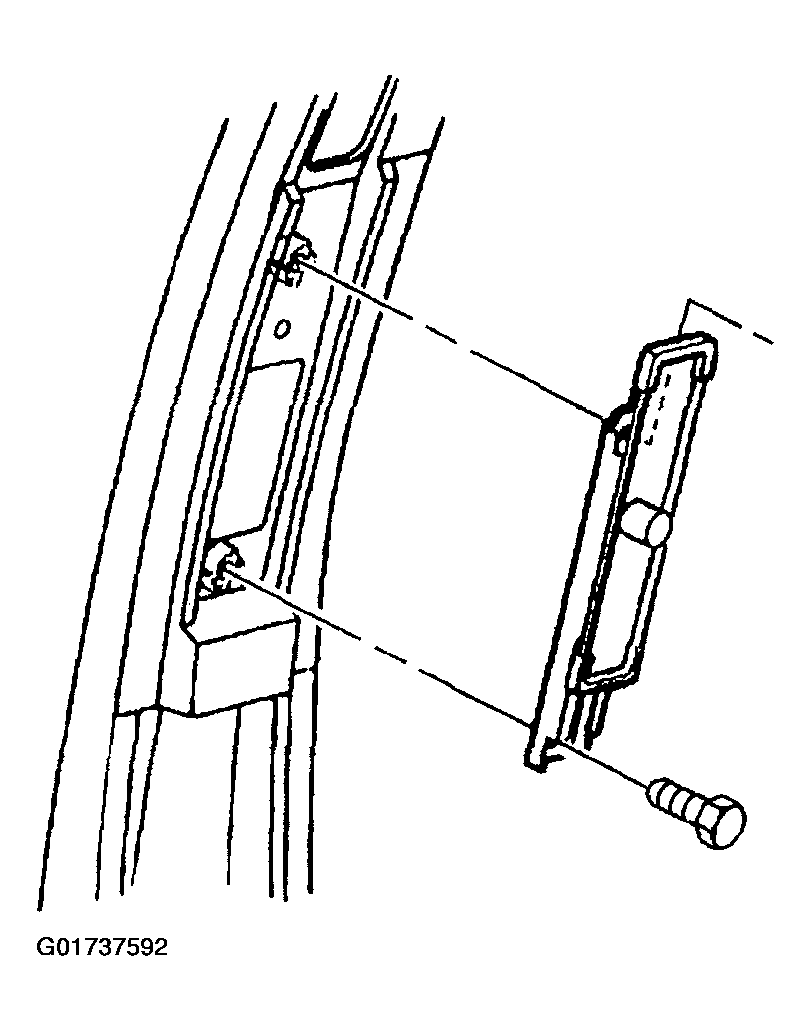

    Fig 2: Removing Shoulder/Seat Belt Guide Adjuster
    G01737592Courtesy of GENERAL MOTORS CORP.
