Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the seat belt tether spacer bar hook (1) for damage, if damaged replace the bucket seat riser spacer bar. Refer to SEAT RISER REPLACEMENT - REAR .
    Fig 1: Inspecting Seat Belt Tether Spacer Bar Hook
    G01737628Courtesy of GENERAL MOTORS CORP.
  2. The front bucket seat passenger side tether belt (2) runs down the center of seatback and hooks to the seat belt tether spacer bar (4) located in the center of the seat riser.

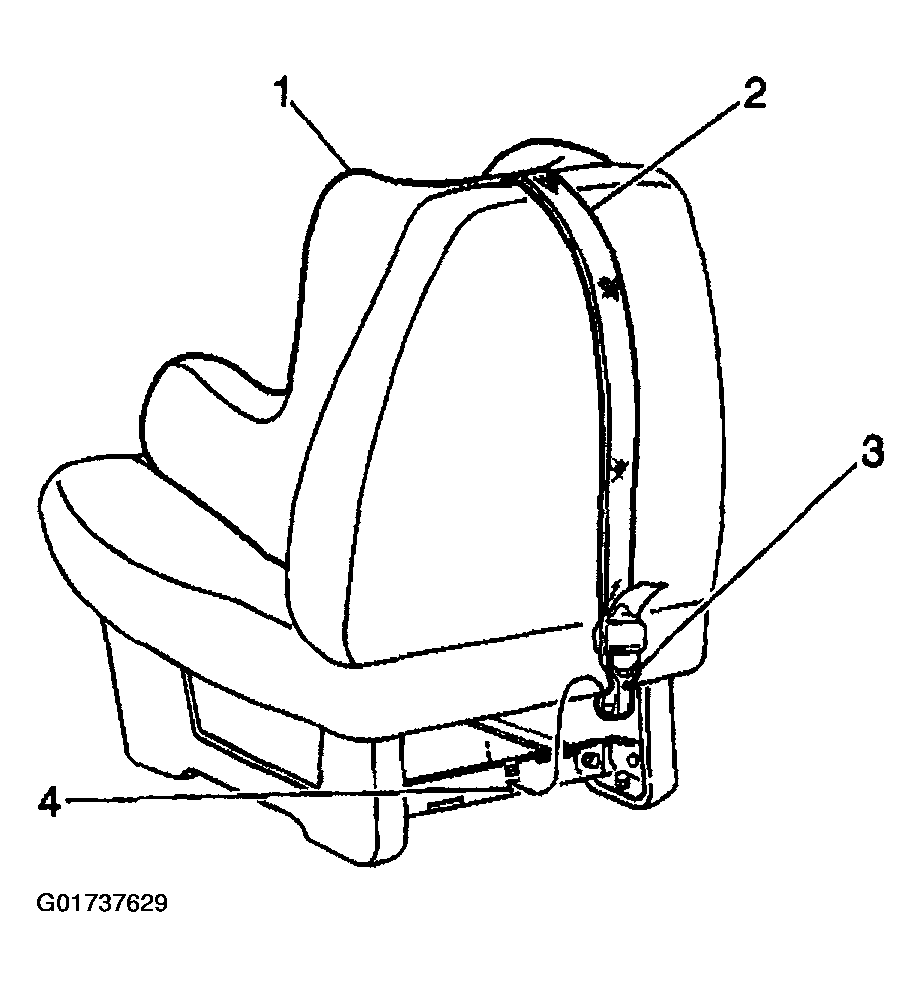

    Fig 2: Unhooking Front Bucket Seat Passenger Side Tether Belt
    G01737629Courtesy of GENERAL MOTORS CORP.
  3. For the bench seats, the seat belt tether belt must run under the headrest and hook into the seat belt tether anchor which is located behind the seatback and integrated into the center seat belt. If the seat belt tether anchor or seat belt are damaged the rear center seat belts must be replaced. Refer to Seat Belt Buckle Replacement - Rear (All Except Luxury)  or Seat Belt Buckle Replacement - Rear (Luxury (Y91))  .

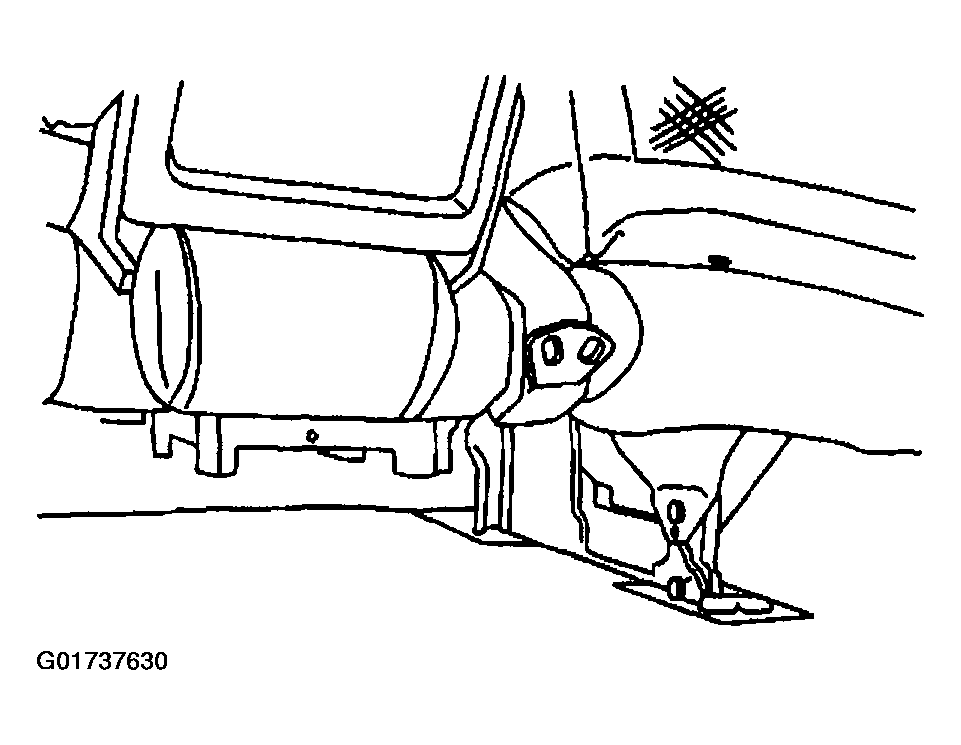

    Fig 3: Removing Seat Belt Tether (Bench Seats)
    G01737630Courtesy of GENERAL MOTORS CORP.
