Child Restraint Belt Tether Location

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the child seat tether of the front passenger seat by accessing the top tether anchor and reaching over the back of the seat.
  2. Clip the top tether hook onto the anchor.
    Fig 1: Installing Child Seat Tether (Front Passenger)
    G01737623Courtesy of GENERAL MOTORS CORP.
  3. Install the child seat tether of the rear passenger seat by accessing the top tether anchor and reaching over the back of the seat.

    Important:  Each anchor accommodates one child seat only. Each 3-passenger bench will accommodate a maximum of 2 child seats.

  4. Clip the top tether hook into the right hand anchor (1) for the right hand position (right side shown installed), the left hand anchor for the left hand position, or either anchor for the center position.

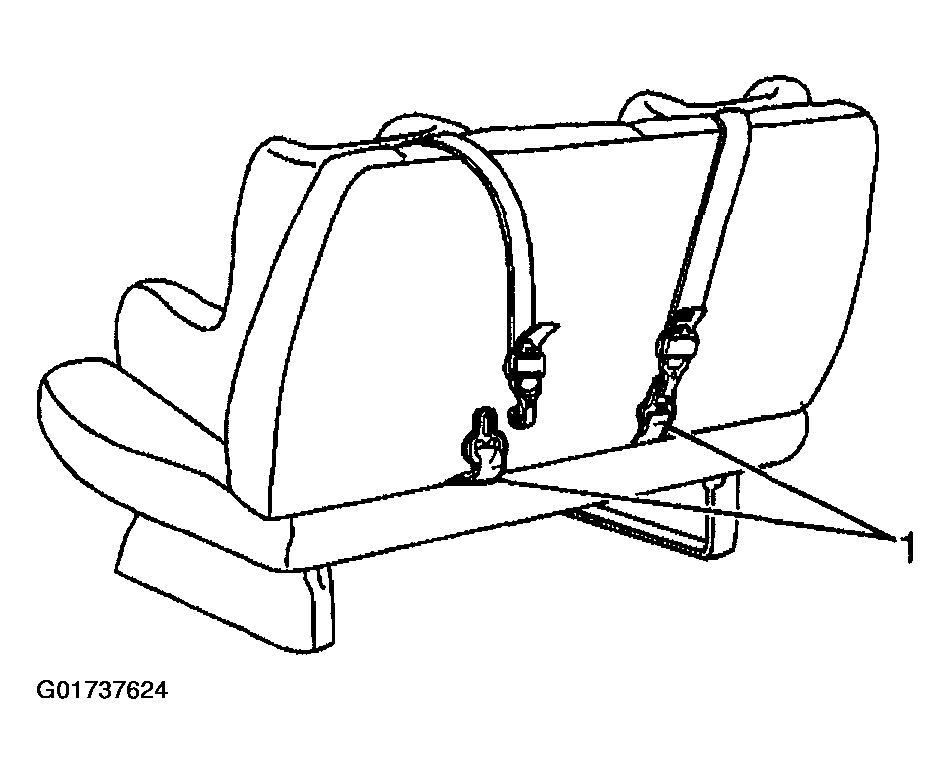

    Fig 2: Installing Child Seat Tether (Rear Passenger)
    G01737624Courtesy of GENERAL MOTORS CORP.
