Fasten Safety Belt Indicator/Chime Always On

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

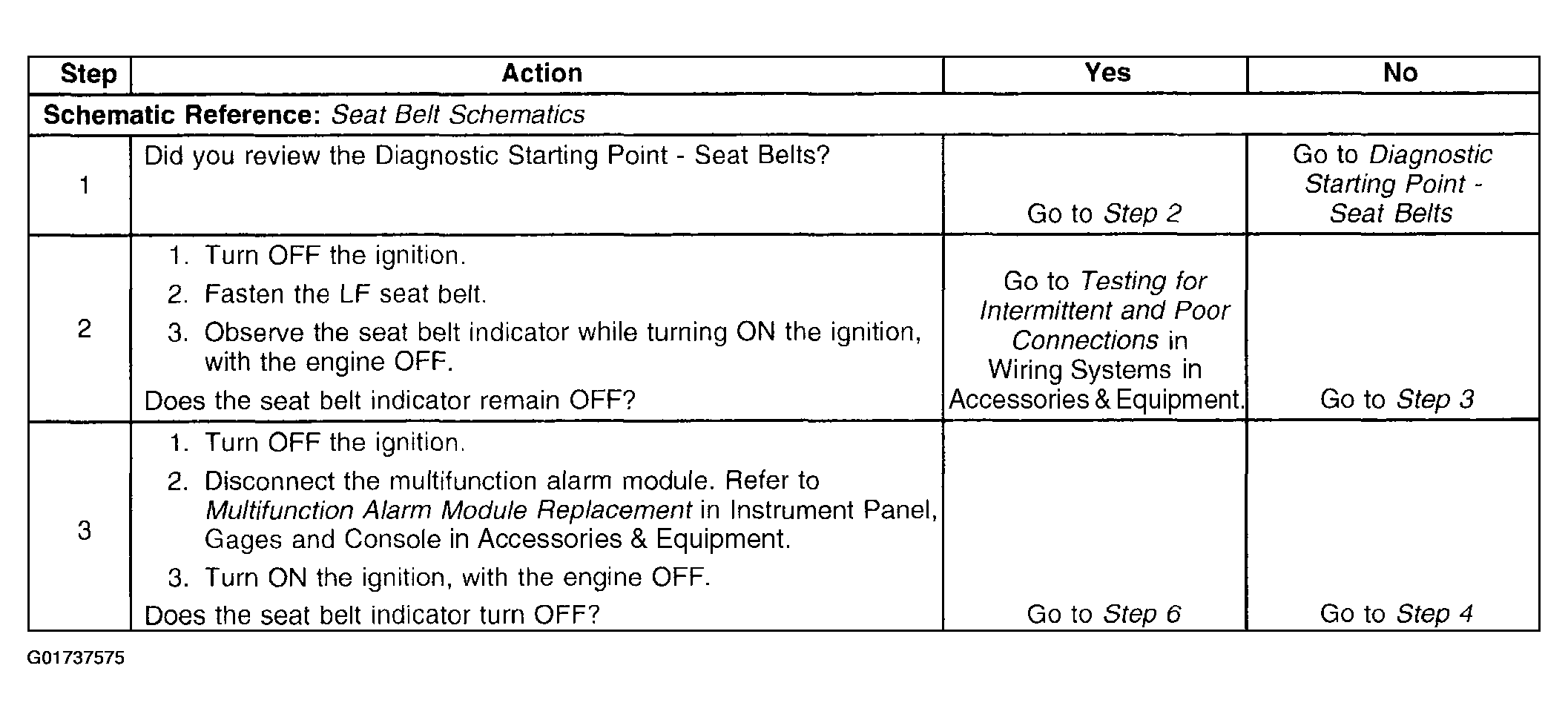

Fig 1: Fasten Safety Belt Indicator/Chime Always On (1 Of 2)
G01737575Courtesy of GENERAL MOTORS CORP.

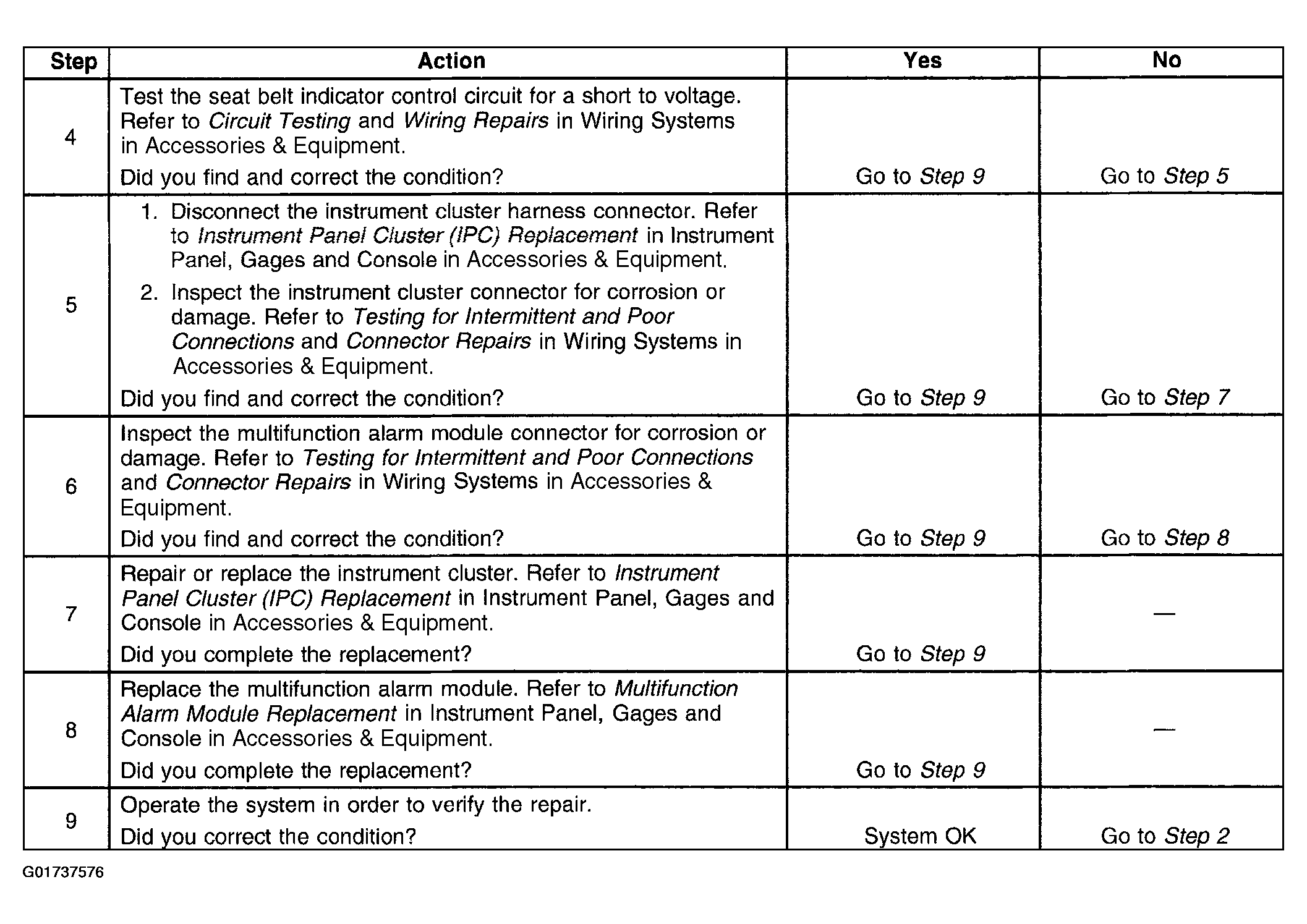

Fig 2: Fasten Safety Belt Indicator/Chime Always On (2 Of 2)
G01737576Courtesy of GENERAL MOTORS CORP.
