Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  2. Remove the center seat belts nuts (1).

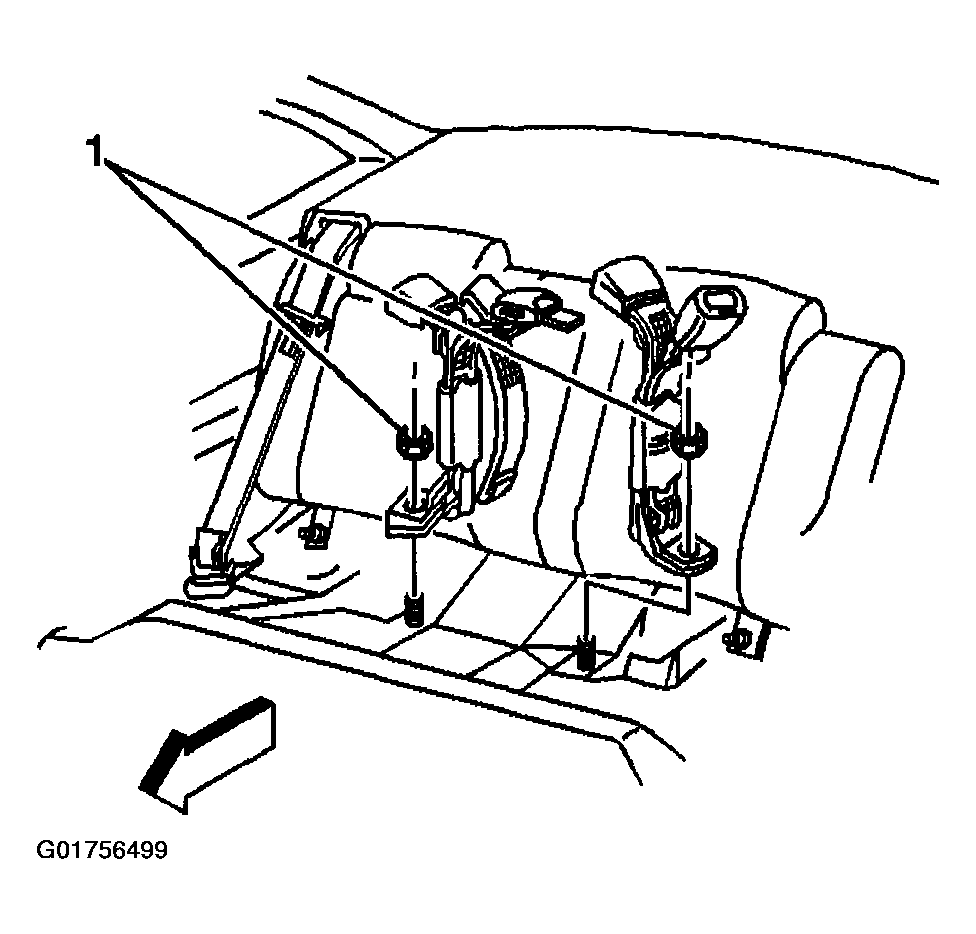

    3. Fig 1: Identifying Center Rear Seat Belt
    G01756499Courtesy of GENERAL MOTORS CORP.
  3. Remove the center seat belts from the vehicle.
