Front Brake Rotor: Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake rotor. Install the caliper bracket. See FRONT BRAKE CALIPER BRACKET  . Lower the vehicle.

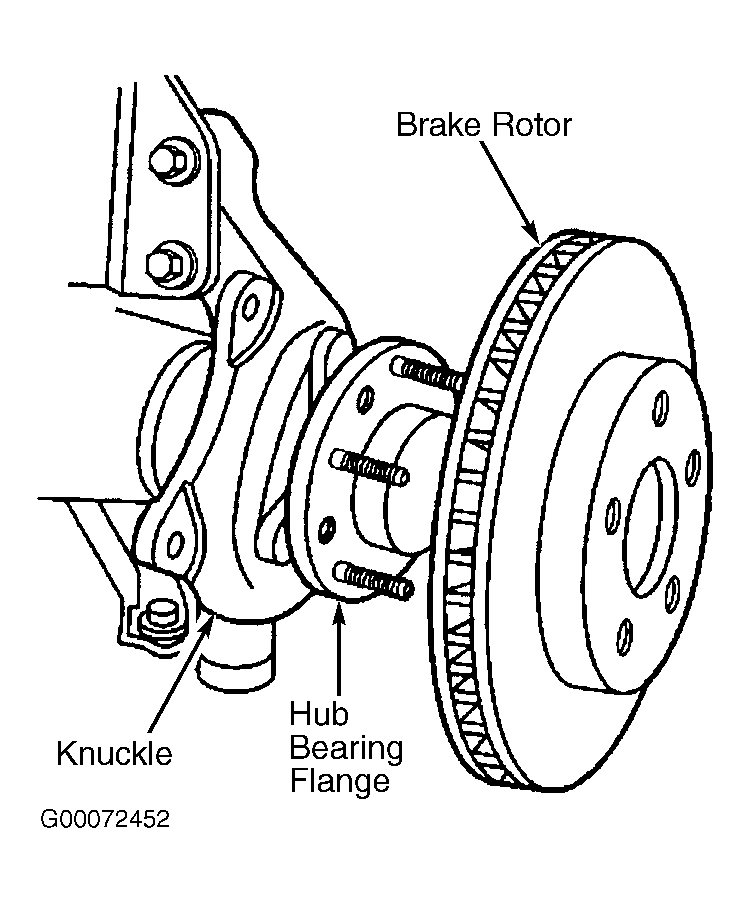

Fig 1: Removing Disc Rotor
G00072452Courtesy of GENERAL MOTORS CORP.
