Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts that retain the under seat storage tray to the rear seat.
  2. Remove the under seat storage tray from the vehicle.

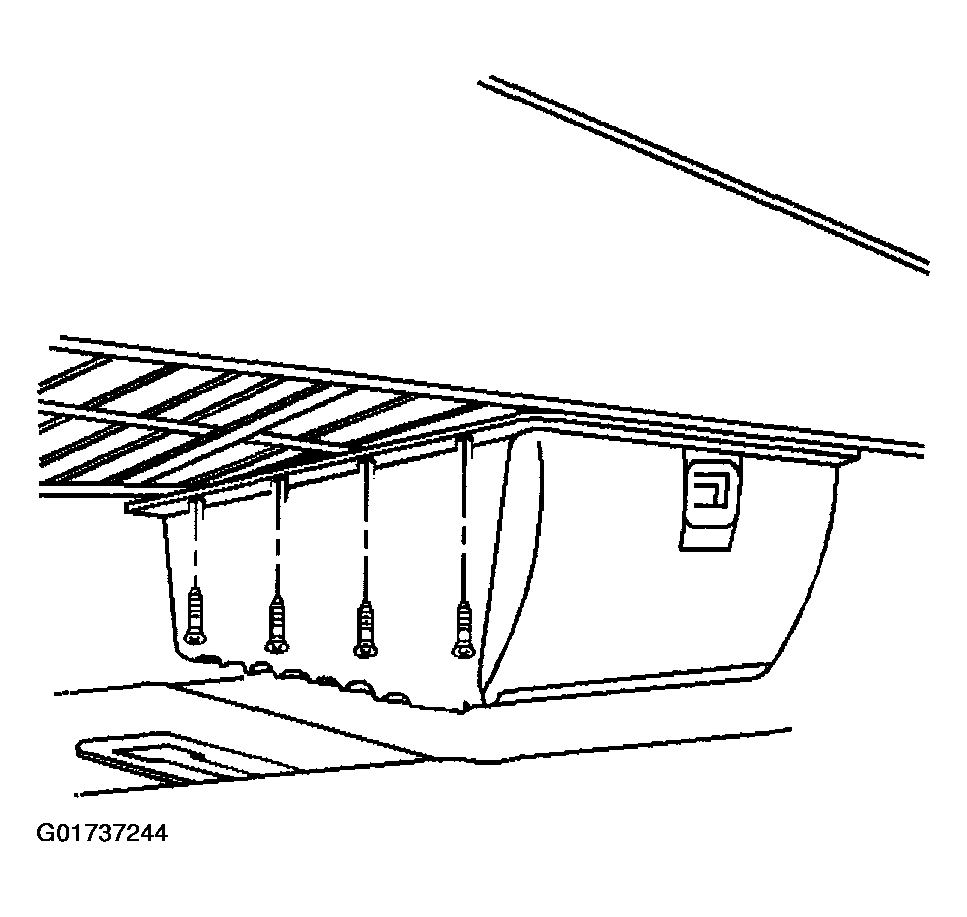

Fig 1: Removing Bolts & Under Seat Storage Tray
G01737244Courtesy of GENERAL MOTORS CORP.
