Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press a drift punch or a similar tool into the release hole of the seat belt buckle while pulling on the safety belt in order to remove the quick release latch plates for the lap/shoulder belts.
  2. Rotate the locking pin (3) at the rear of the seat riser out of the retainer.
  3. Pull the locking pin (3) out from the rear of the seat riser.

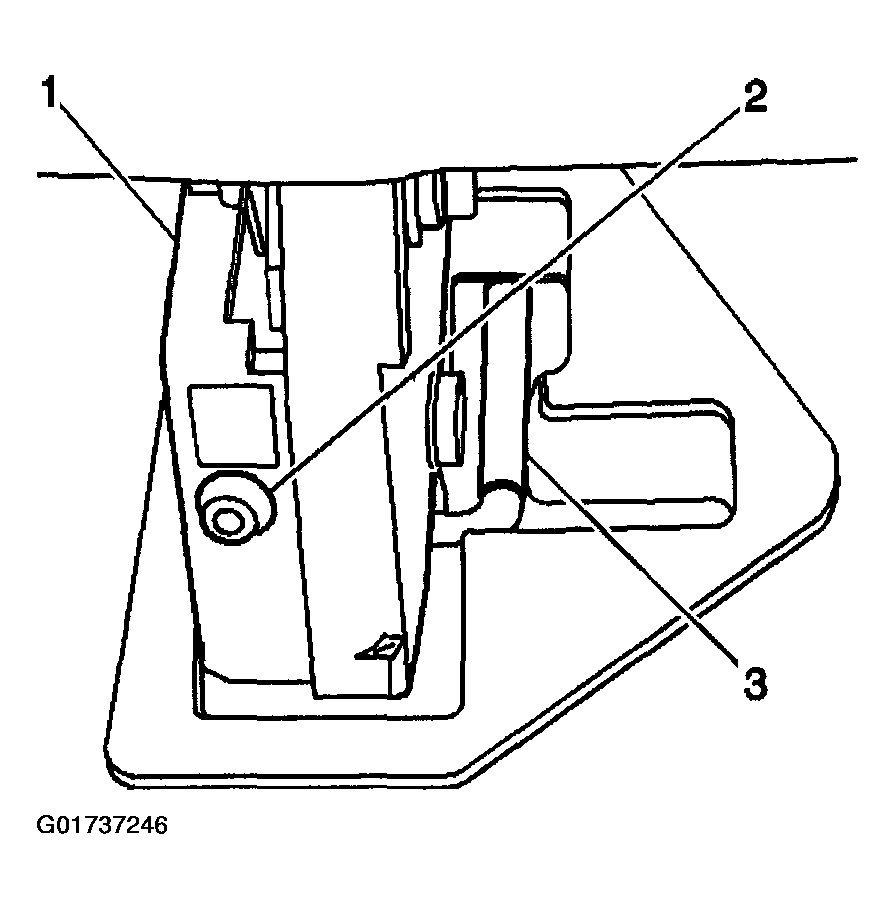

    Fig 1: Rotating Locking Pin
    G01737246Courtesy of GENERAL MOTORS CORP.
  4. Stow the locking pin in the hole provided at the rear of the seat riser (2).

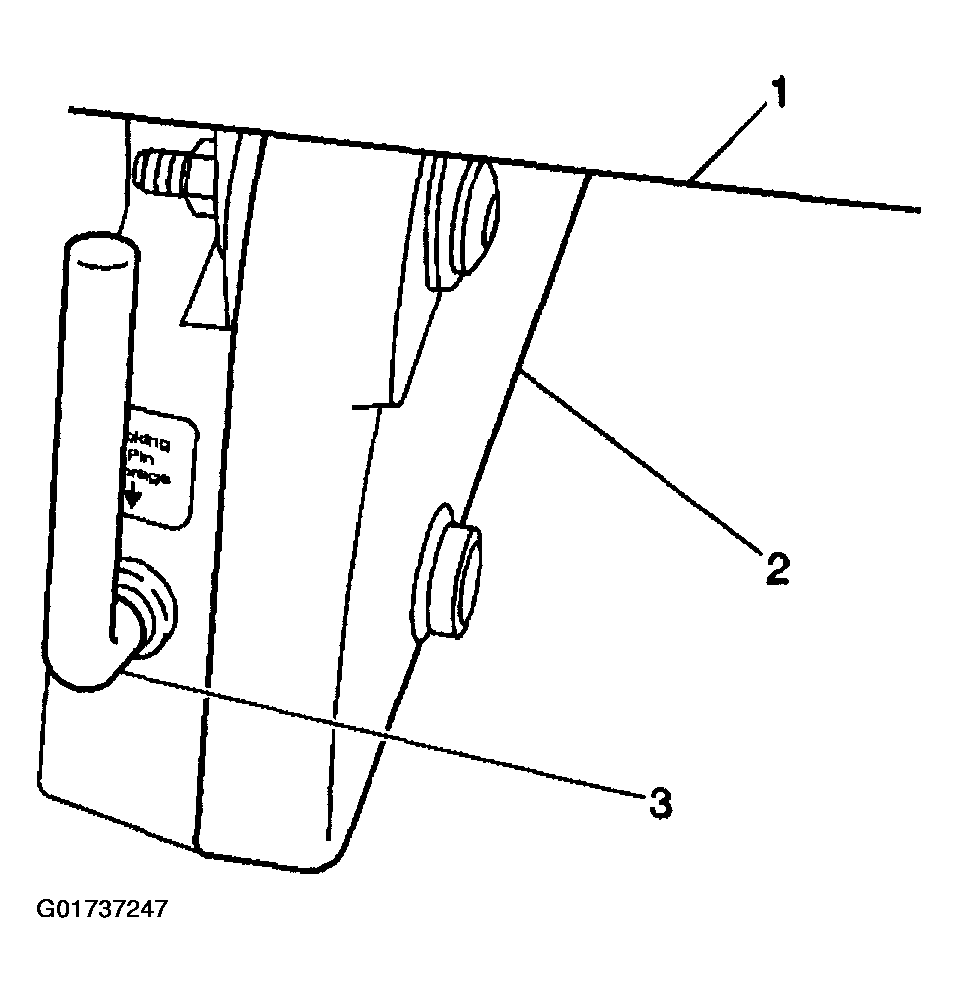

    Fig 2: Stowing Locking Pin In Hole
    G01737247Courtesy of GENERAL MOTORS CORP.
  5. Lift the seat up and out of the floor rails.

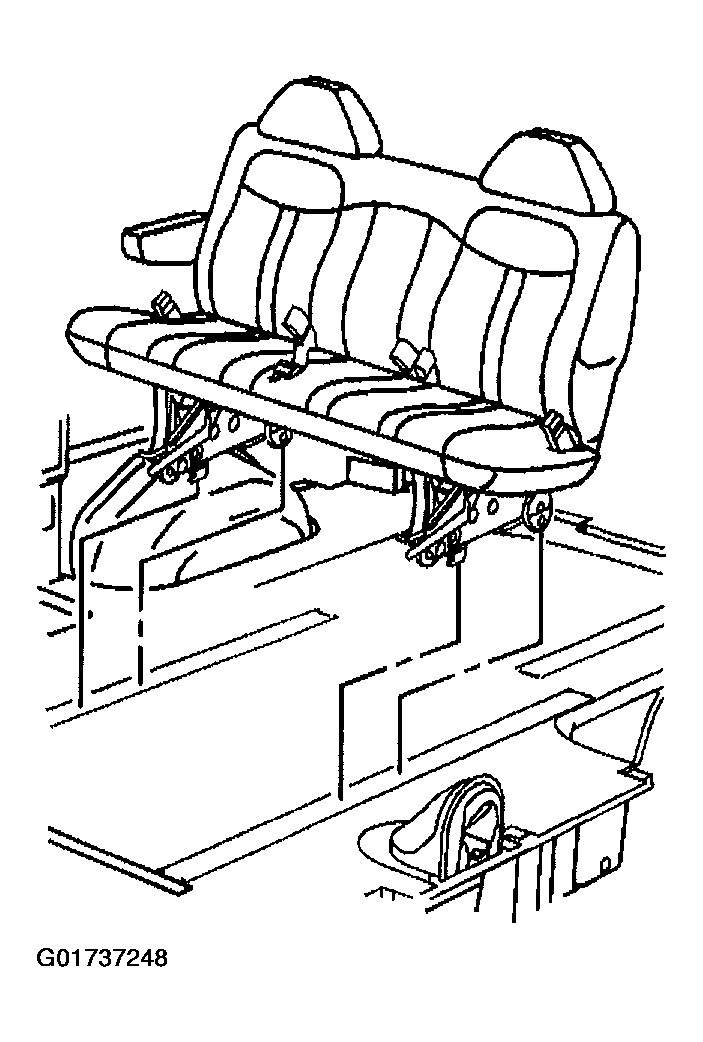

    Fig 3: Lifting Seat Up & Out Of Floor Rails
    G01737248Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat from the vehicle.

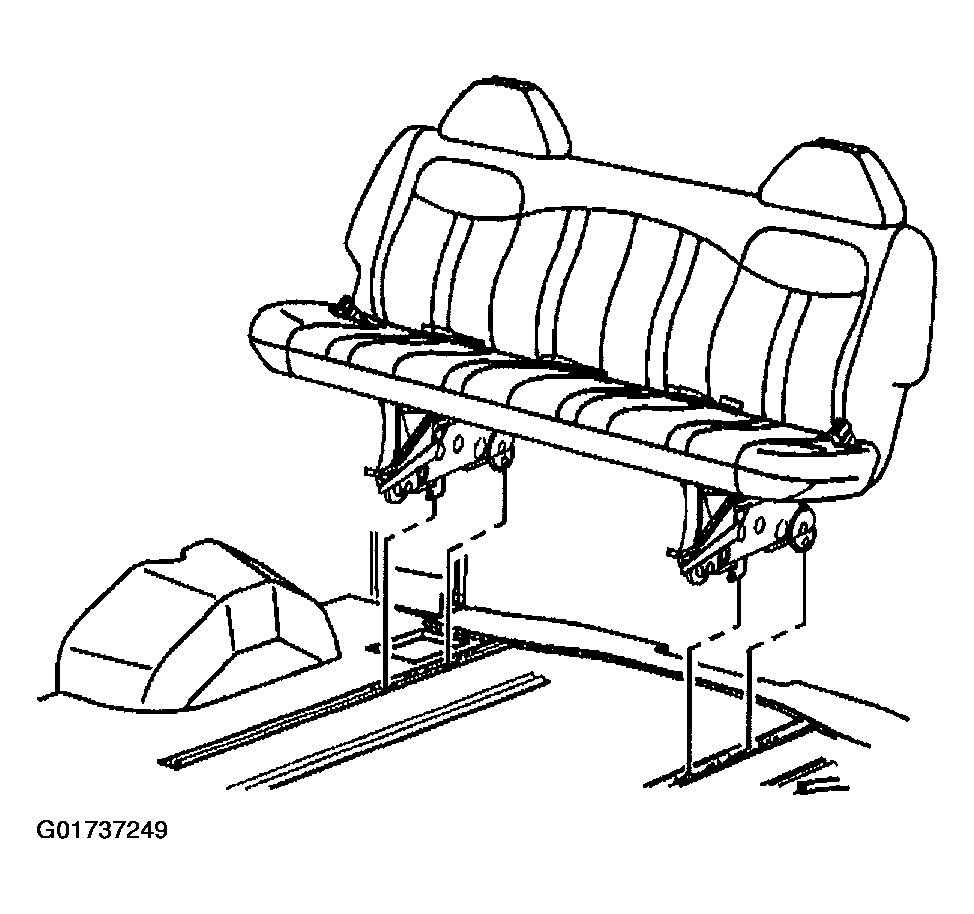

Fig 4: Removing Seat
G01737249Courtesy of GENERAL MOTORS CORP.
