Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the seat adjuster, if equipped.
  2. Disconnect the electrical connector from the seat belt buckle.
  3. Remove the nuts (3) that retain the seat assembly to the vehicle.
  4. Remove the front seat assembly from the vehicle.

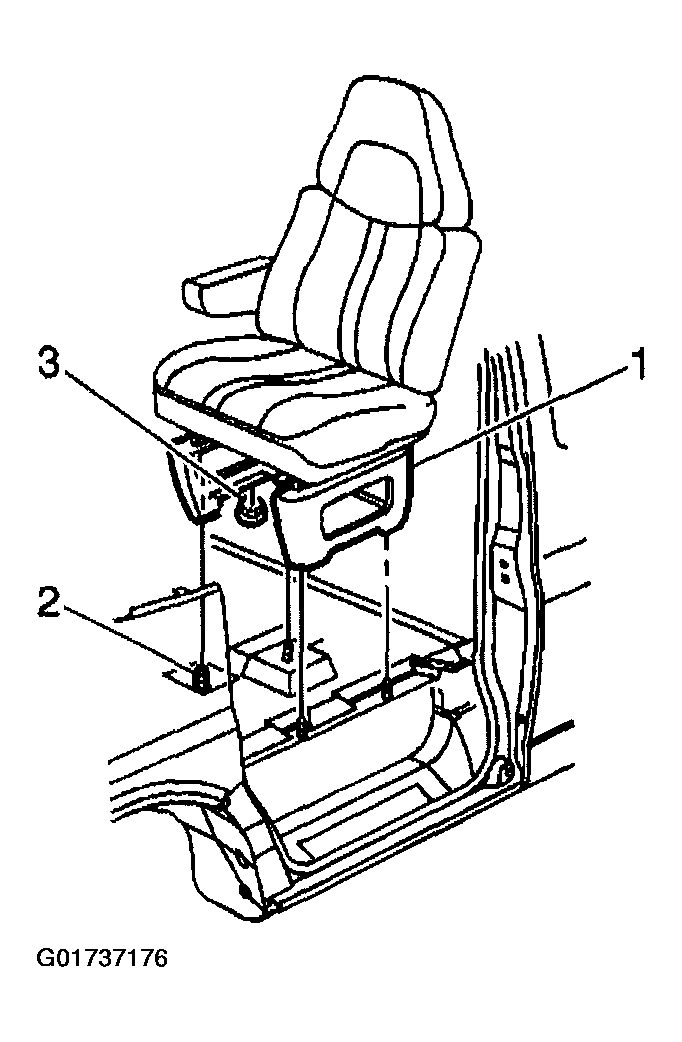

Fig 1: Removing Nuts Retaining Seat Assembly
G01737176Courtesy of GENERAL MOTORS CORP.
