Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seat from the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)  .
  2. Remove the rear passenger seat riser. Refer to Seat Riser Replacement - Rear .
  3. Remove the seatback from the seat cushion. Refer to Seat Back Cover and Pad Replacement - Rear (All Except Luxury)  or Seat Back Cover and Pad Replacement - Rear (Luxury Y91)  .
  4. Remove the hog rings from the rear edge of the seat cushion cover (1).
  5. Remove the seat belt buckles. Refer to SEAT BELT BUCKLE REPLACEMENT - REAR (ALL EXCEPT LUXURY) or SEAT BELT BUCKLE REPLACEMENT - REAR (LUXURY (Y91)) .
  6. Remove all the remaining hog rings that retain the seat cushion cover to the seat cushion frame (3).
  7. Release the hook and loop strips that retain the seat cushion cover to the foam pad (2).
  8. Remove the seat cushion cover from the foam pad.

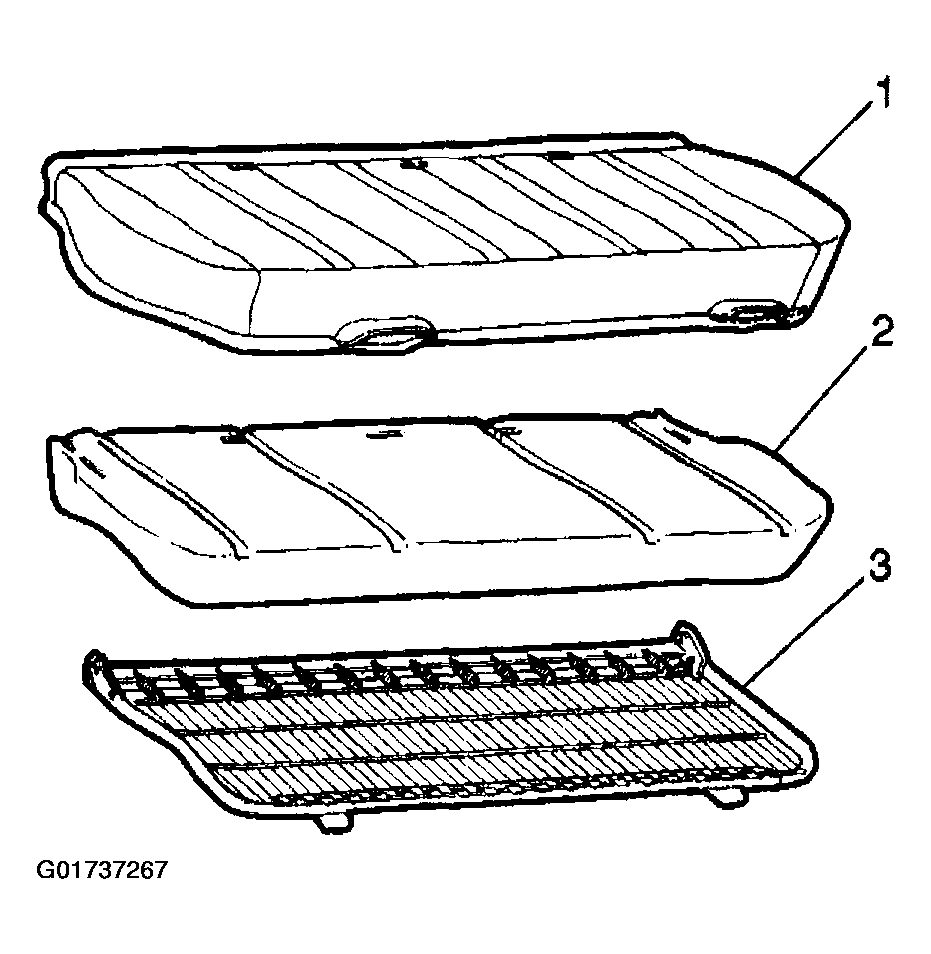

Fig 1: Removing Hog Rings & Hook & Loop Strips
G01737267Courtesy of GENERAL MOTORS CORP.
