Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

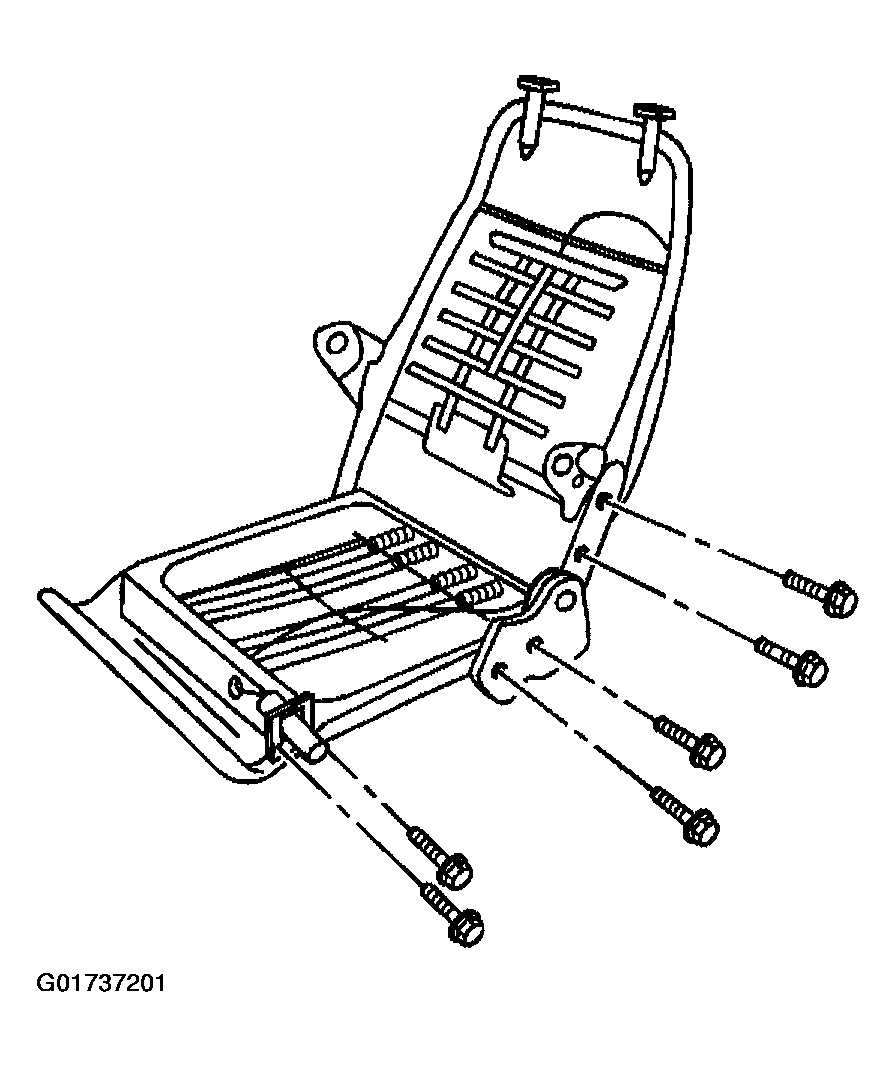

- Install the seat back hinges to the seat frame.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the bolts that retain the seat back hinges to the seat back hinges to the seat back frame and to the seat cushion frame.
Tighten
Tighten the bolts that retain the seat back hinges to the seat back frame and the seat cushion frame to 30 N.m (22 ft lbs).
- Install the bolts in the locations noted during disassembly.
- Install seat cover and pad. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury) or Seat Back Cover and Pad Replacement - Front (Luxury Y91) and Seat Cushion Cover Replacement - Front (All Except Luxury) or Seat Cushion Cover Replacement - Front (Luxury Y91)
- Install the J-hooks that retain the carpet to the seat back and to seat cushion frame and to the corners of the seat cushion cover.
- Install the armrest. Refer to Armrest Replacement - Front Seat (All Except Luxury) or Armrest Replacement - Front Seat (Luxury Y91) or Armrest Replacement - Rear Seat (All Except Luxury) or Armrest Replacement - Rear Seat (Luxury Y91) .
- Install the bucket seat to the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury) or Seat Replacement - Bucket (Luxury Y91) .
