Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bench seat to the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)  .
  2. Remove the rear seat headrest. Refer to Head Restraint Replacement (Luxury (Y91)) .
  3. Remove the rear seat armrests. Refer to Armrest Replacement - Rear Seat (All Except Luxury)  or Armrest Replacement - Rear Seat (Luxury Y91)  .
  4. Remove the J-hook along the bottom edge of the seat back.
  5. Separate the J-hook fasteners that retain the seat back cover to the pad along the seat back break line.
  6. Remove the seat back cover and pad from the seat back.

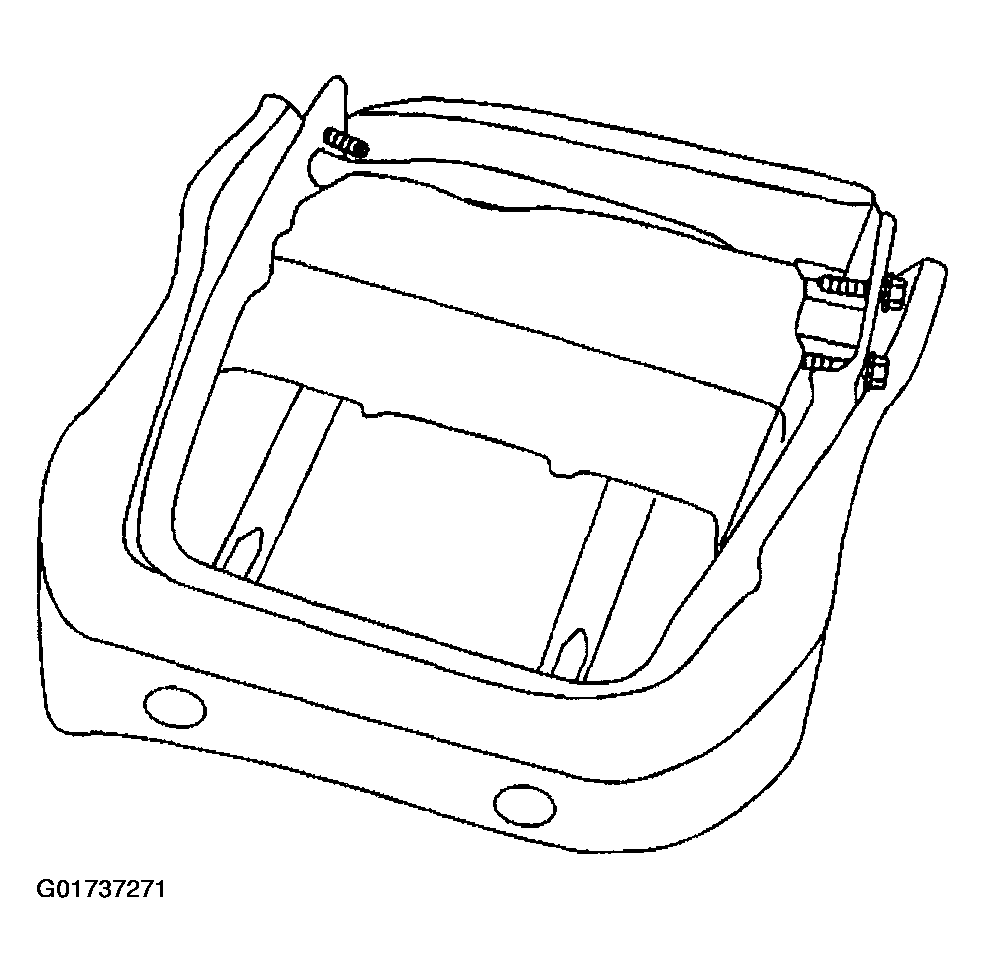

Fig 1: Removing Rear Seat Back Cover & Pad (Luxury Y91)
G01737271Courtesy of GENERAL MOTORS CORP.
