Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .
  2. Place the seat upside down on a clean, protected surface.
  3. Disconnect the electrical connectors.
  4. Remove the drive cables from the motor.
  5. Use the drill bit in order to remove the retaining rivets.
  6. Remove the motor from the motor support (2).

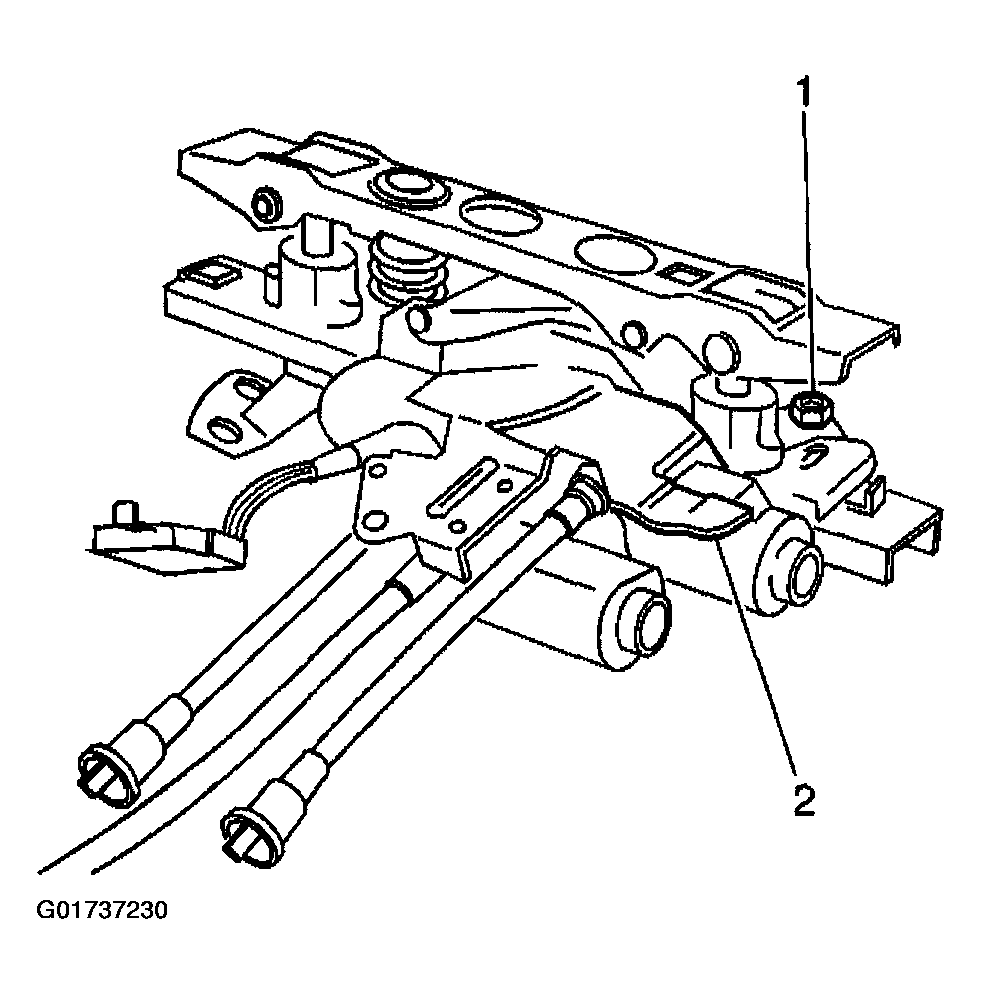

Fig 1: Removing Seat Adjuster Motor - Front (All Except Luxury)
G01737230Courtesy of GENERAL MOTORS CORP.
