Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the motor to the motor support (2).
  2. Secure the motor with a nut (1) and a bolt.
  3. Install the drive cables to the motor.
  4. Connect the electrical connectors to the motor.
  5. Install the seat. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)

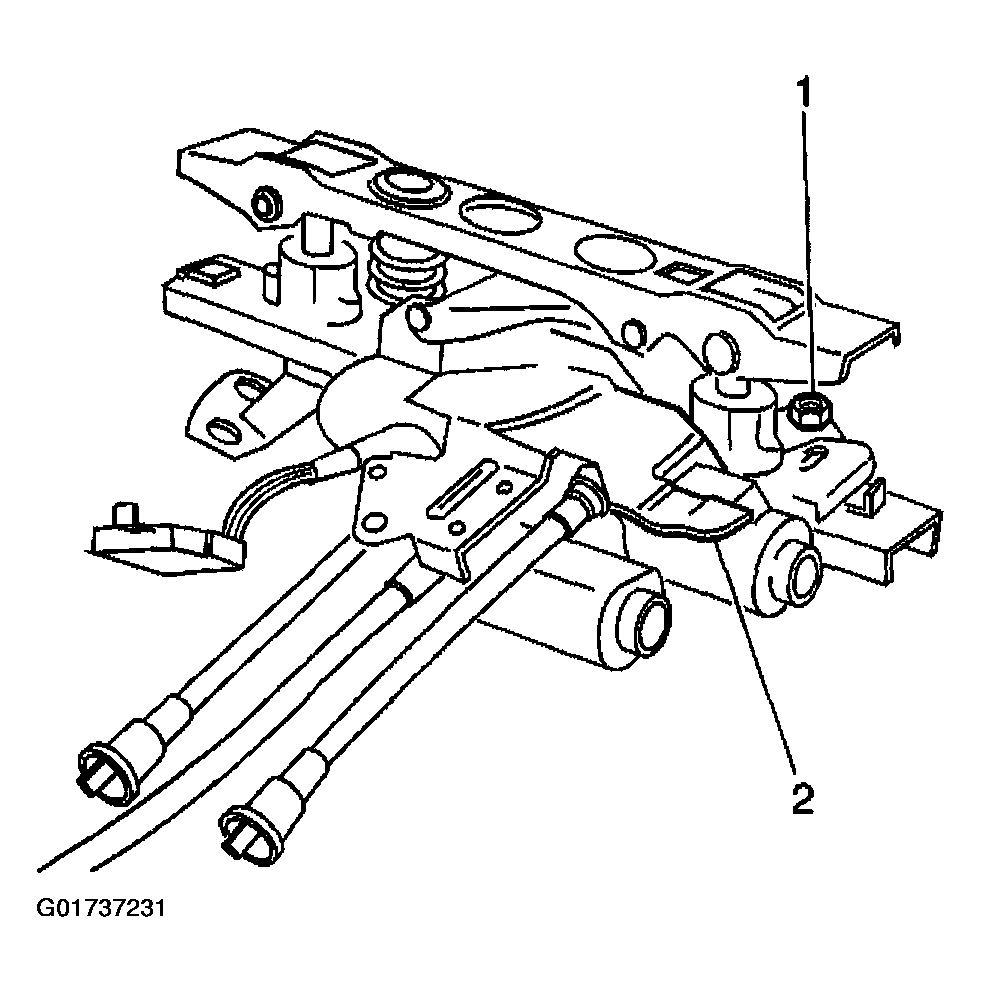

Fig 1: Installing Seat Adjuster Motor - Front (All Except Luxury)
G01737231Courtesy of GENERAL MOTORS CORP.
