Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar support knob to the seat.
  2. Install the lumbar support knob retaining clip.
  3. Rotate the knob in order to thread the clip from the outside of the trim cover to the inside of the seat cushion cover.

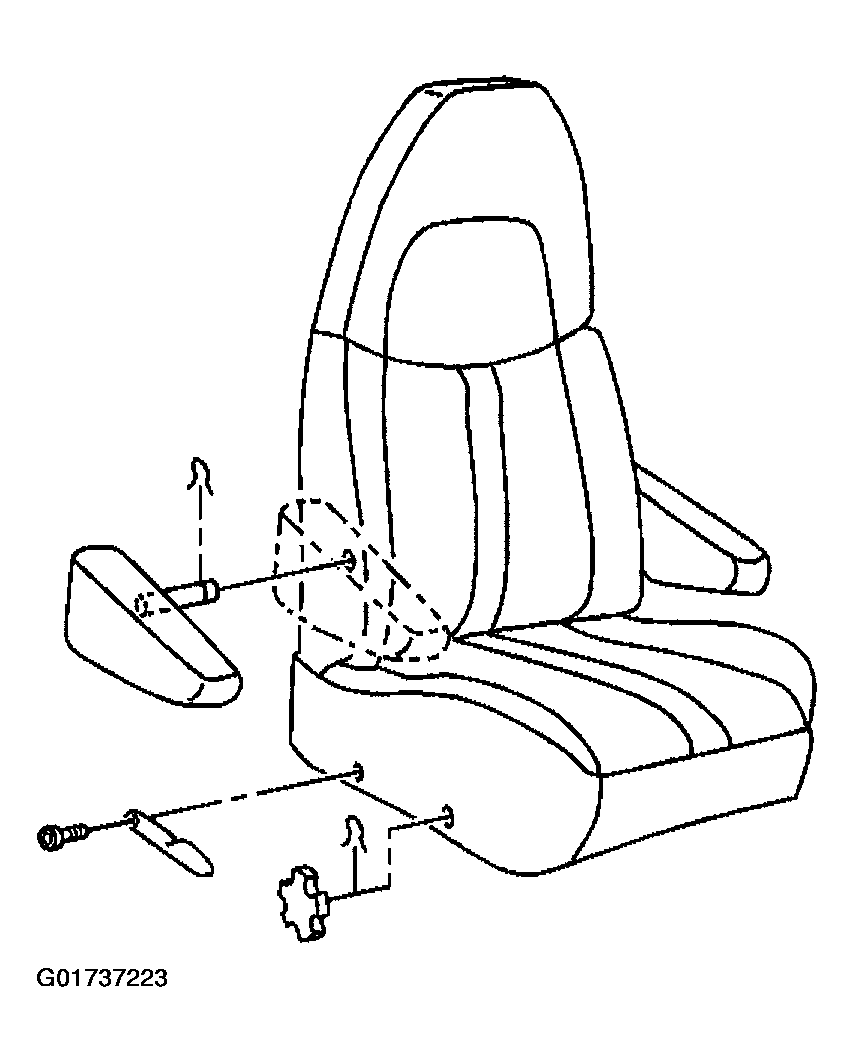

Fig 1: Installing Lumbar Support Knob (Luxury Y91)
G01737223Courtesy of GENERAL MOTORS CORP.
