Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headrest bushings by pressing the bushings into the seat back frame until the retaining tabs snap into place.
  2. Install the seat back trim cover and pad assembly. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .

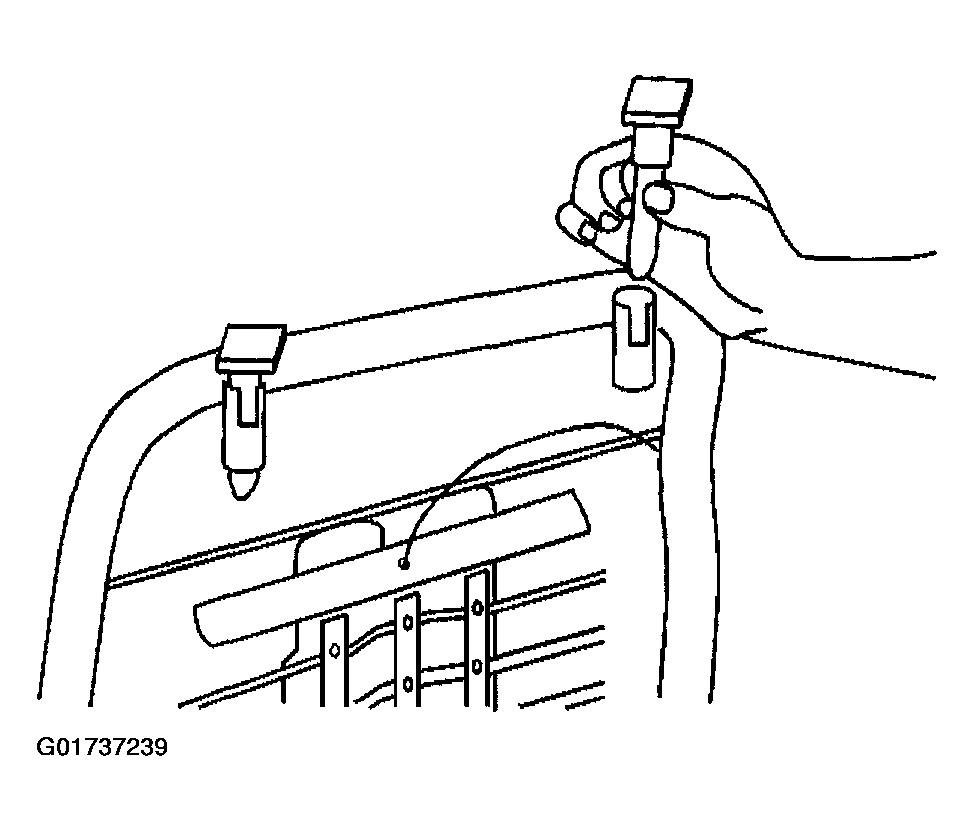

Fig 1: Installing Headrest Bushing To Seat Back Frame
G01737239Courtesy of GENERAL MOTORS CORP.
