Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the bottom edge of the seatback cover. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .
  2. Use a small bladed tool in order to release the clip (1) that retains the armrest to the seatback (2).
  3. Pull the armrest (3) from the seatback.

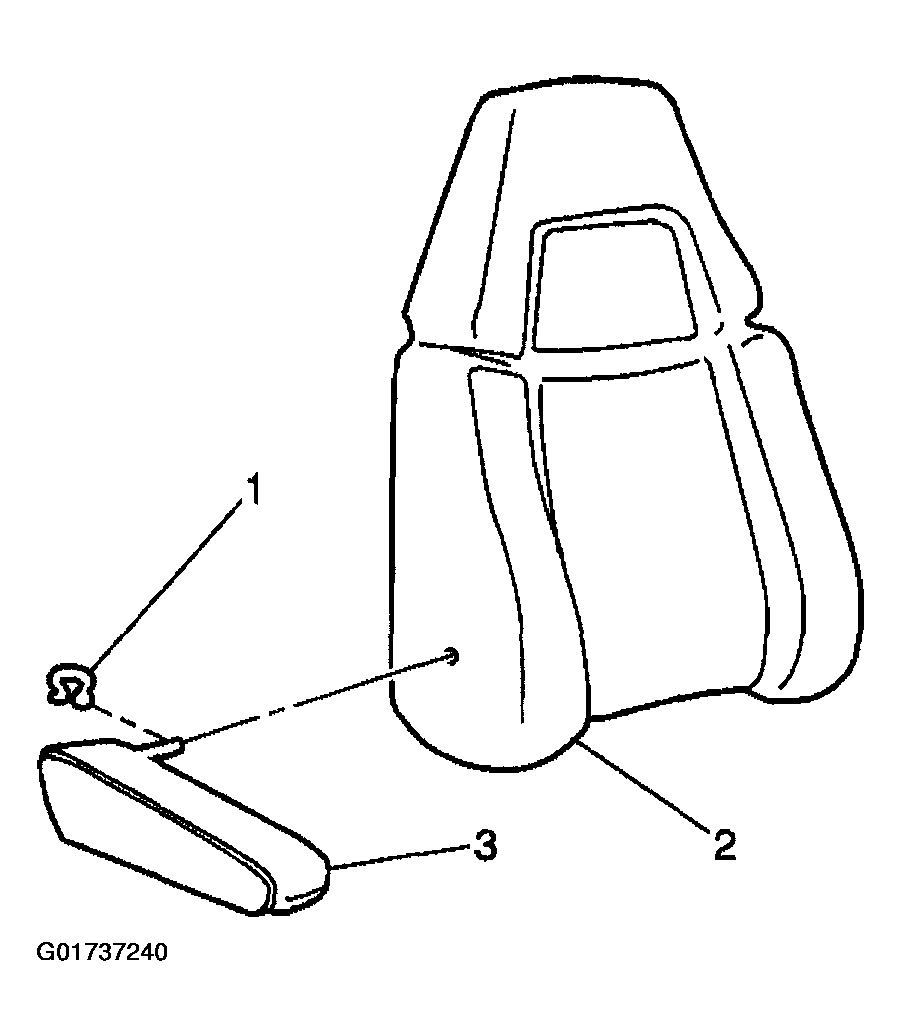

Fig 1: Releasing Clip Retaining Armrest To Seatback
G01737240Courtesy of GENERAL MOTORS CORP.
