Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Rear Door - Left  or Trim Panel Replacement - Rear Door - Right  .
  2. Remove the electrical connectors (5) from the lock and the rear door speakers (if equipped).
  3. Remove the wiring harness retainers (3) from the door.

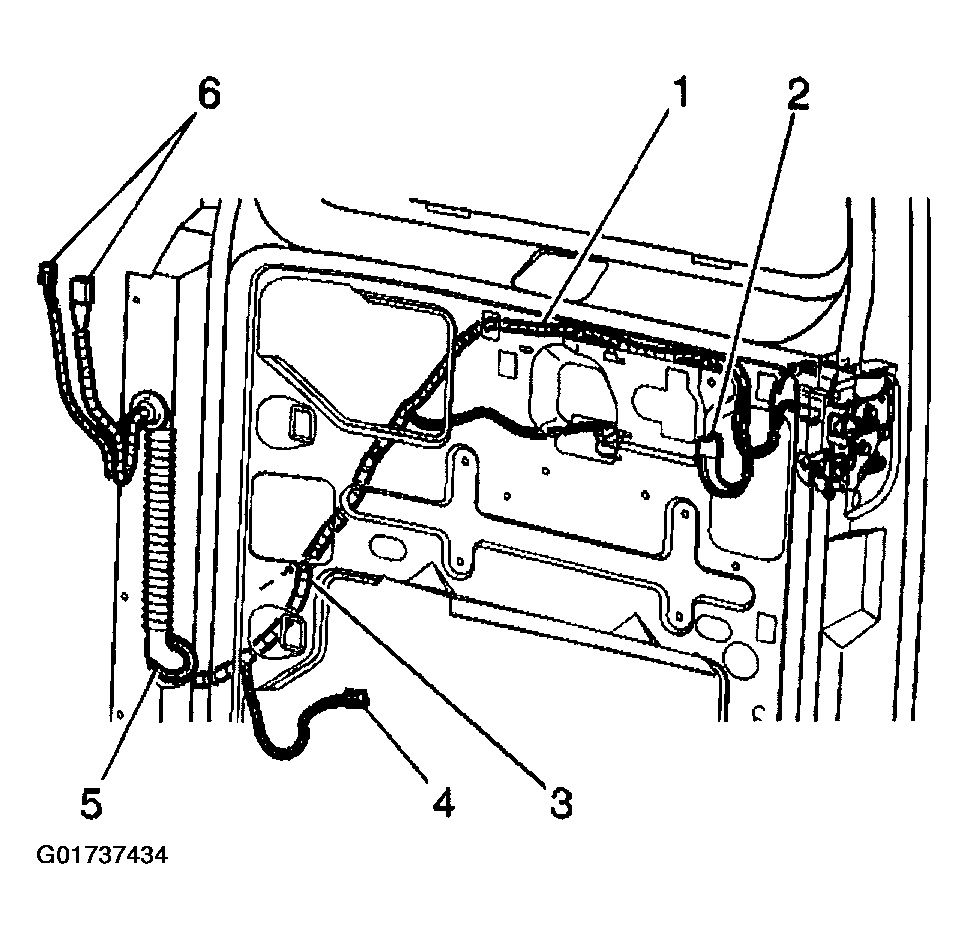

    Fig 1: Removing Electrical Connectors & Wiring Harness Retainers
    G01737434Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiring harness conduit from the door.

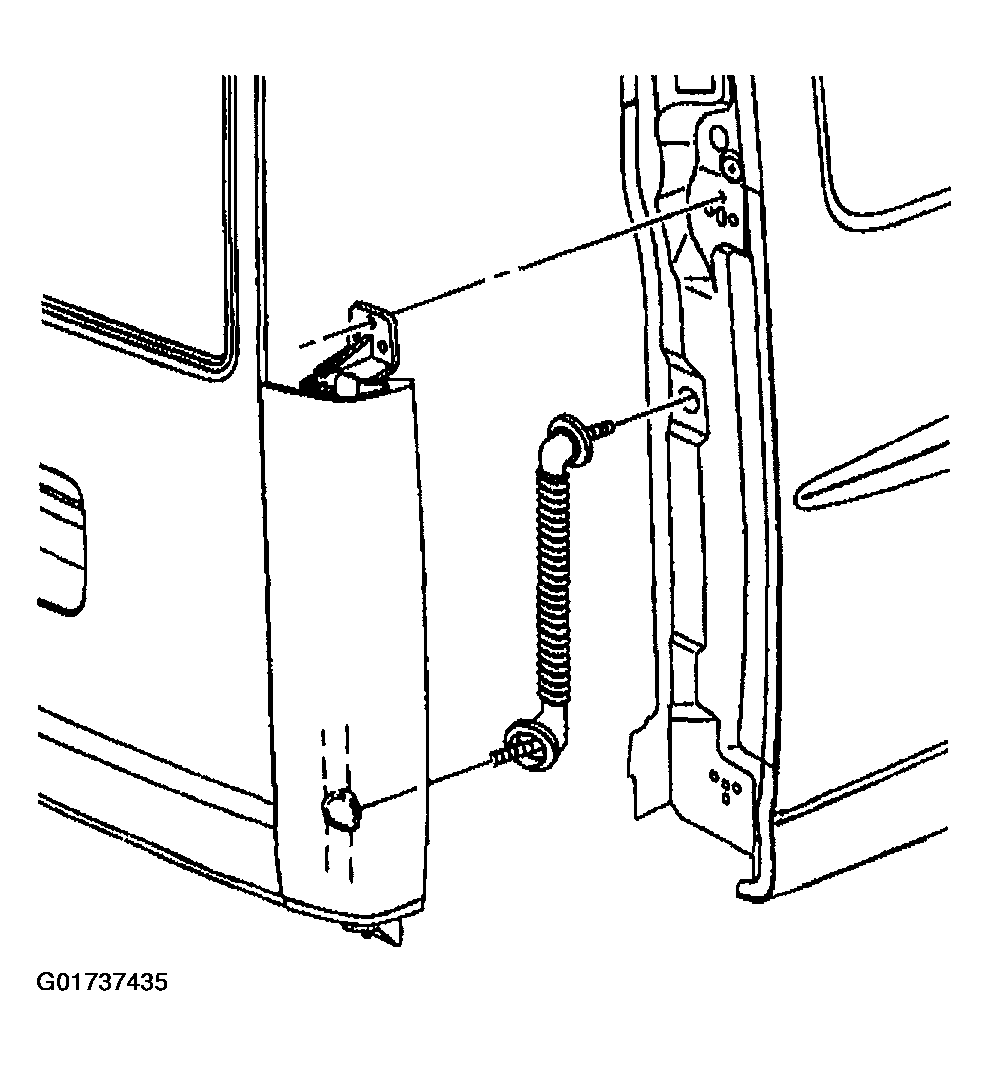

    Fig 2: Removing Wiring Harness Conduit
    G01737435Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiring harness from the door.

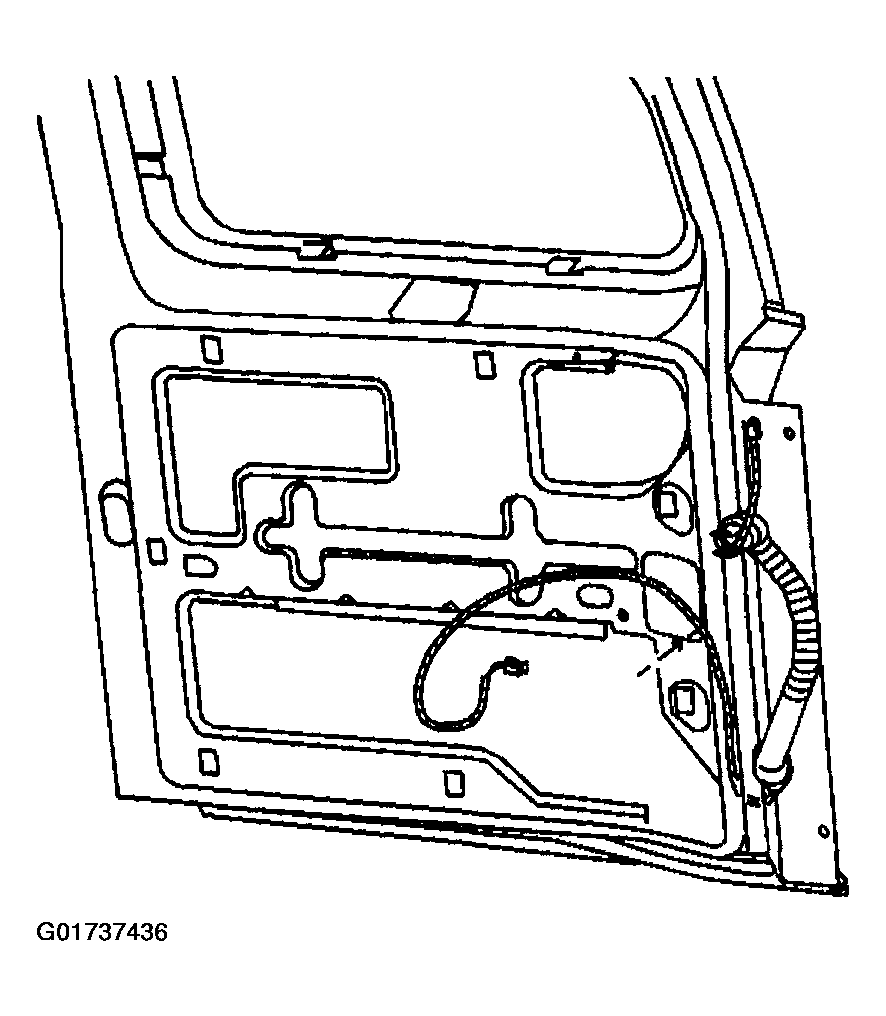

    Fig 3: Removing Wiring Harness
    G01737436Courtesy of GENERAL MOTORS CORP.
