Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiring harness to the door.

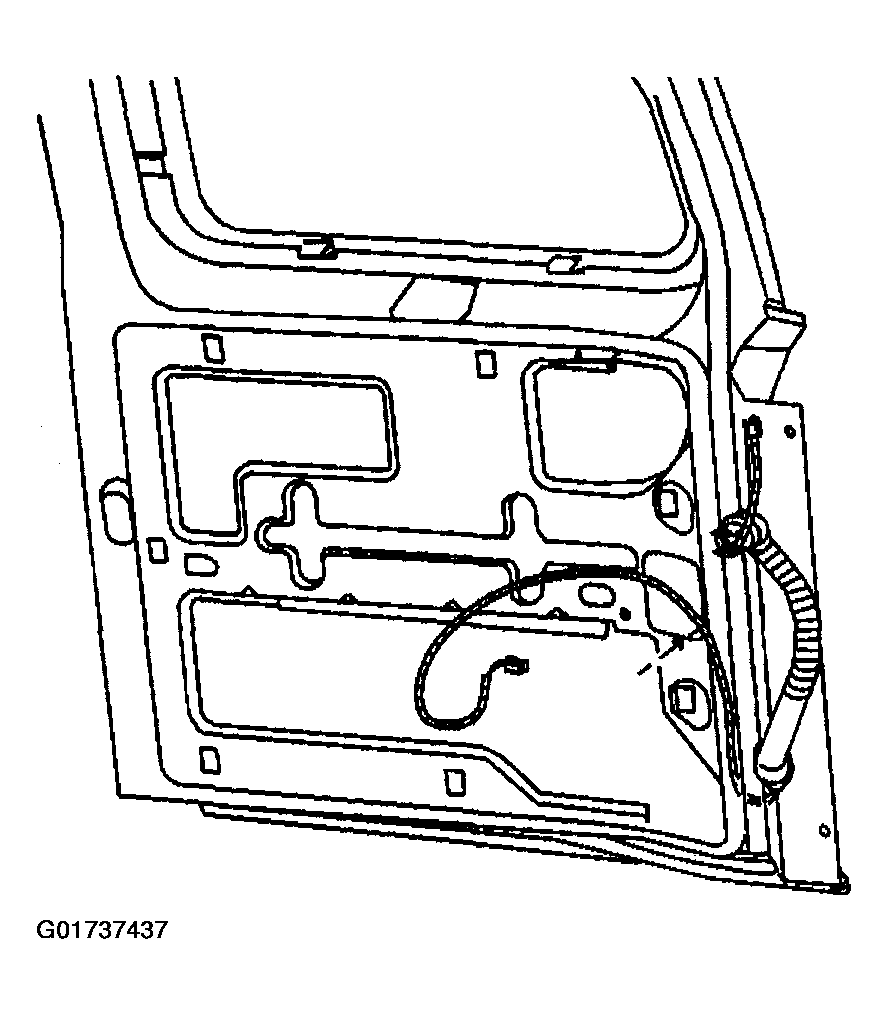

    Fig 1: Installing Wiring Harness
    G01737437Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness conduit to the door.

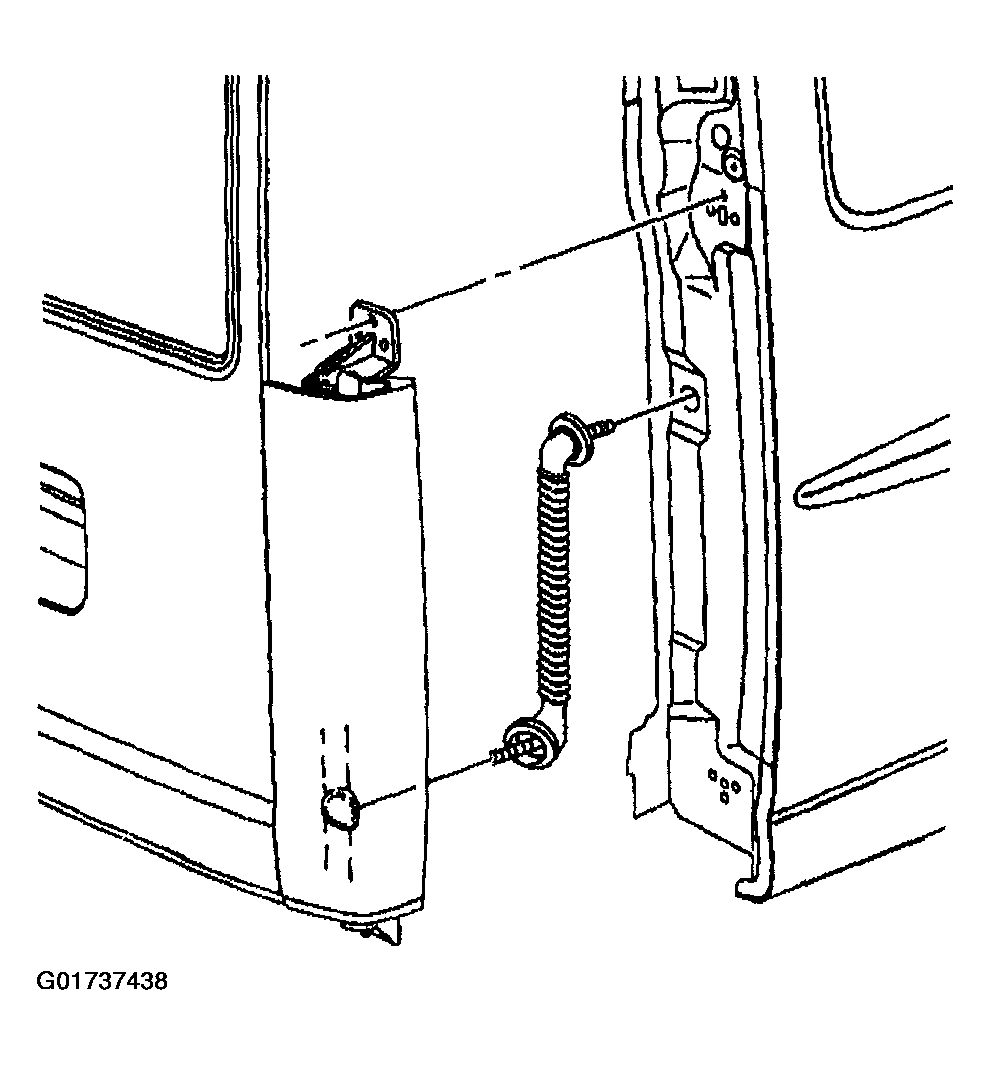

    Fig 2: Installing Wiring Harness Conduit
    G01737438Courtesy of GENERAL MOTORS CORP.
  3. Install the wiring harness retainers (3) to the door.
  4. Install the electrical connectors (5) to the lock and the rear door speakers (if equipped).
  5. Install the rear door trim panel. Refer to Trim Panel Replacement - Rear Door - Left  or Trim Panel Replacement - Rear Door - Right  .

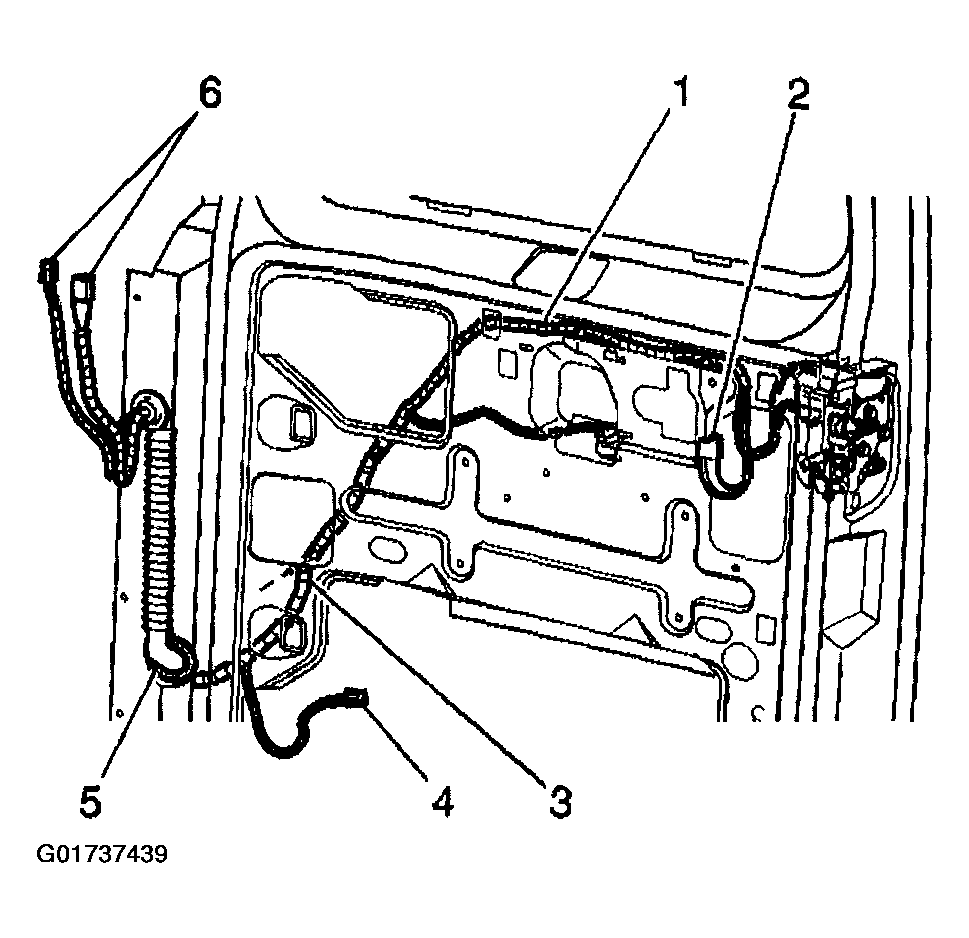

    Fig 3: Installing Wiring Harness Retainers & Electrical Connectors
    G01737439Courtesy of GENERAL MOTORS CORP.
