Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left side rear door upper weather-strip to the door.
  2. Press the retainers in the left side rear door upper weather-strip into the holes in the door.

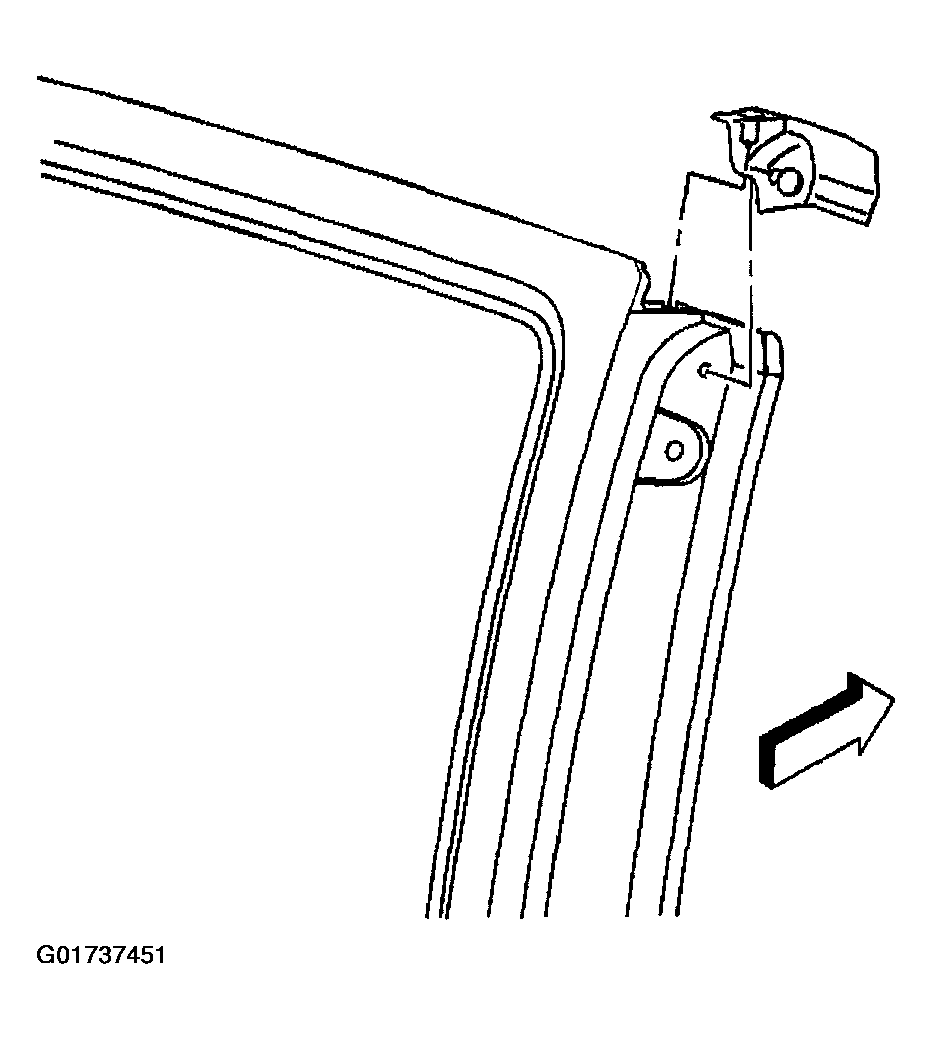

    Fig 1: Installing Left Rear Door Weatherstrip (Upper)
    G01737451Courtesy of GENERAL MOTORS CORP.
