Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left rear door weatherstrip to the left rear door.
  2. Press the retainers in the left rear door weatherstrip into the holes in the left rear door.

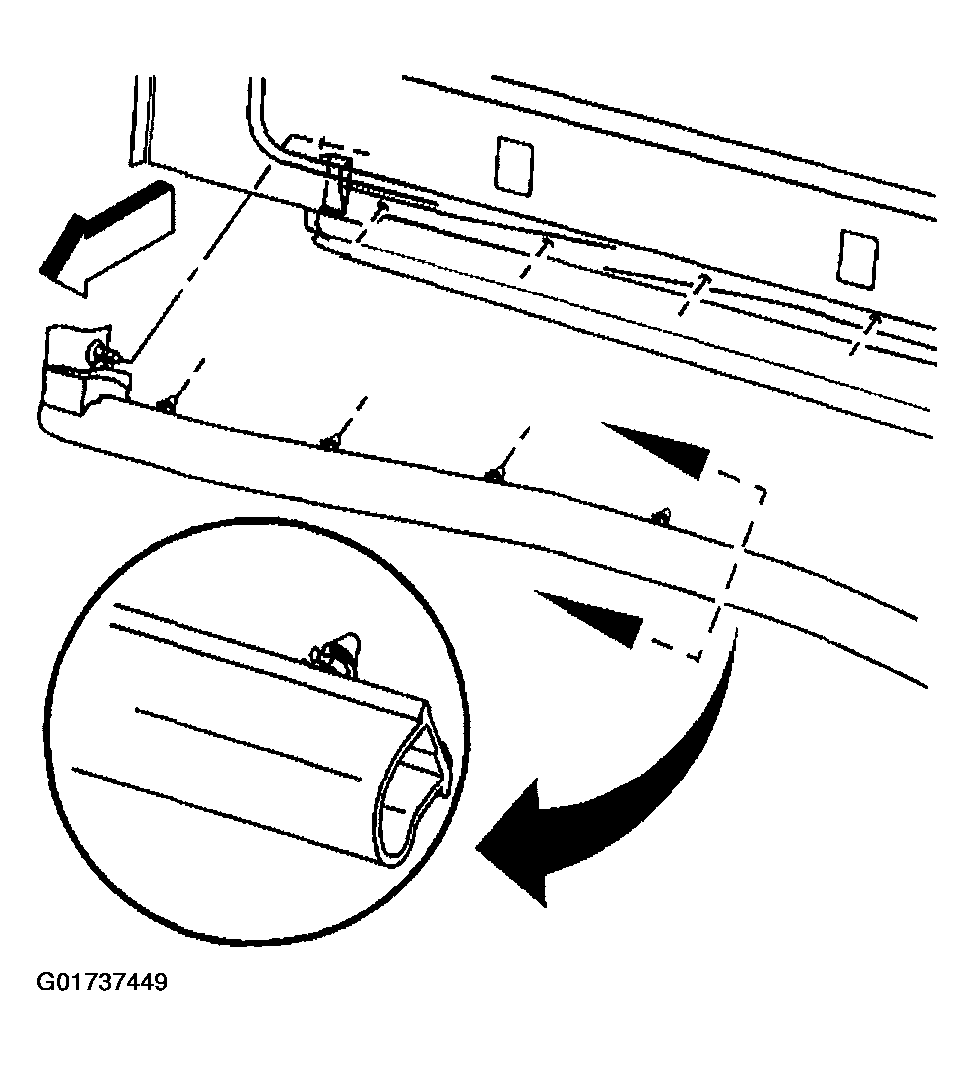

    Fig 1: Installing Left Rear Door Weatherstrip (Lower)
    G01737449Courtesy of GENERAL MOTORS CORP.
