Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on the right side rear door trim panel with the slots in the door.
  2. Lower the right side rear door trim panel into place.
  3. Align the tabs on the right side rear door trim panel with the retaining clips around the window opening.
  4. Press the right side rear door trim panel in order to engage the retaining clips.
  5. Install the right side rear door trim plate to the right side rear door.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  6. Install the screws in order to retain the door trim plate to the right side rear door.

    Tighten

    Tighten the screws that retain the right side rear door trim plates to 2 N.m (18 lb in).

  7. Install the inside door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE .

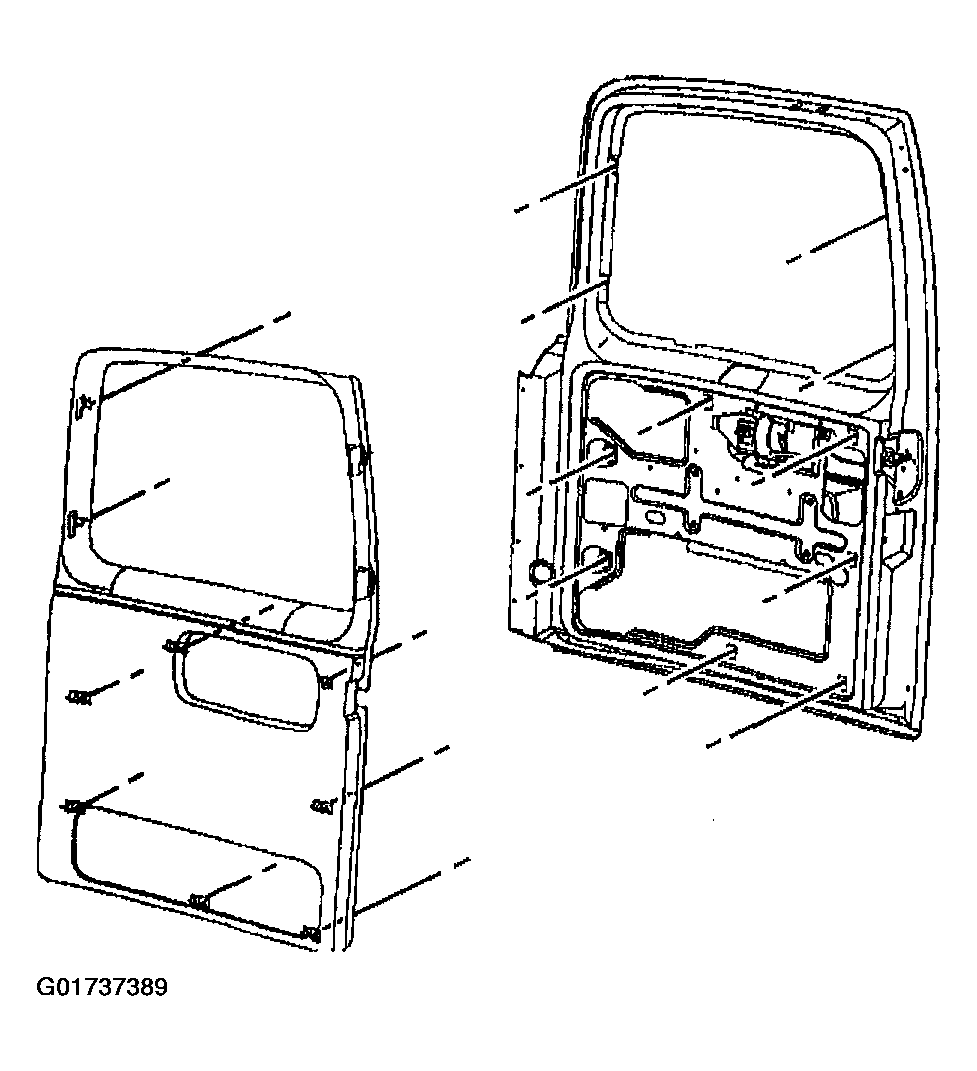

    Fig 1: Installing Trim Panel (Rear Door - Right)
    G01737389Courtesy of GENERAL MOTORS CORP.
