Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tabs on the left side rear door trim panel with the slots in the door.
  2. Lower the left side rear door trim panel into place.
  3. Align the tabs on the left side rear door trim panel with the retaining clips around the window opening.
  4. Press the left side rear door trim panel into place in order to engage the retaining clips.

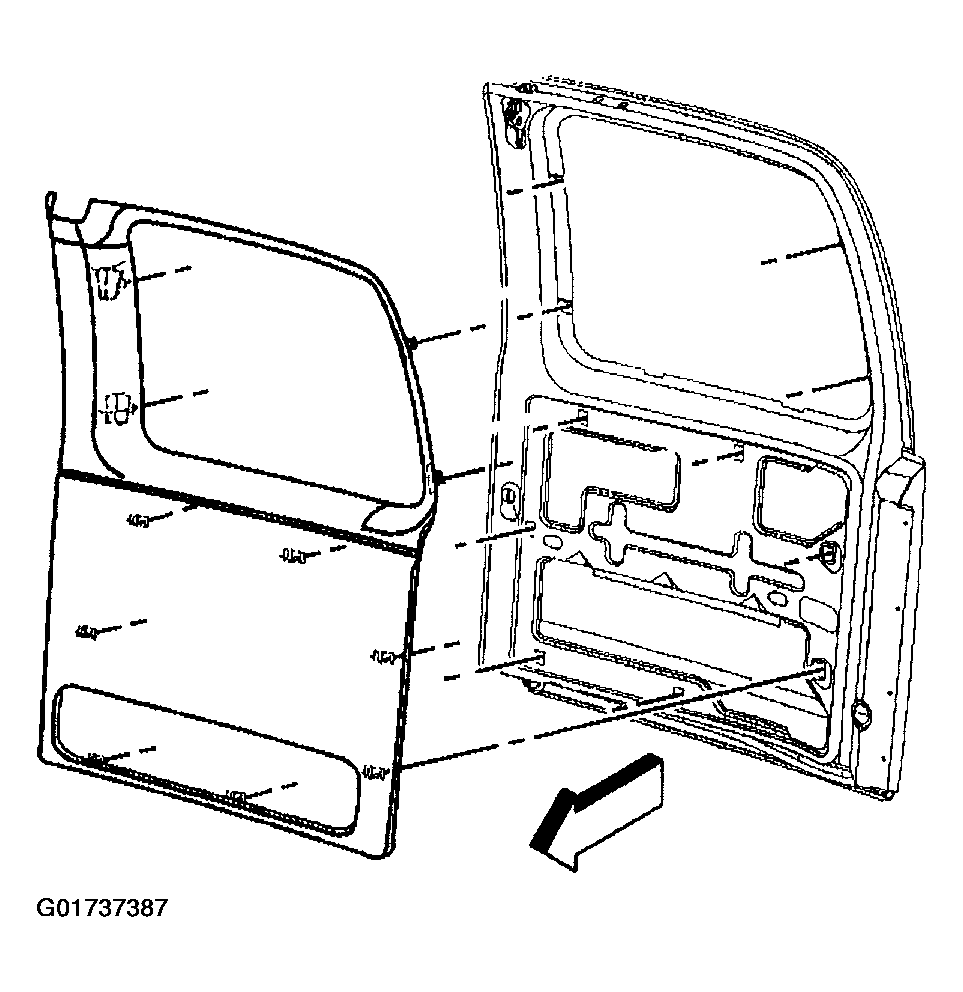

    Fig 1: Installing Left Side Rear Door Trim Panel
    G01737387Courtesy of GENERAL MOTORS CORP.
