Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tail lamp, Back Body Opening applique. Refer to Tail Lamp, Back Body Opening Applique Replacement - Side .
  2. Remove the center high mounted stop lamp lens. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT .

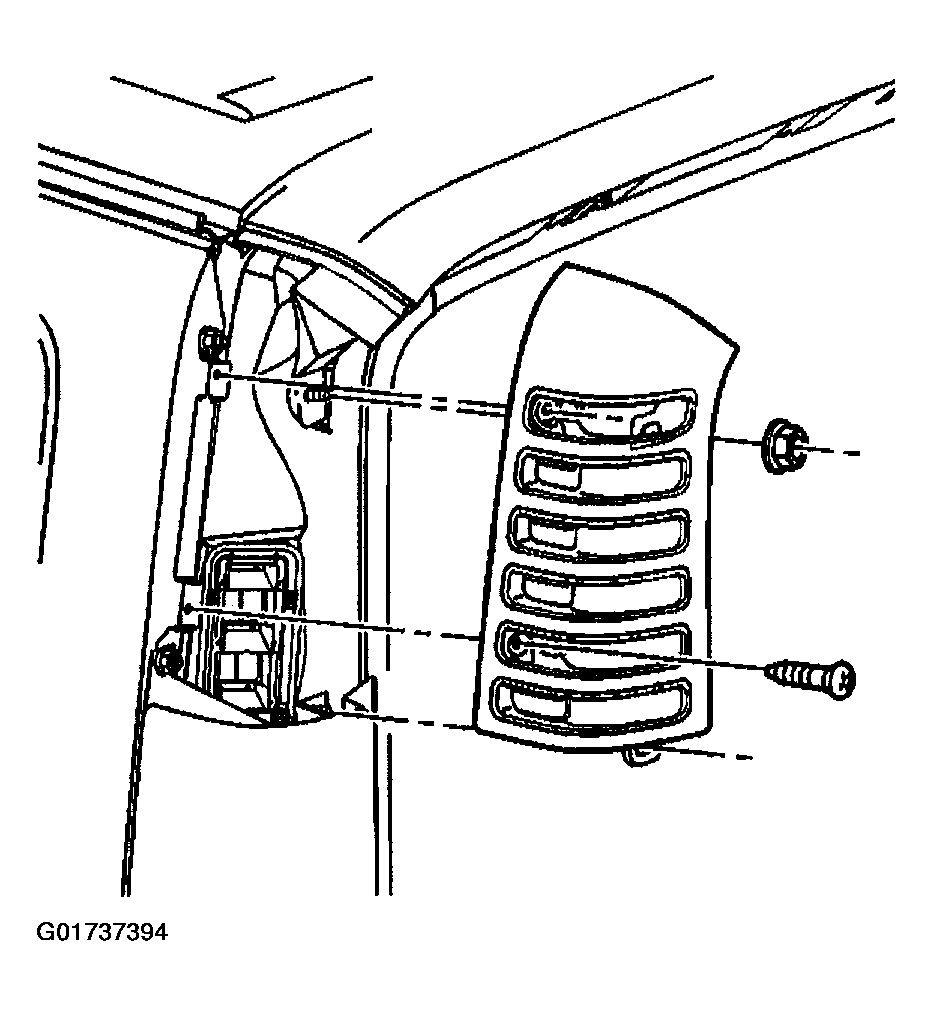

    Fig 1: Removing Tail Lamp, Back Body Opening Applique
    G01737394Courtesy of GENERAL MOTORS CORP.
  3. Remove the nuts that retain the center high mounted stop lamp applique to the body.
  4. Remove the screws that retain the center high mounted stop lamp applique to the body.
  5. Remove the center high mounted stop lamp applique from the vehicle.

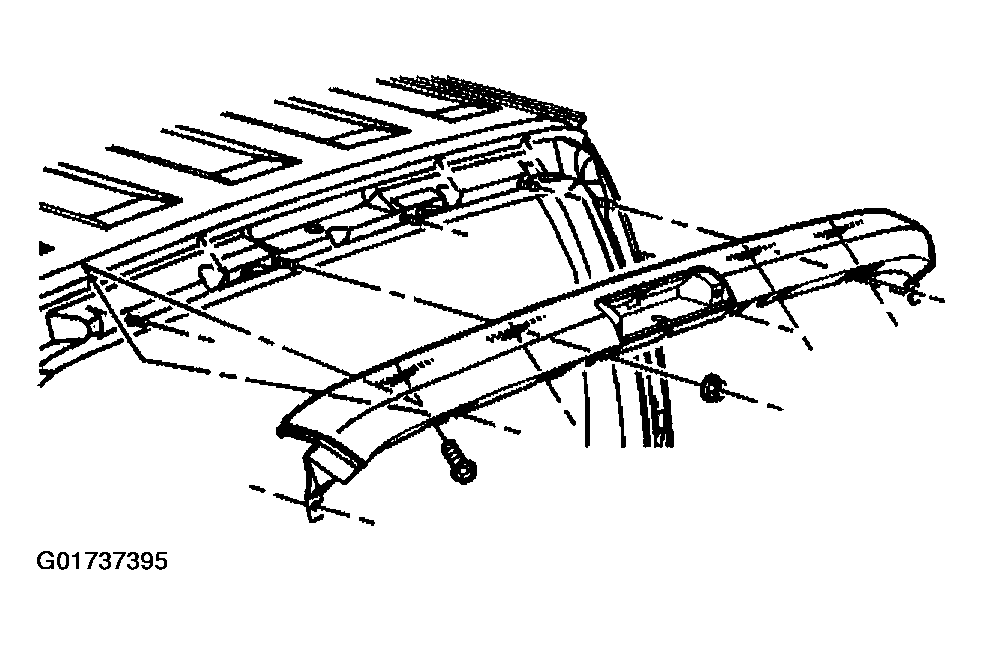

    Fig 2: Removing Center High Mounted Stop Lamp Applique
    G01737395Courtesy of GENERAL MOTORS CORP.
