Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push pin rivets that retain the wheel opening molding to the fender extension.
  2. Remove the wheel opening molding from the vehicle.

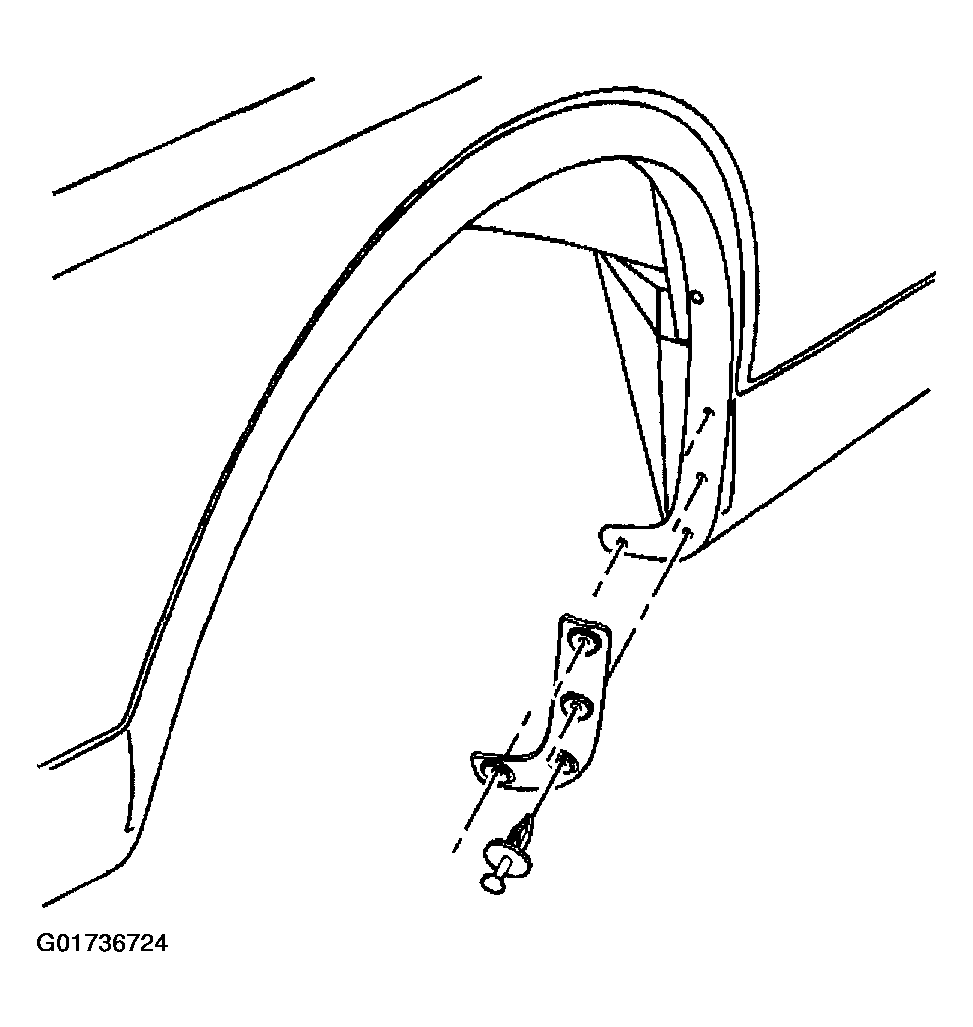

    Fig 1: Removing Push Pin Rivets & Wheel Opening Molding
    G01736724Courtesy of GENERAL MOTORS CORP.
