Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille. Refer to Grille Replacement .
  2. Remove the nuts (1) that retain the emblem to the radiator grille.
  3. Remove the emblem (3) from the radiator grille (2).

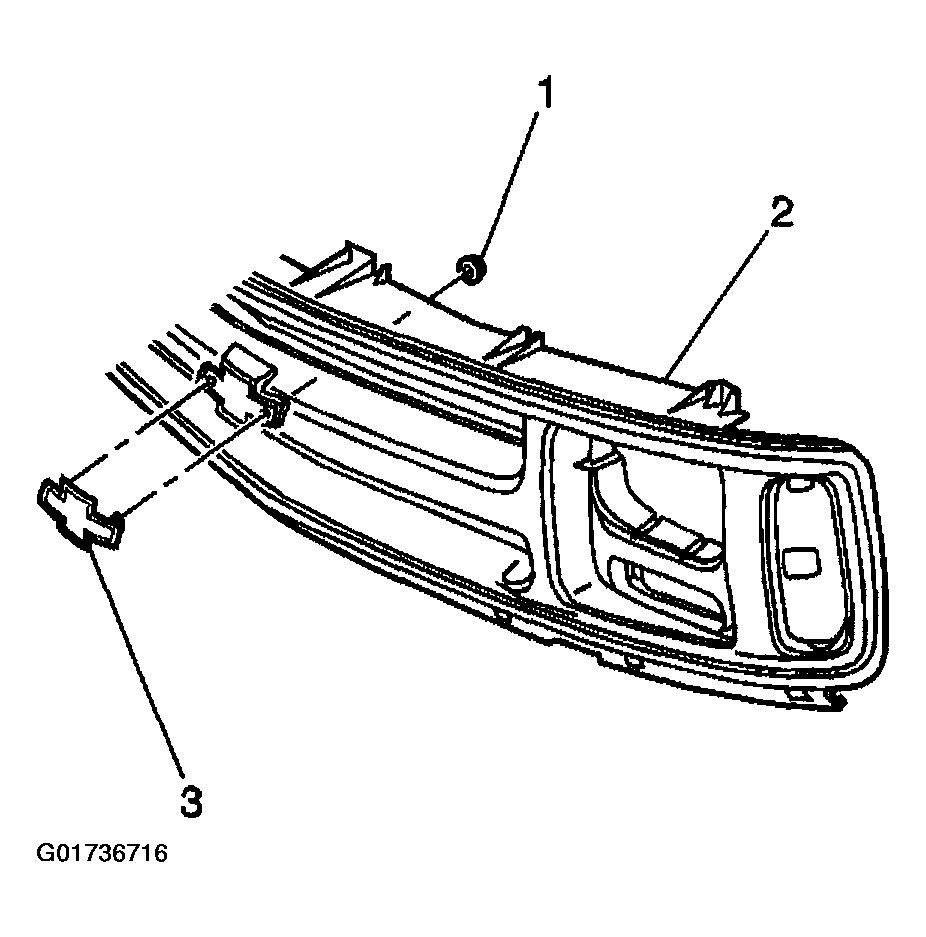

    Fig 1: Removing Nuts & Emblem
    G01736716Courtesy of GENERAL MOTORS CORP.
