Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door upper pillar garnish molding. Refer to Garnish Molding Replacement - Upper Pillar .
  2. Remove the seat belt through the slot in the front lower pillar garnish molding.
  3. Remove the 2 screws from the garnish molding.
  4. Grasp and gently pull the front door lower pillar garnish molding in order to release the retaining clips.
  5. Remove the front door lower pillar garnish molding from the vehicle.
  6. Inspect the front door lower pillar garnish molding for broken or missing retaining clips. Replace the retaining clips as needed.

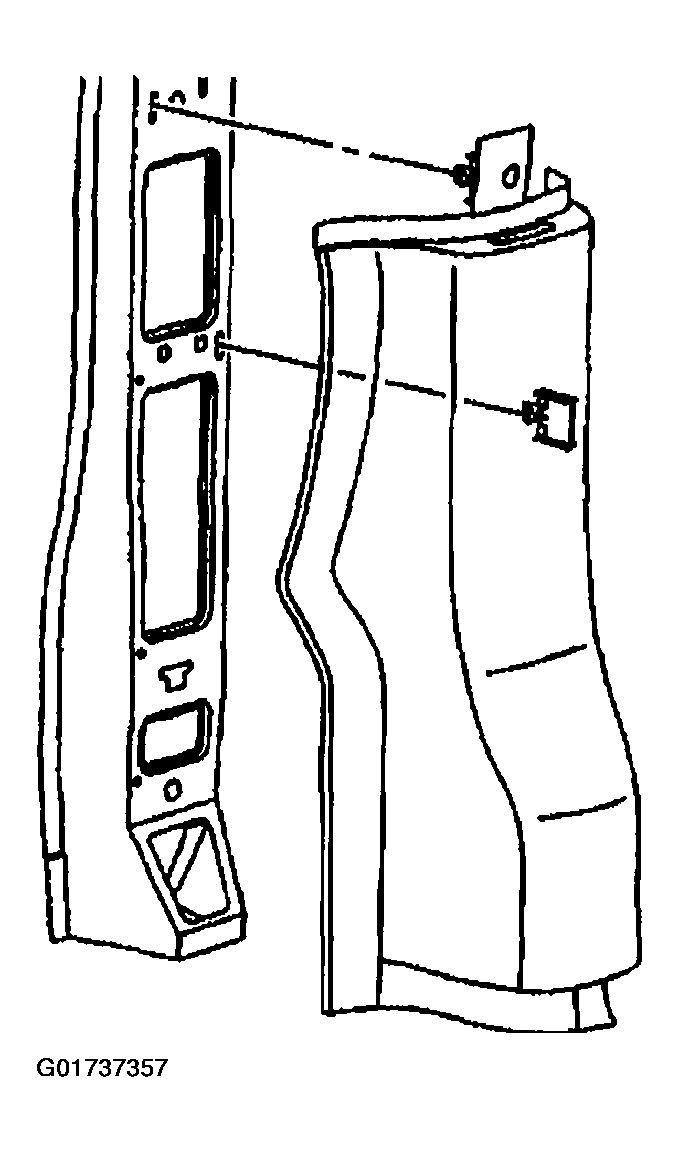

    Fig 1: Removing Front Lower Pillar Garnish Molding
    G01737357Courtesy of GENERAL MOTORS CORP.
