Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side trim panel. Refer to Trim Panel Replacement - Body Side Rear .
  2. Grasp and gently pull the garnish molding in order to disengage the retaining clips.
  3. Remove the body side rear lower garnish molding from the vehicle.
  4. Inspect the body side rear lower garnish molding for broken or missing retaining clips. Replace the retaining clips as needed.

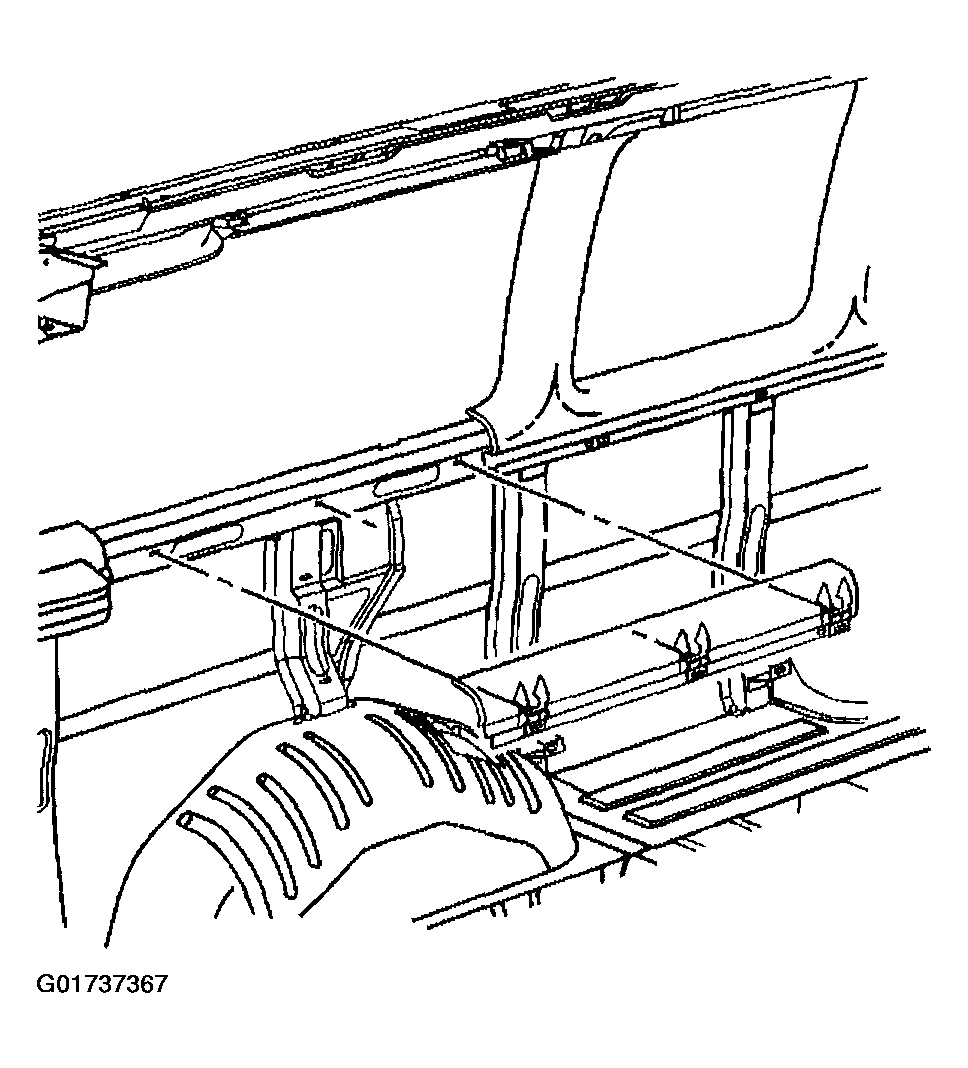

    Fig 1: Removing Body Side Trim Panel
    G01737367Courtesy of GENERAL MOTORS CORP.
