Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners (3) that retain the vehicle speed sensor (VSS) buffer module (1) to the instrument panel carrier.
  2. Remove the VSS buffer module (1) from the instrument panel carrier.
  3. Disconnect the electrical connector (2) from the VSS buffer module (1).
  4. Remove the VSS buffer module (1) from the vehicle.

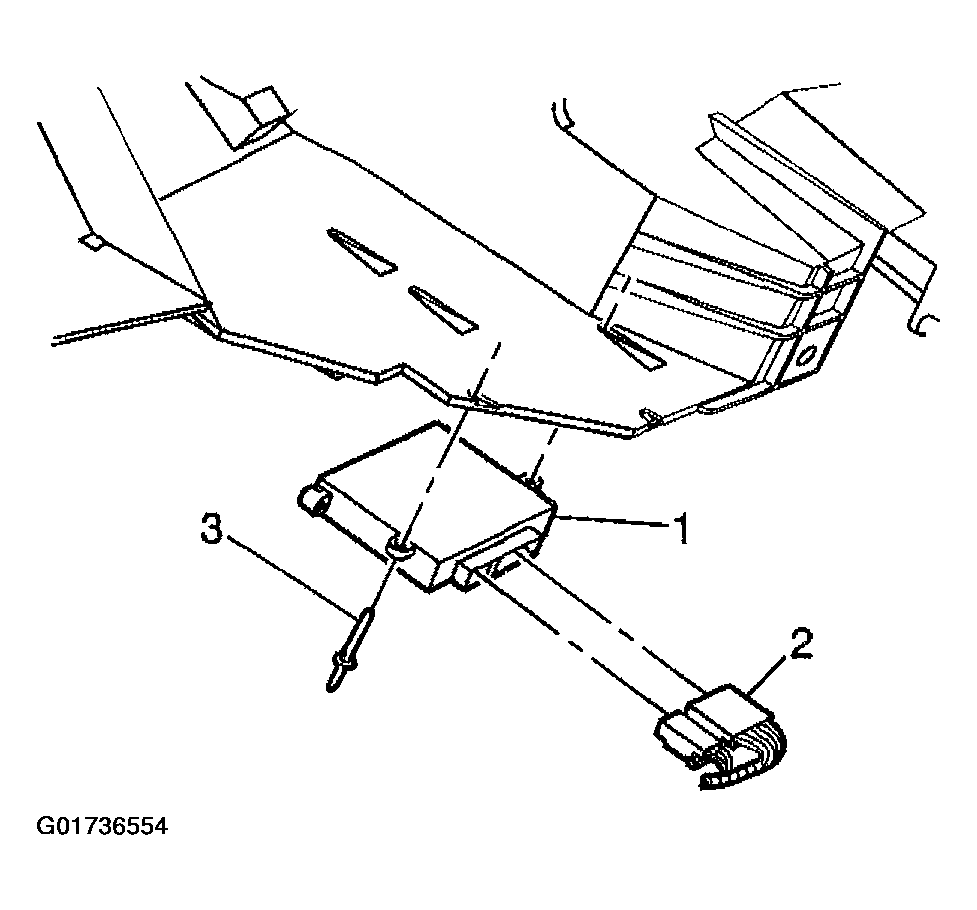

    Fig 1: Removing Vehicle Speed Sensor (VSS) Components
    G01736554Courtesy of GENERAL MOTORS CORP.
