Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the multi-function audio alarm module (2) to the vehicle.
  2. Connect the electrical connector (3) to the multi-function audio alarm module (2).
  3. Connect the multi-function audio alarm module (2) to the retainer (4) on the left inside knee bolster bracket.
  4. Install the instrument panel driver knee bolster panel. Refer to Trim Panel Replacement - Knee Bolster .

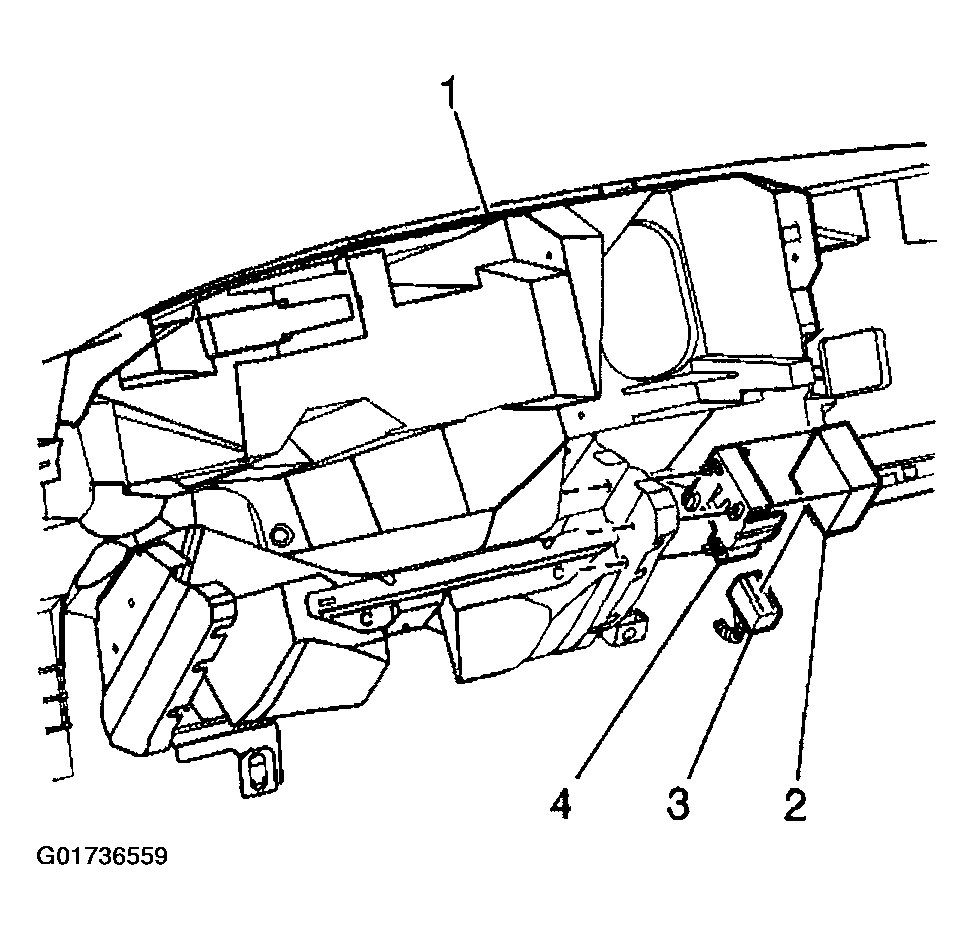

    Fig 1: Connecting & Installing Multi-Function Audio Alarm Module
    G01736559Courtesy of GENERAL MOTORS CORP.
