Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower extension upper trim panel. Refer to Instrument Panel (I/P) Extension Trim Plate Replacement .
  2. Remove the bolts that retain the instrument panel passenger knee bolster to the knee bolster brackets.
  3. Pull on the instrument panel passenger knee bolster in order to disengage the retainers.
  4. Remove the instrument panel passenger knee bolster from the vehicle.
  5. Inspect the instrument panel passenger knee bolster for broken or missing retainers.

    Replace the retainers as needed.

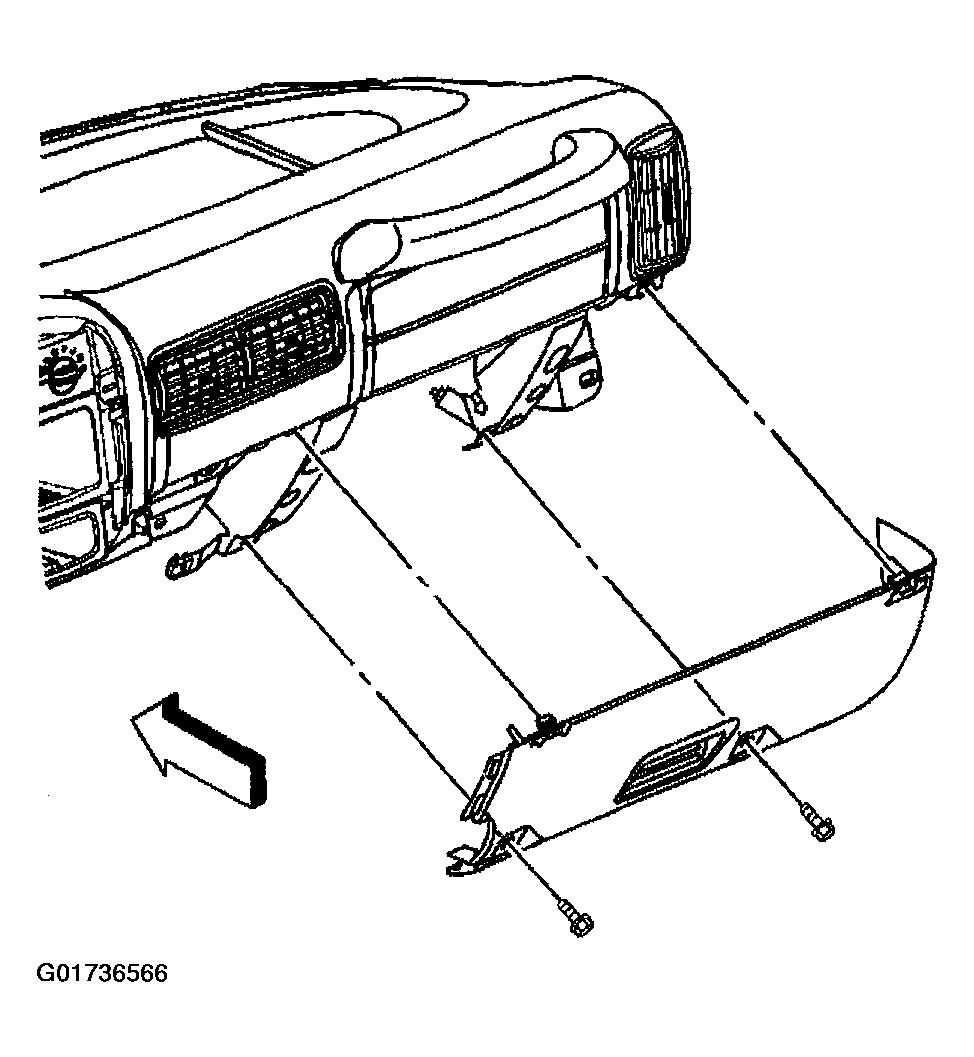

Fig 1: Removing Right Knee Bolster
G01736566Courtesy of GENERAL MOTORS CORP.
