Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the instrument panel cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  3. Tilt the steering column fully down, if equipped with tilt steering.
  4. Remove the screws (2) that retain the instrument cluster to the instrument panel carrier
  5. Remove the instrument cluster (1) from the vehicle.

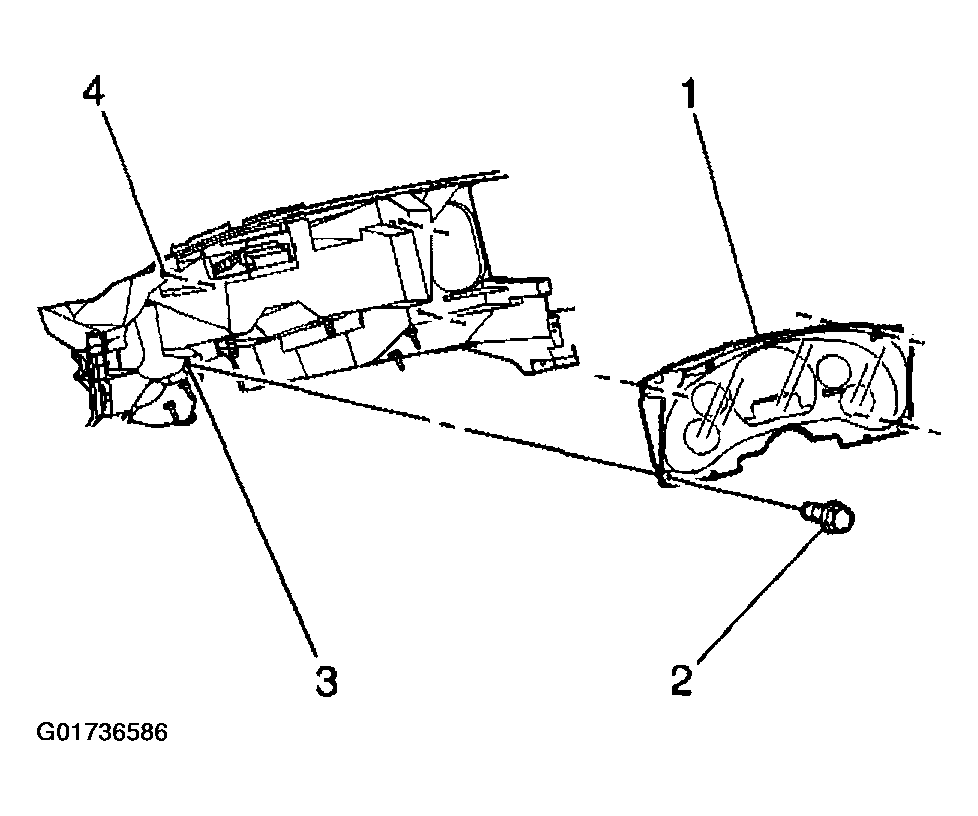

    Fig 1: Removing Instrument Panel Cluster
    G01736586Courtesy of GENERAL MOTORS CORP.
