Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel passenger side knee bolster. Refer to Knee Bolster Replacement - Right .
  2. Remove the passenger supplemental inflatable restraint (SIR). Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .
  3. Remove the bolts that retain the inflatable restraint filler panel to the instrument panel, if not equipped with passenger SIR.
  4. Remove the inflatable restraint filler panel from the instrument panel.
  5. Press the release buttons on the instrument panel assist handle retainers (2).

    Pull the assist handle (1) from the instrument panel.

  6. Remove the assist handle from the vehicle.

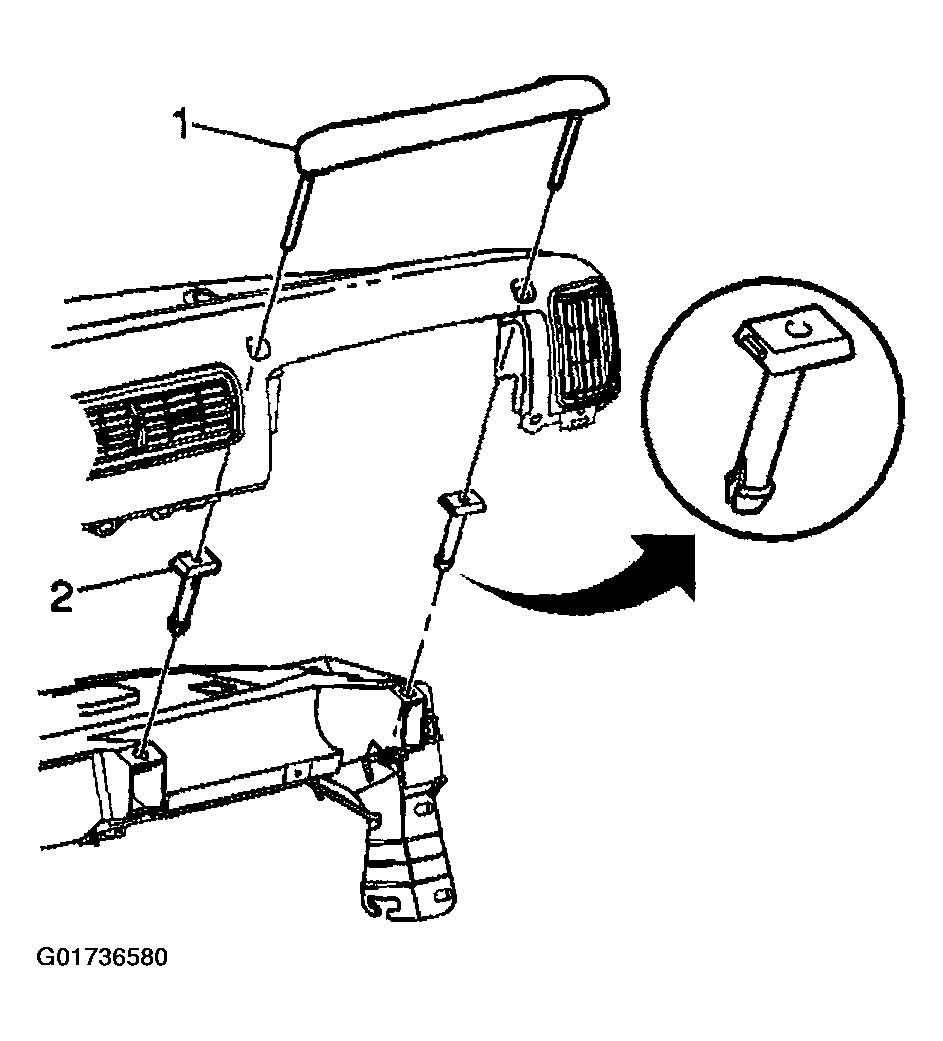

    Fig 1: Removing Instrument Panel Assist Handle
    G01736580Courtesy of GENERAL MOTORS CORP.
