Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield garnish moldings. Refer to WINDSHIELD GARNISH MOLDING REPLACEMENT .
  2. Grasp the defroster grill through the defroster vents and pull rearward in order to disengage the retainers.
  3. Remove the defroster grill from the vehicle.
  4. Inspect the defroster grill for broken or missing retainers, replace the retainers as needed.

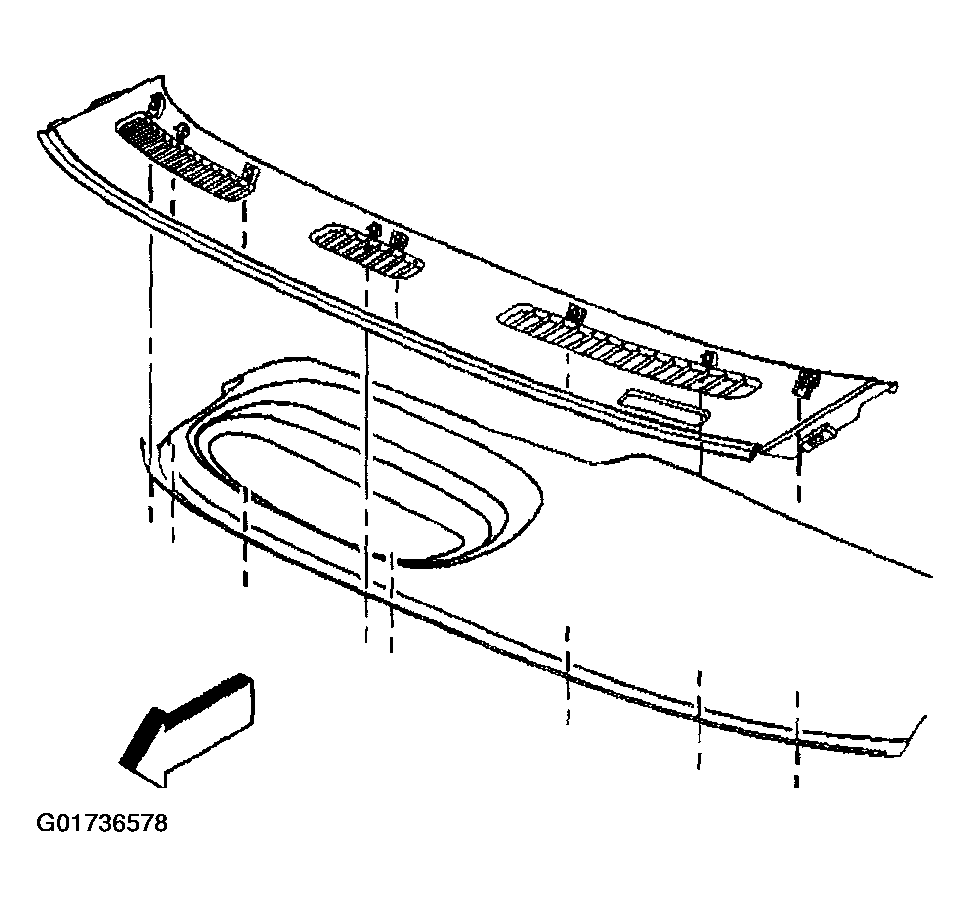

    Fig 1: Removing Defroster Grill
    G01736578Courtesy of GENERAL MOTORS CORP.
