Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the front fog lamp.
  2. Remove the push pin retainers (1) that attach the fog lamp to the mounting bracket (3).
  3. Remove the fog lamp adjuster bolt and the spring (4) from the adjuster nut.
  4. Remove the fog lamp from the fog lamp mounting bracket.
    WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
  5. Use a drill, and the appropriate drill bit in order to remove the fog-lamp bracket rivets (2), if needed.
  6. If necessary, remove the fog lamp mounting bracket.

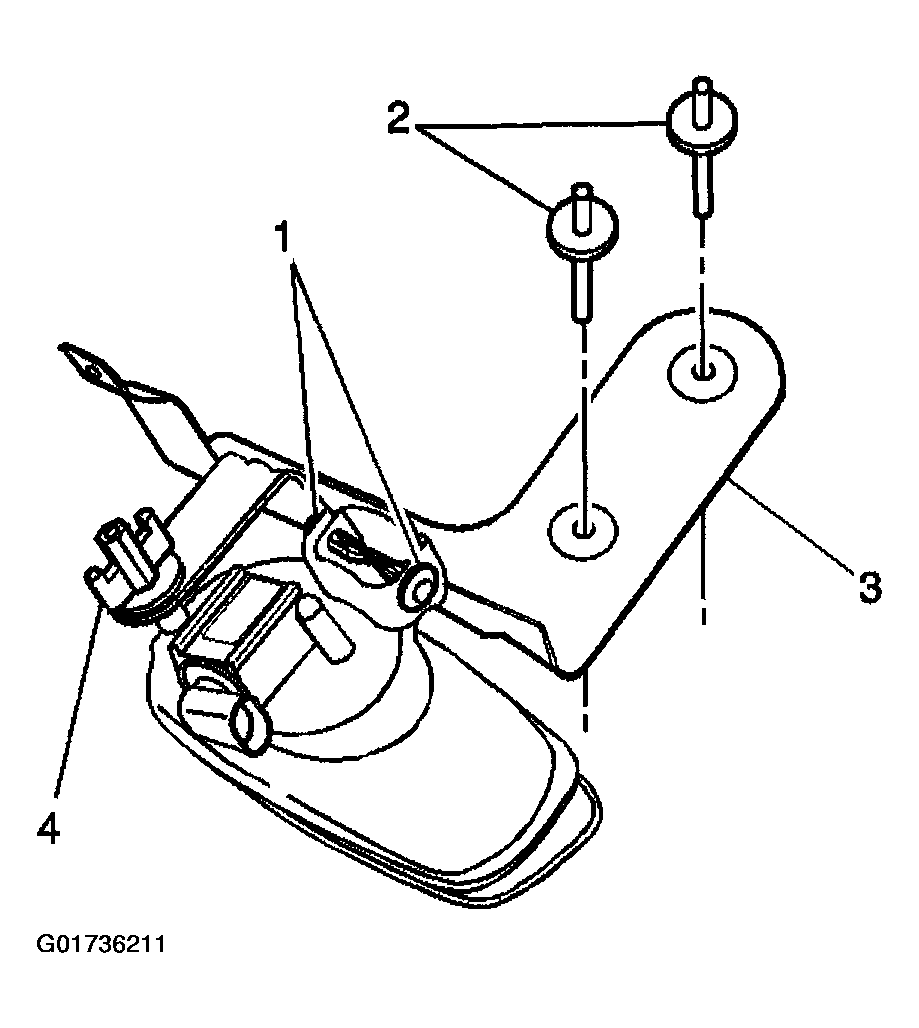

    Fig 1: Removing Push Pin Retainers, Fog Lamp Adjuster Bolt & Spring
    G01736211Courtesy of GENERAL MOTORS CORP.
