Park Lamps Inoperative

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

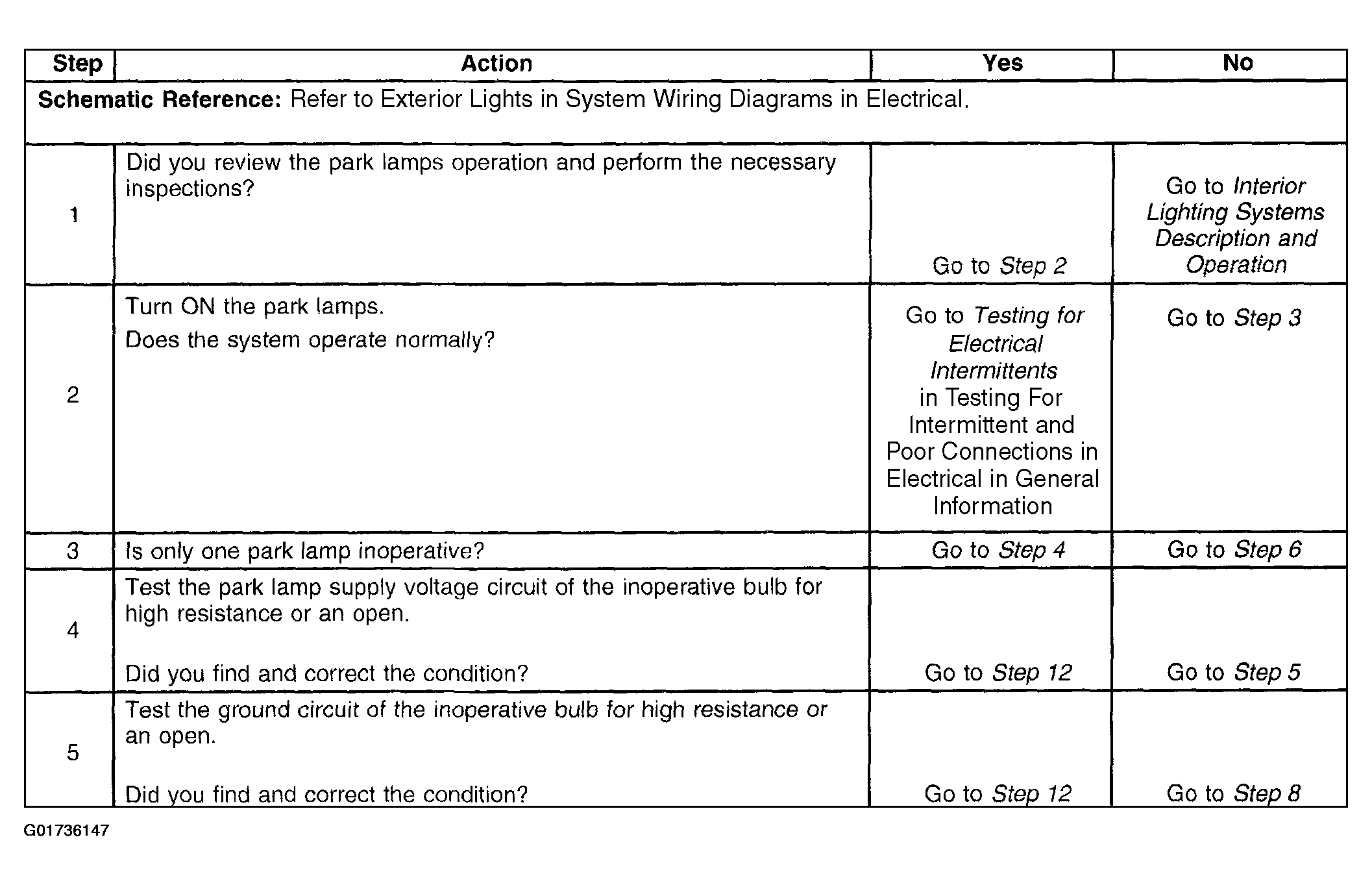

Fig 1: Park Lamps Inoperative (1 Of 2)
G01736147Courtesy of GENERAL MOTORS CORP.

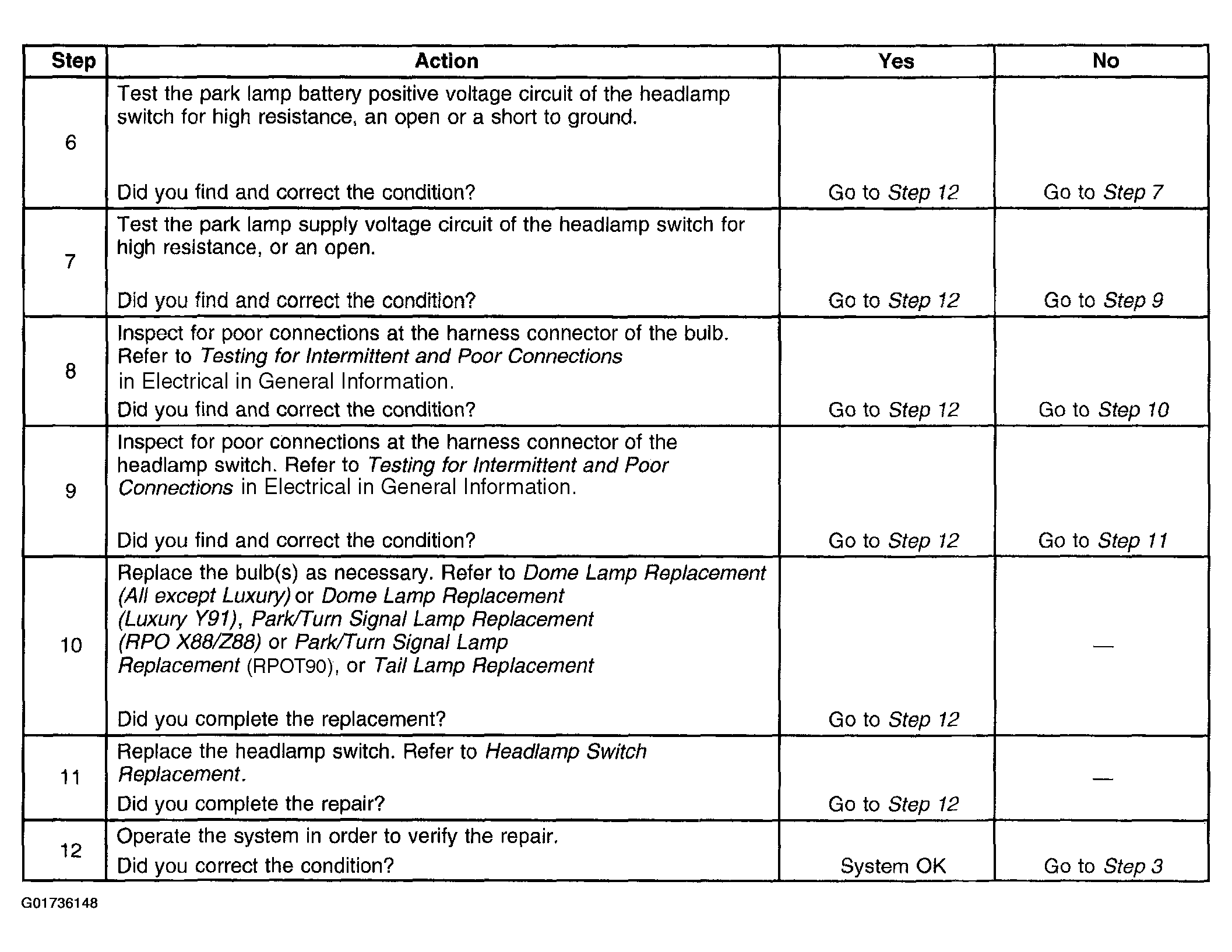

Fig 2: Park Lamps Inoperative (2 Of 2)
G01736148Courtesy of GENERAL MOTORS CORP.
