Daytime Running Lamps (DRL) Inoperative (Export)

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

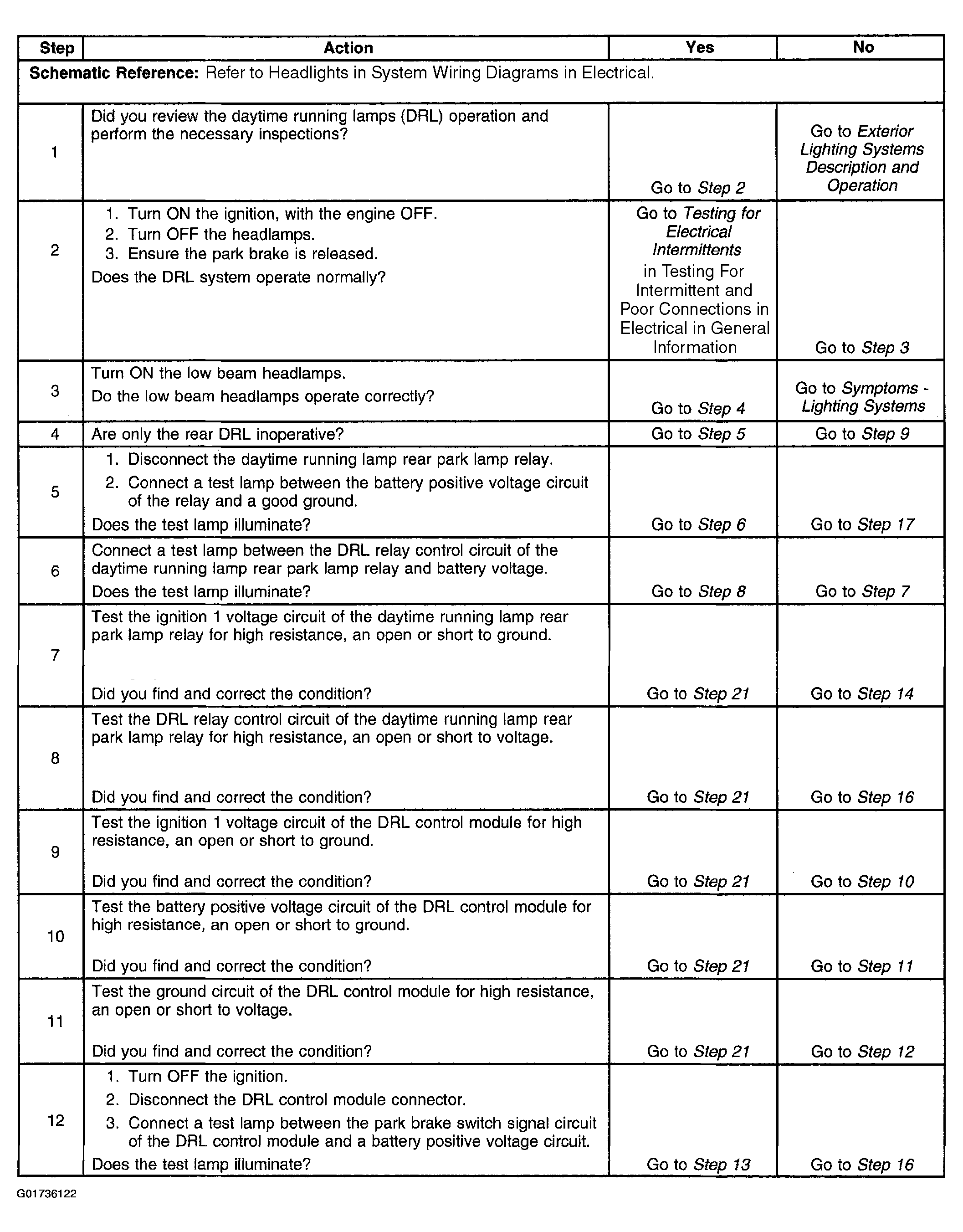

Fig 1: Daytime Running Lamps (DRL) Inoperative (Export) (1 Of 2)
G01736122Courtesy of GENERAL MOTORS CORP.

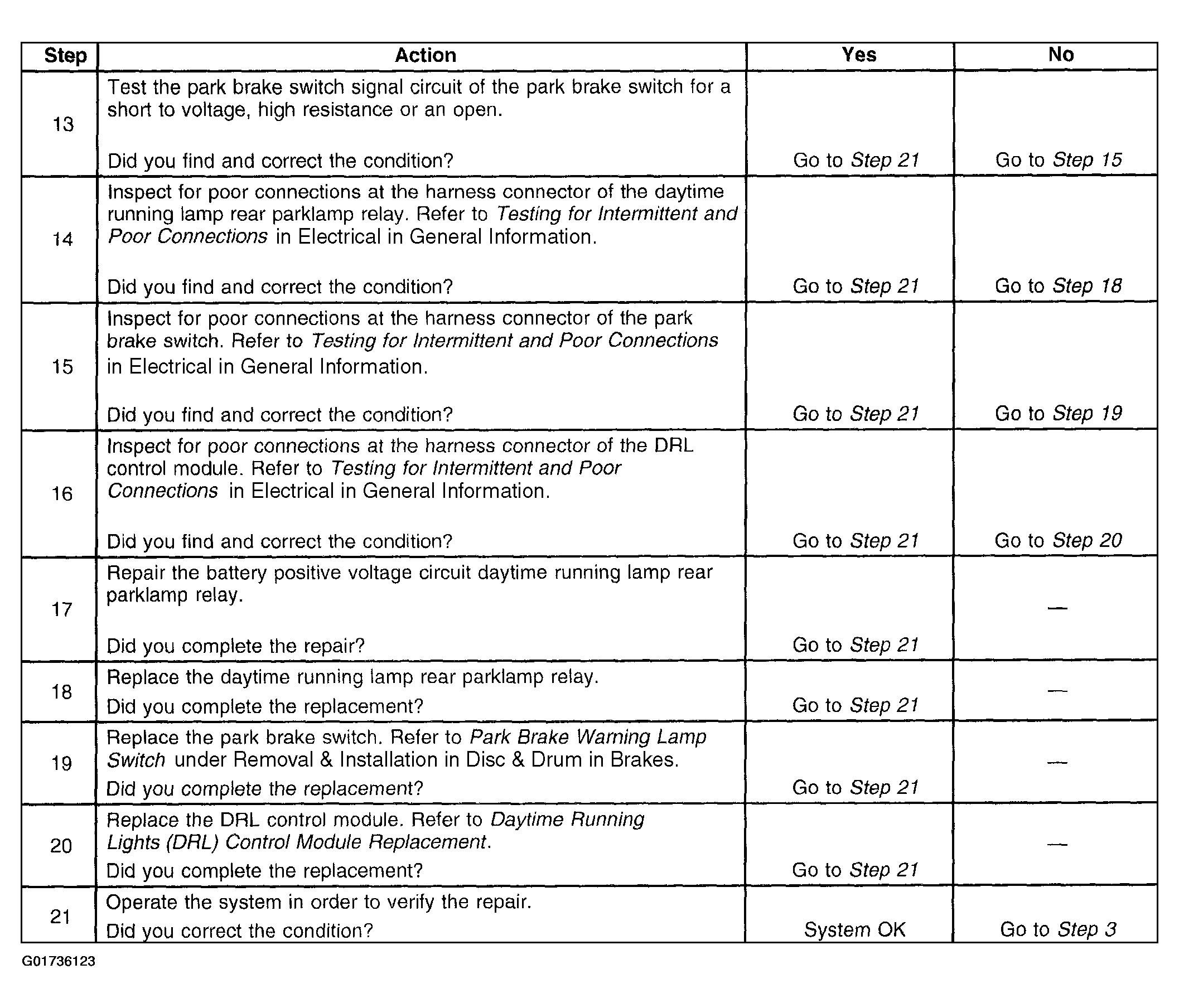

Fig 2: Daytime Running Lamps (DRL) Inoperative (Export) (2 Of 2)
G01736123Courtesy of GENERAL MOTORS CORP.
