Test Description

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a voltage signal from the PCM or the VSS buffer.
  2. 4. This step tests for a missing or erratic vehicle speed signal from the PCM or VSS buffer. An assistant may be required in order to perform this test.

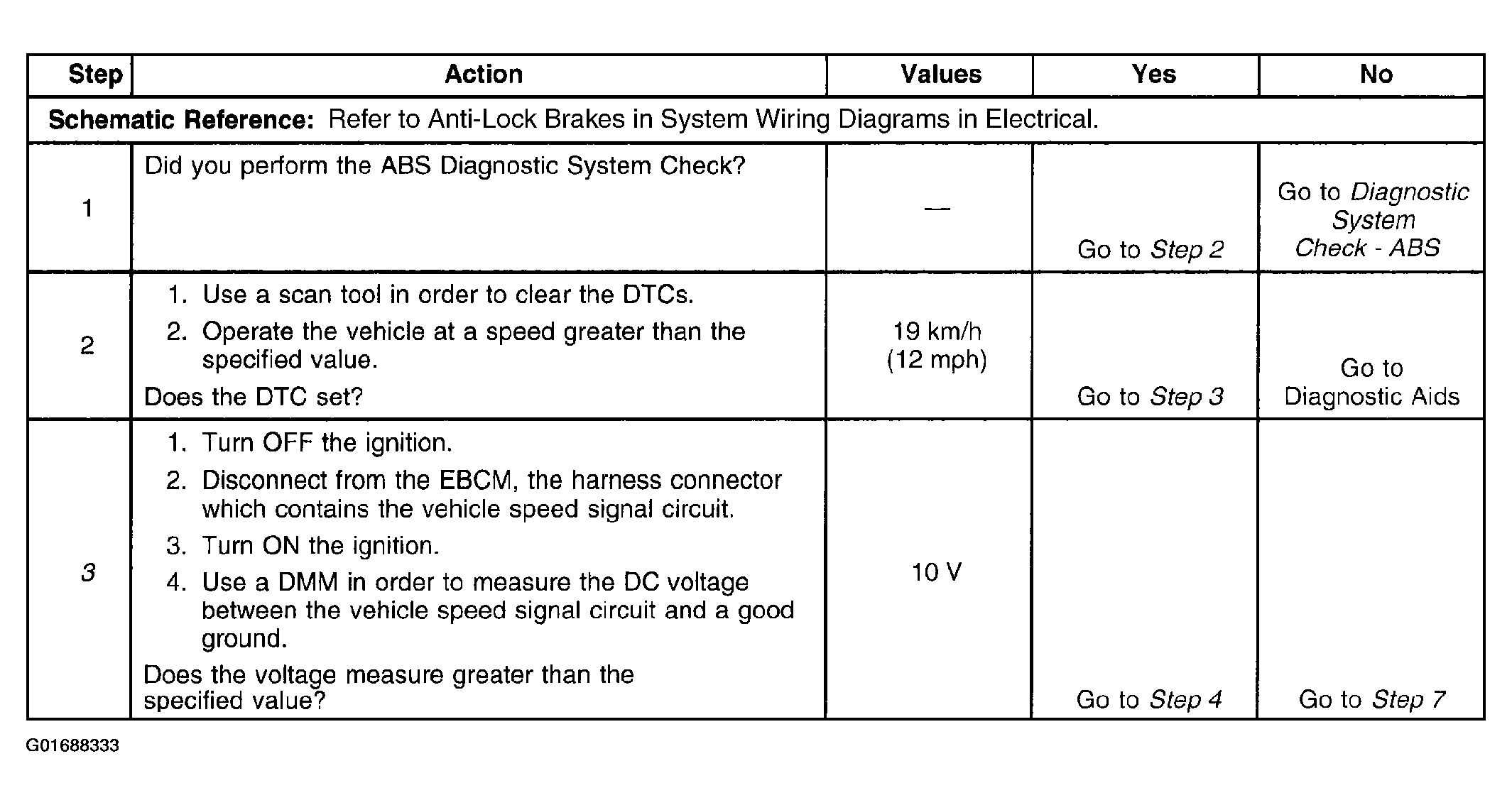

Fig 1: DTC C0235-C0237 Or P1504 (1 Of 2)
G01688333Courtesy of GENERAL MOTORS CORP.

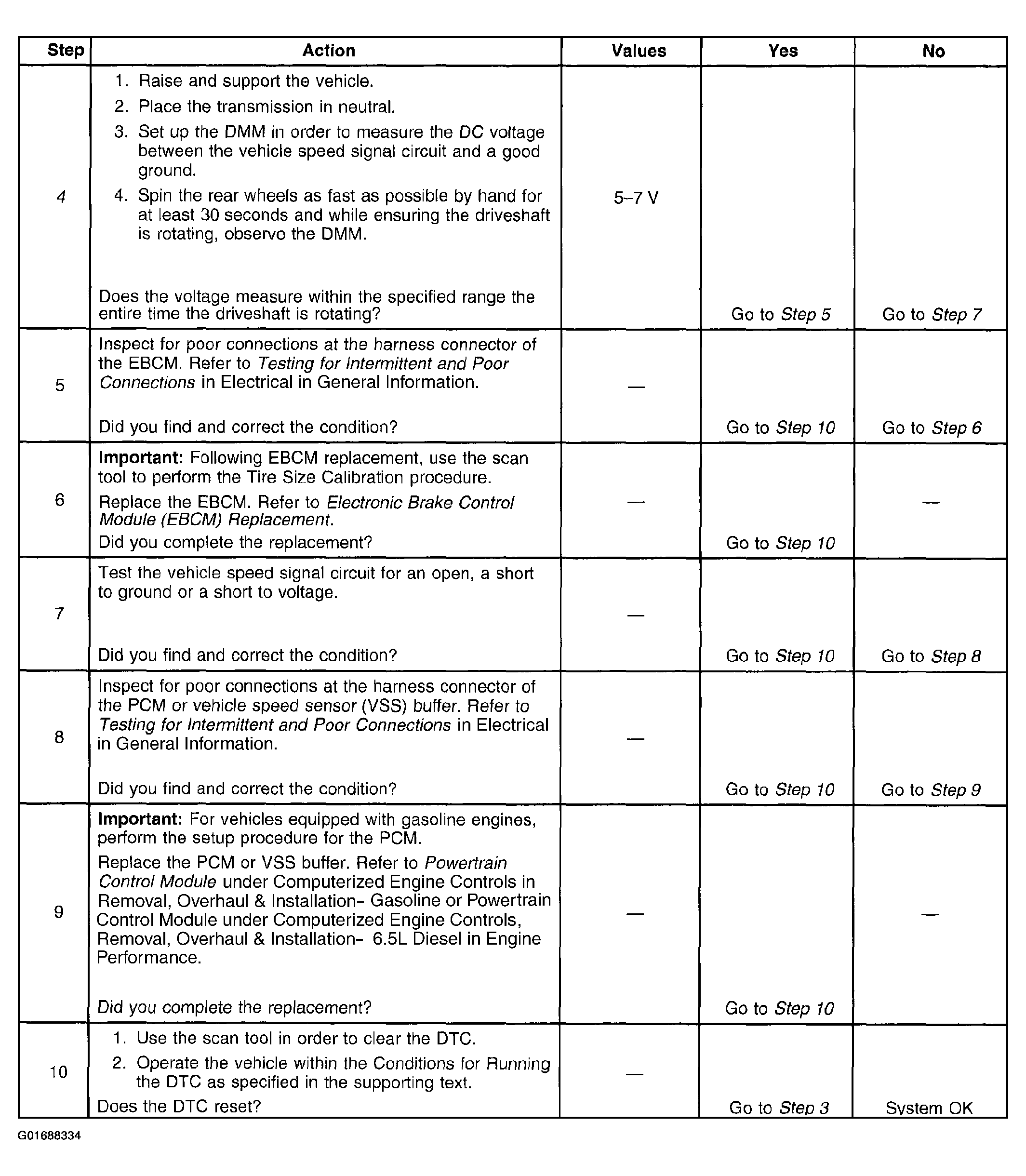

Fig 2: DTC C0235-C0237 Or P1504 (2 Of 2)
G01688334Courtesy of GENERAL MOTORS CORP.
