Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner intake duct.
  3. Remove the exhaust crossover pipe heat shield. Refer to Exhaust Crossover Pipe Replacement (3.1L)  or Exhaust Crossover Pipe Replacement (3.8L)  .
  4. Remove the exhaust crossover pipe nuts from the right exhaust manifold. Refer to Exhaust Crossover Pipe Replacement (3.1L)  or Exhaust Crossover Pipe Replacement (3.8L)  .
  5. Disconnect the heated oxygen sensor (HO2S) connector.

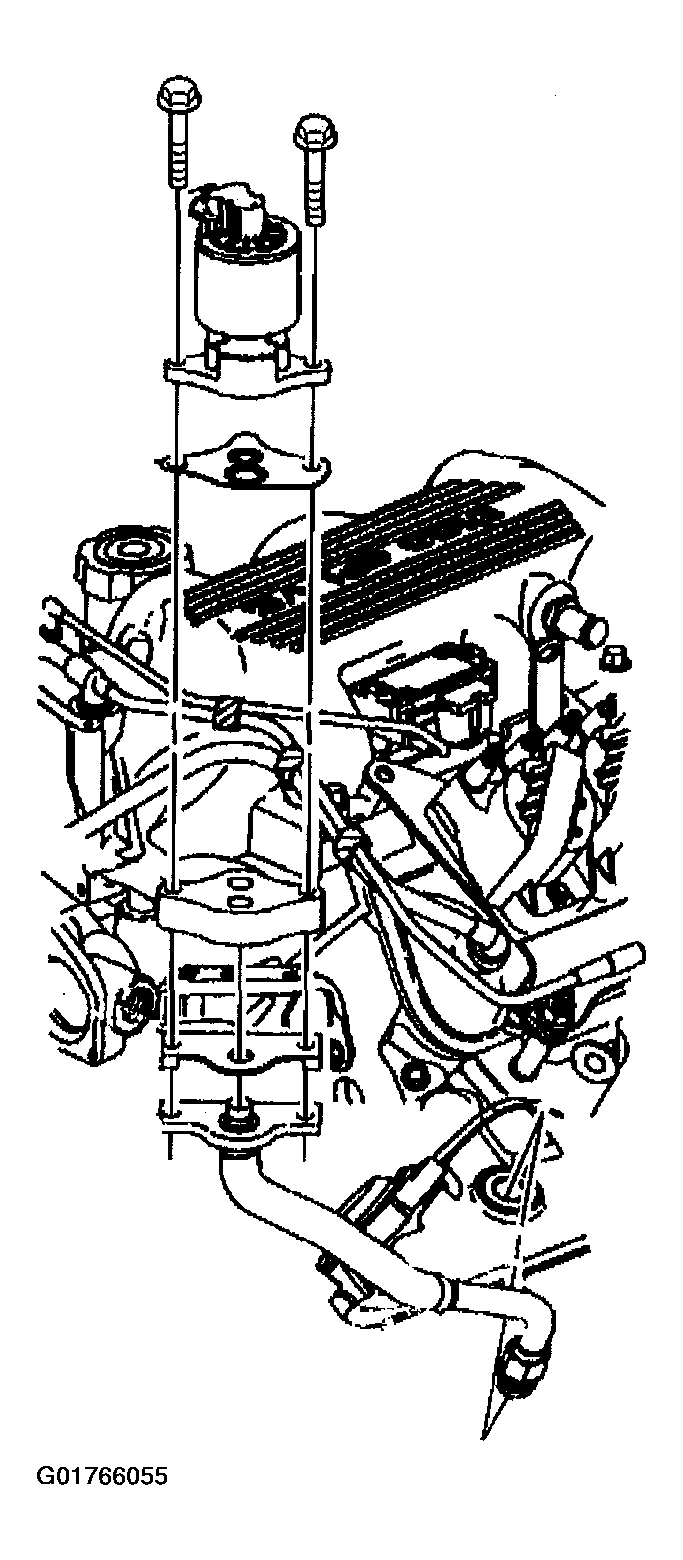

    6. Fig 1: Heated Oxygen Sensor (HO2S) Connector And Components
    G01766055Courtesy of GENERAL MOTORS CORP.
  6. Raise and support the vehicle.
  7. Remove the 3-way catalytic converter pipe from the right exhaust manifold. Refer to Catalytic Converter Replacement (3.1 L)  or Catalytic Converter Replacement (3.8L)  .
  8. Remove the exhaust gas recirculation (EGR) tube from the right exhaust manifold. Refer to EGR VALVE PIPE .
  9. Remove the exhaust manifold upper heat shield bolts.
  10. Remove the exhaust manifold upper heat shield.

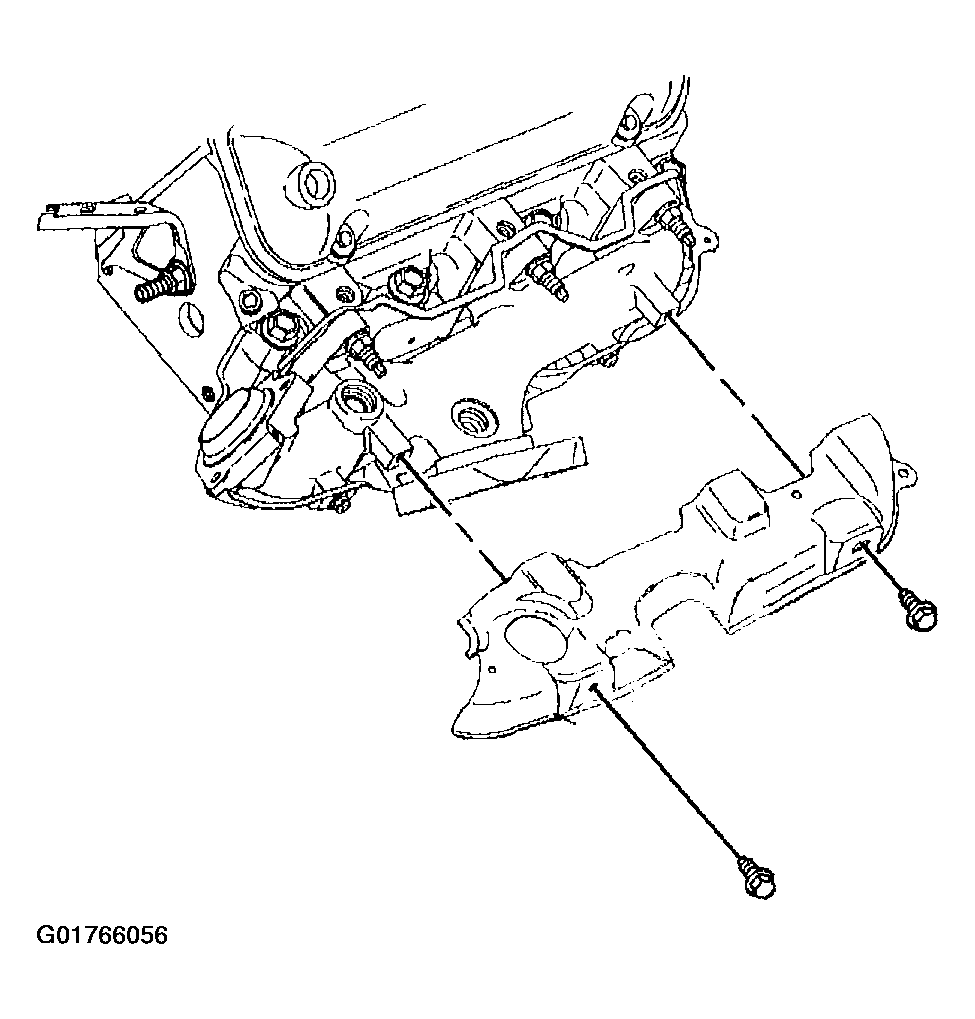

    Fig 2: Exhaust Manifold Upper Heat Shield And Bolts
    G01766056Courtesy of GENERAL MOTORS CORP.
  11. Remove the exhaust manifold lower heat shield bolts
  12. Remove the exhaust manifold lower heat shield.

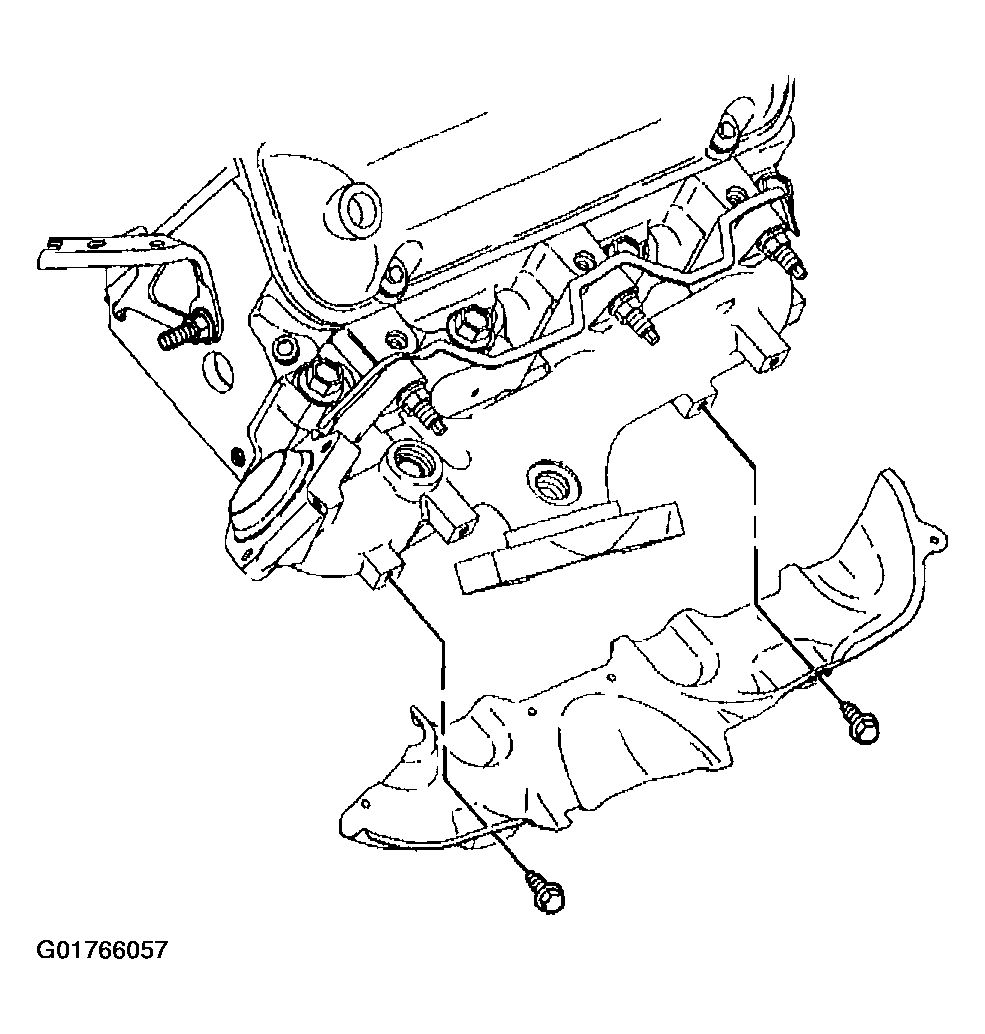

    Fig 3: Exhaust Manifold Lower Heat Shield And Bolts
    G01766057Courtesy of GENERAL MOTORS CORP.
  13. Remove the exhaust manifold nuts.
  14. Remove the exhaust manifold.
  15. Remove the right exhaust manifold gasket.
  16. Clean and inspect the exhaust manifold. Refer to EXHAUST MANIFOLD CLEANING AND INSPECTION .

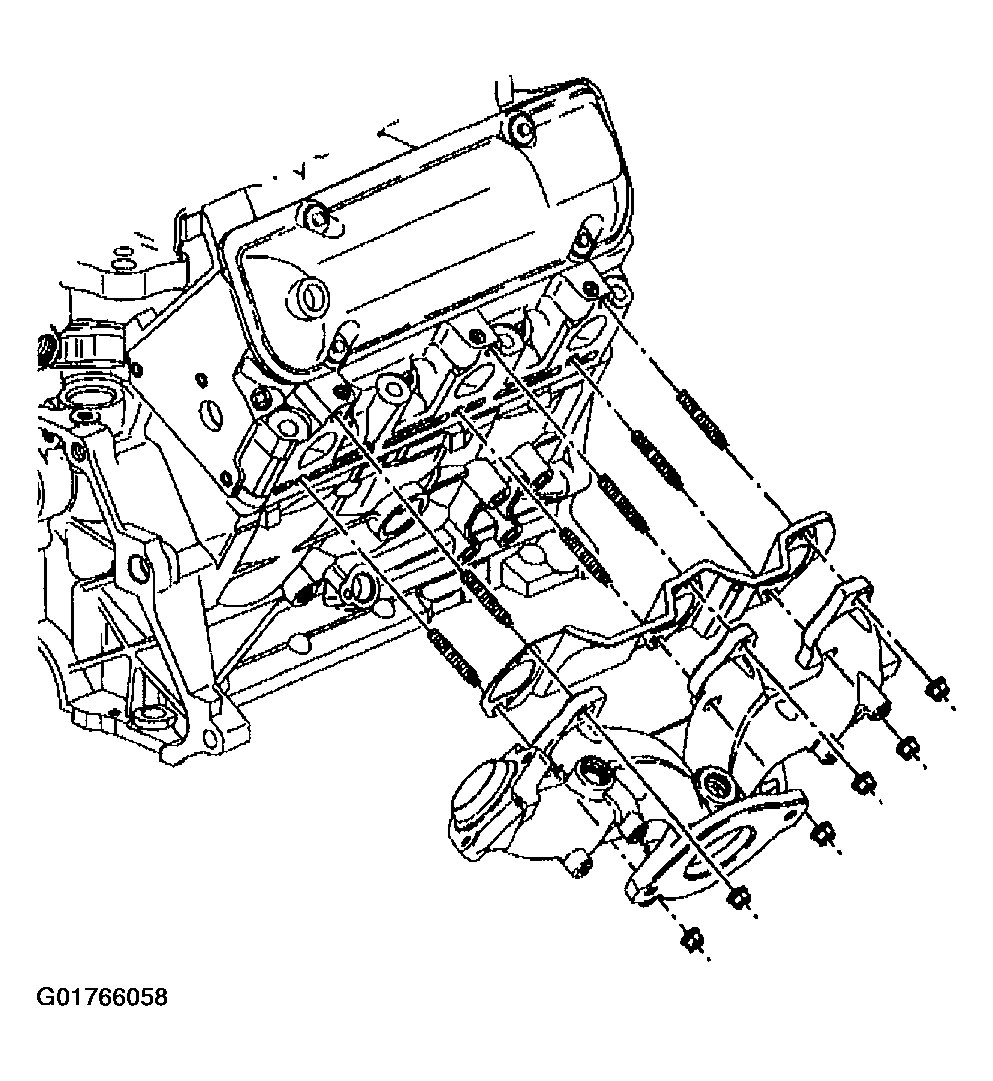

    Fig 4: Right Exhaust Manifold Components
    G01766058Courtesy of GENERAL MOTORS CORP.
  17. Remove the heated oxygen sensor (HO2S). Refer to HEATED OXYGEN SENSOR .

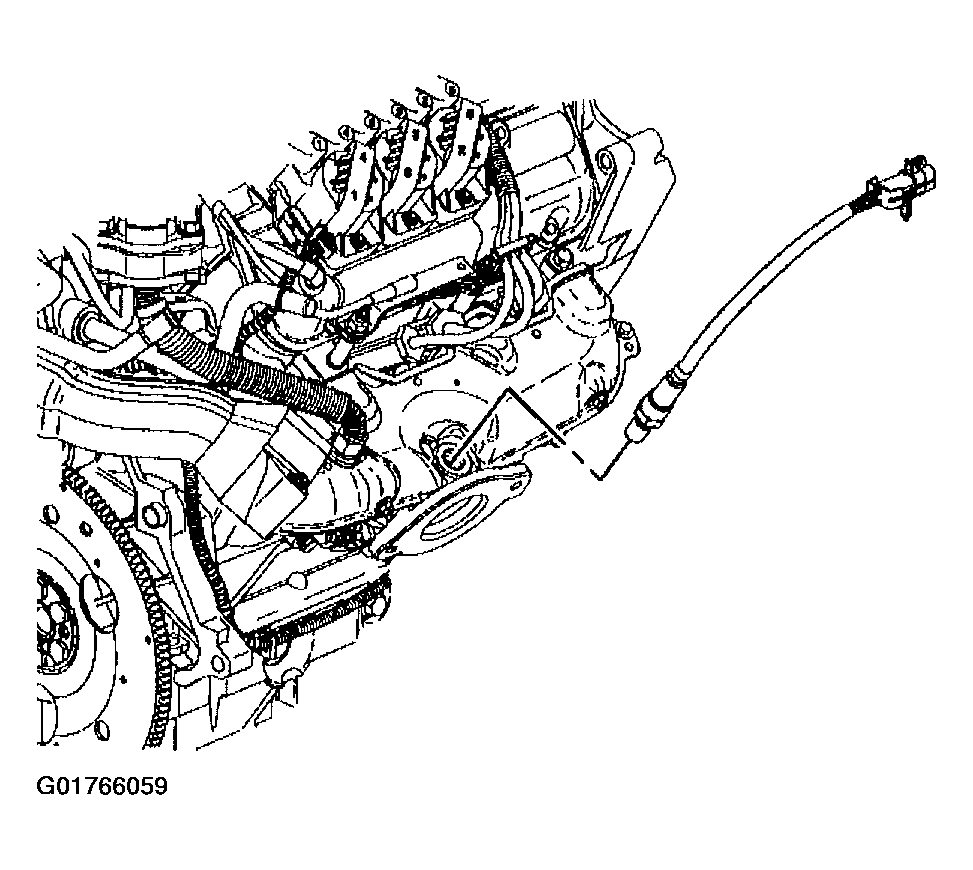

    Fig 5: Heated Oxygen Sensor (HO2S)
    G01766059Courtesy of GENERAL MOTORS CORP.
