Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands.
  2. Remove the wheel nuts from the tire and wheel.
  3. Mark the location of the tire and wheel to the hub assembly.
  4. Remove the tire and wheel from the vehicle.
  5. Clean the wheel nuts, studs and the wheel and rotor mounting surfaces.

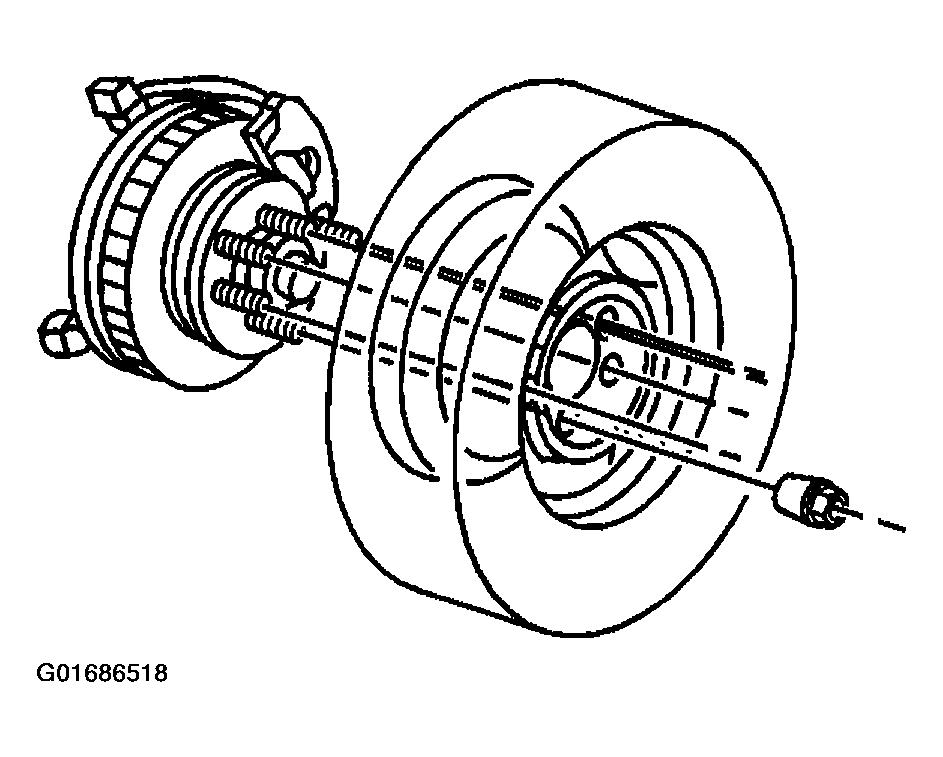

    Fig 1: Removing Wheel Nuts, Tire & Wheel
    G01686518Courtesy of GENERAL MOTORS CORP.
