Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire from the tire hoist.
  2. Remove the retaining bolt from the hoist.
    Fig 1: Removing Retaining Bolt From Hoist
    G01686527Courtesy of GENERAL MOTORS CORP.
  3. Remove the pin and the retainer clip from the hoist and the shaft.

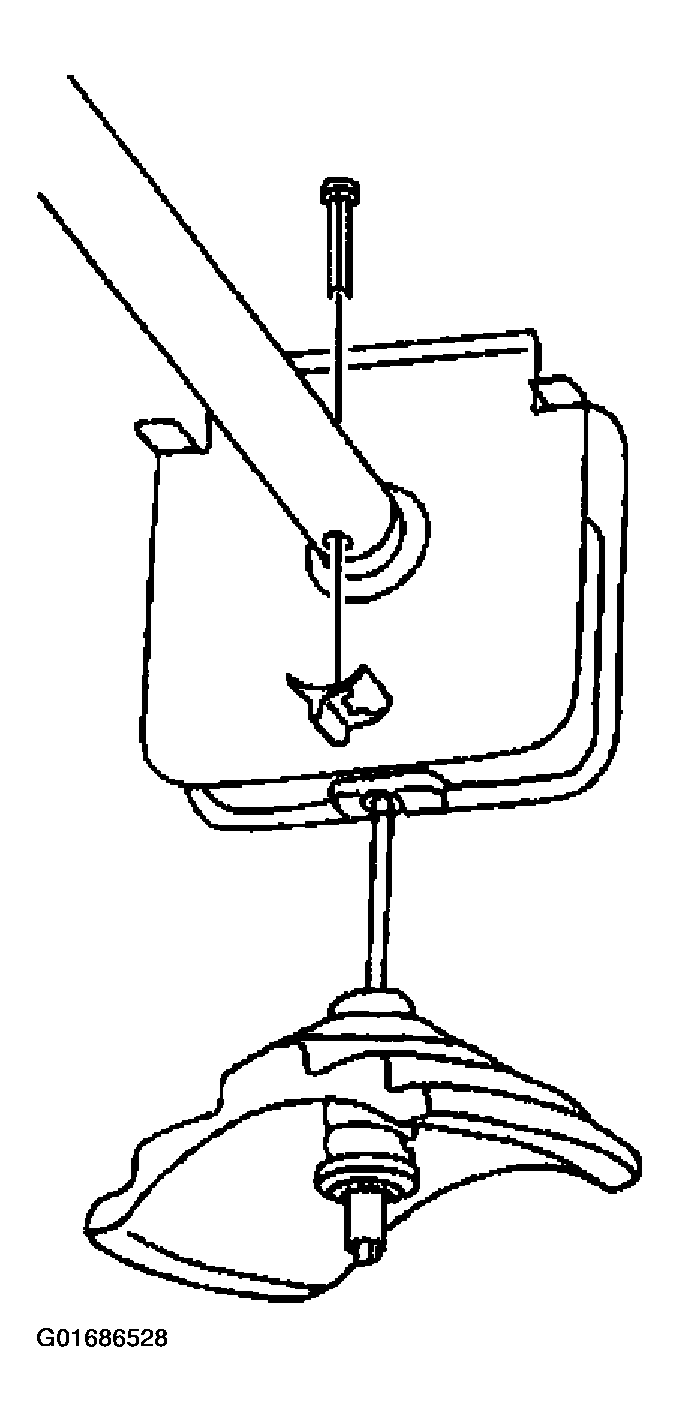

    Fig 2: Removing Pin & Retainer Clip From Hoist & Shaft
    G01686528Courtesy of GENERAL MOTORS CORP.
  4. Remove the spare tire shaft and guide from the vehicle.

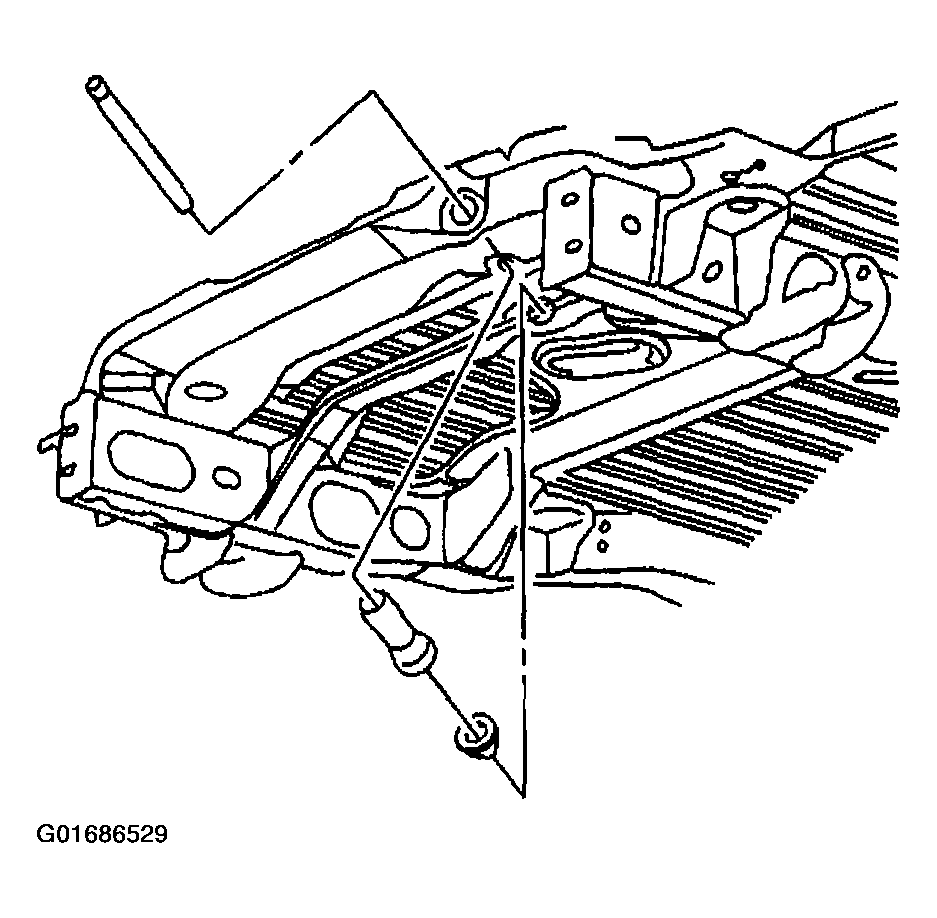

    Fig 3: Removing Spare Tire Shaft & Guide
    G01686529Courtesy of GENERAL MOTORS CORP.
  5. Remove the hoist from the crossmember.
    Fig 4: Removing Hoist From Crossmember
    G01686530Courtesy of GENERAL MOTORS CORP.
