Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

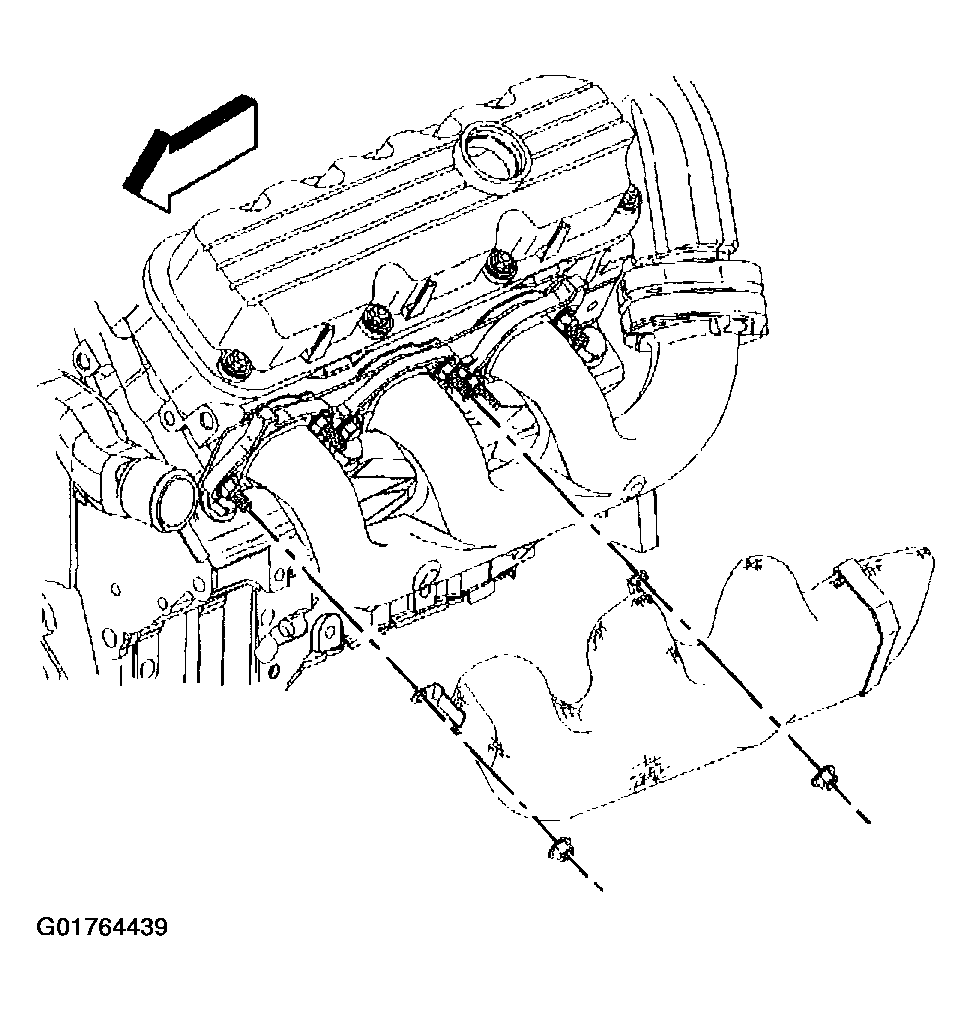

    Fig 1: Exhaust Manifold Heat Shield And Nuts
    G01764439Courtesy of GENERAL MOTORS CORP.
  3. Remove the left engine lift hook nut and bolt.
  4. Remove the left engine lift hook.
  5. Remove the left side spark plugs.

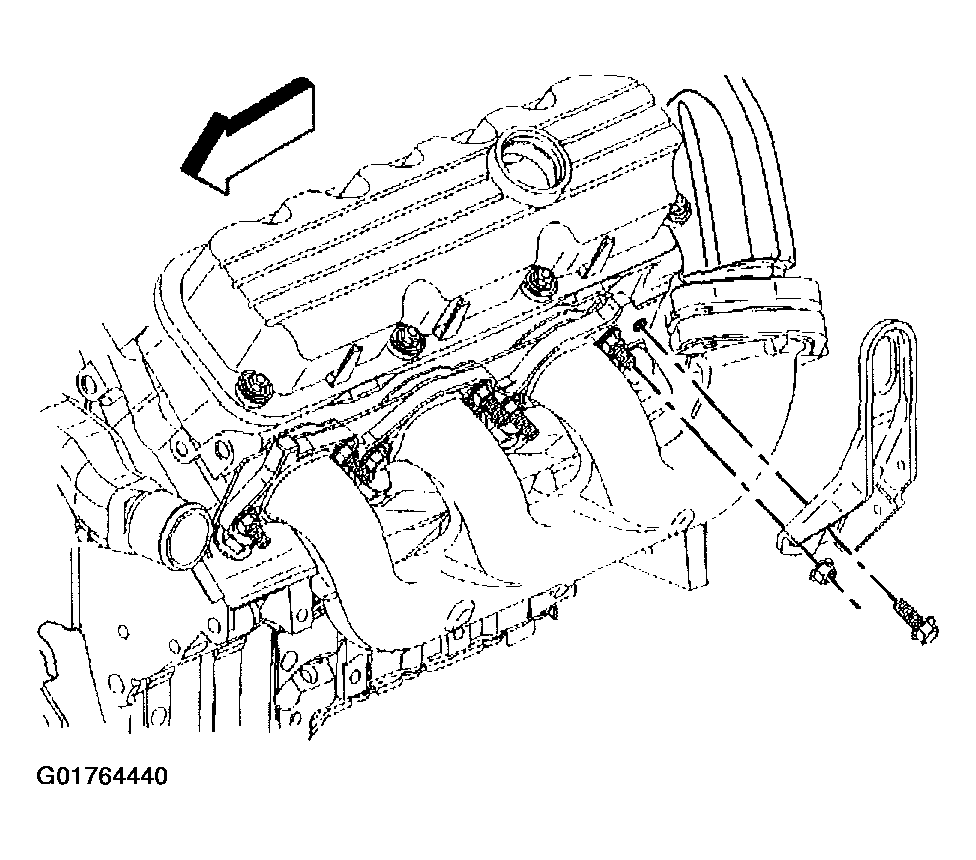

    Fig 2: Left Engine Lift Hook
    G01764440Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust manifold bolt and studs.
  7. Remove the exhaust manifold.
  8. Remove the exhaust manifold gasket.

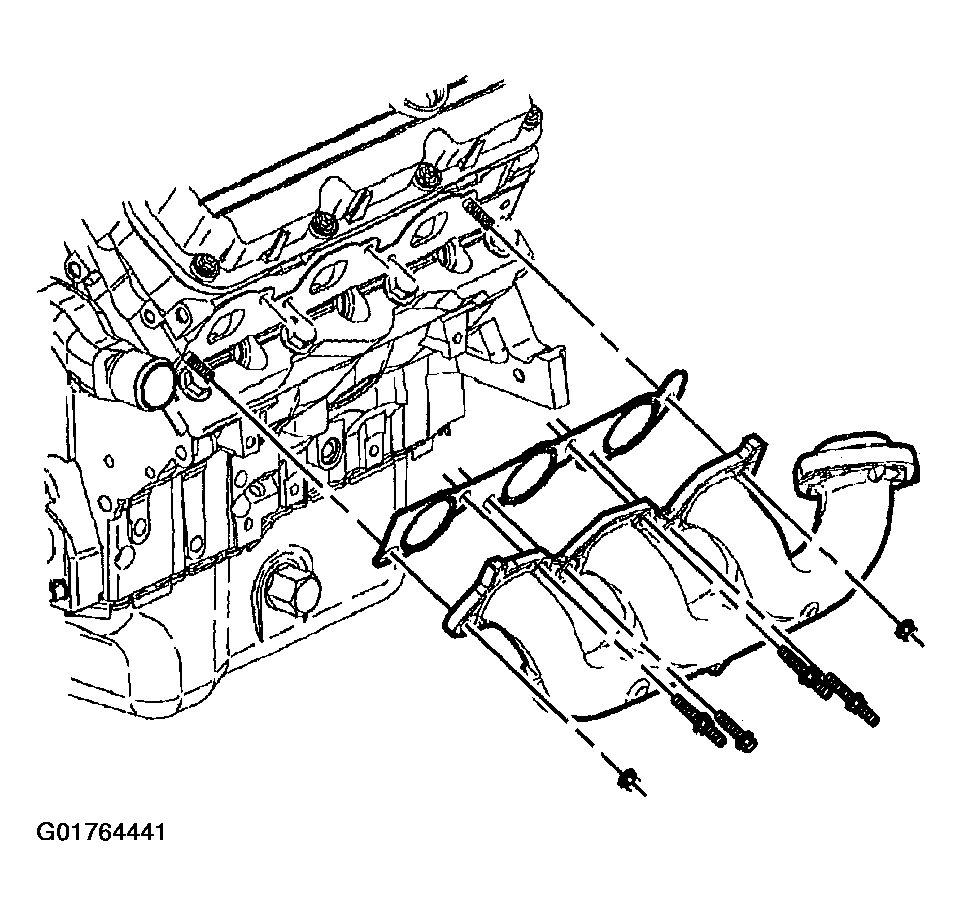

    Fig 3: Exhaust Manifold Bolts, Nuts, And Gasket
    G01764441Courtesy of GENERAL MOTORS CORP.
  9. Remove the exhaust manifold studs.

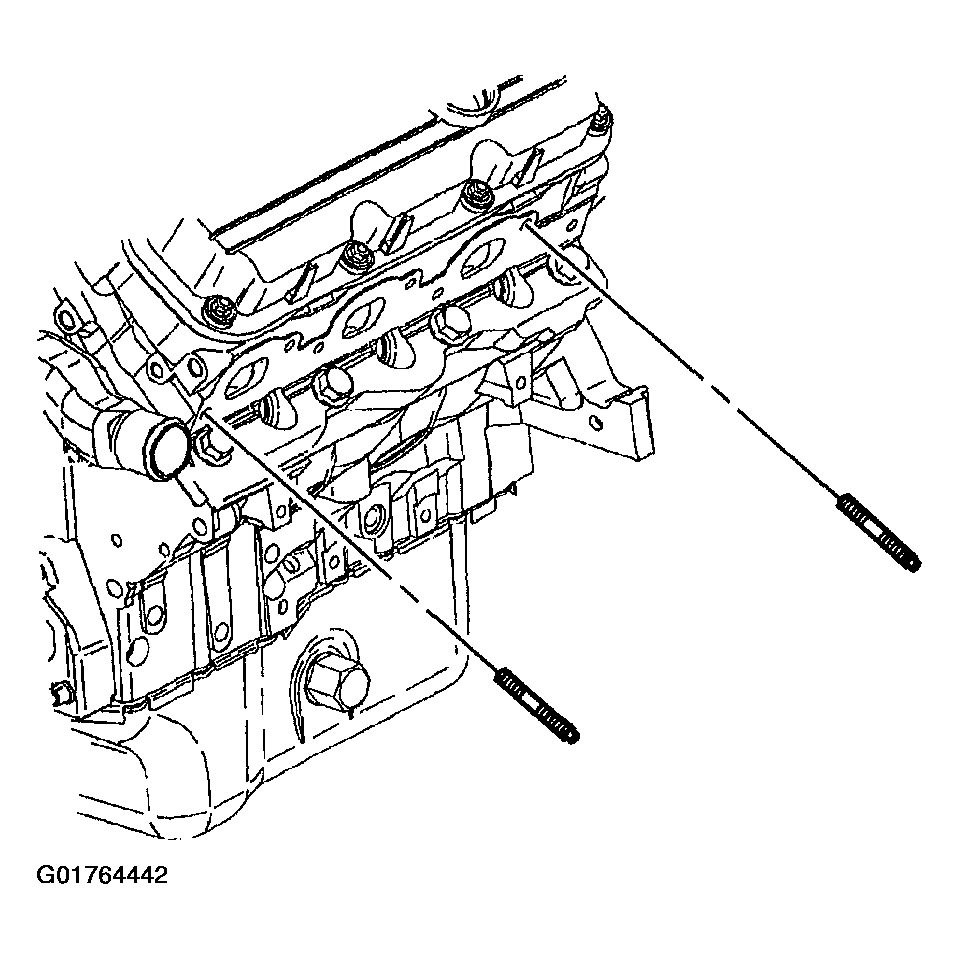

    Fig 4: Exhaust Manifold Studs
    G01764442Courtesy of GENERAL MOTORS CORP.
