Camshaft Bearing Removal

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 33049 Camshaft Bearing Remover/Installer

Select the expander assembly and driving washer.
Assemble J 33049.

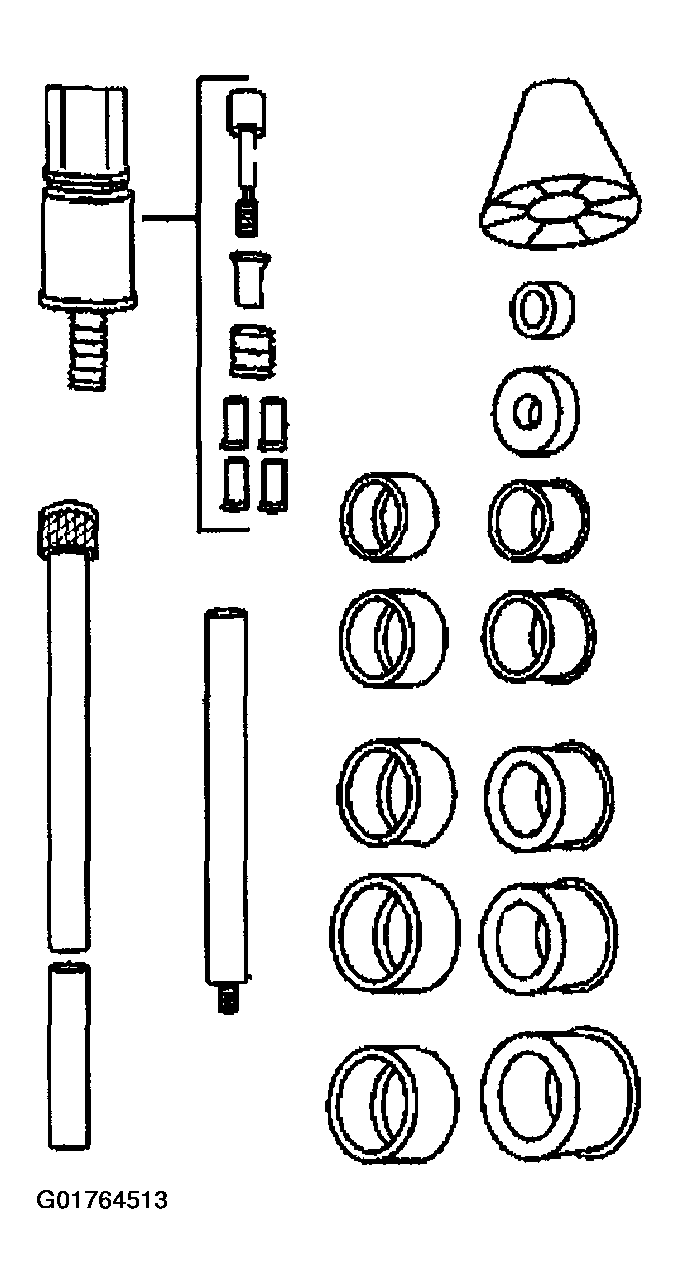

Fig 1: Assemble J 33049
Courtesy of GENERAL MOTORS CORP.
Drive out the camshaft bearings.

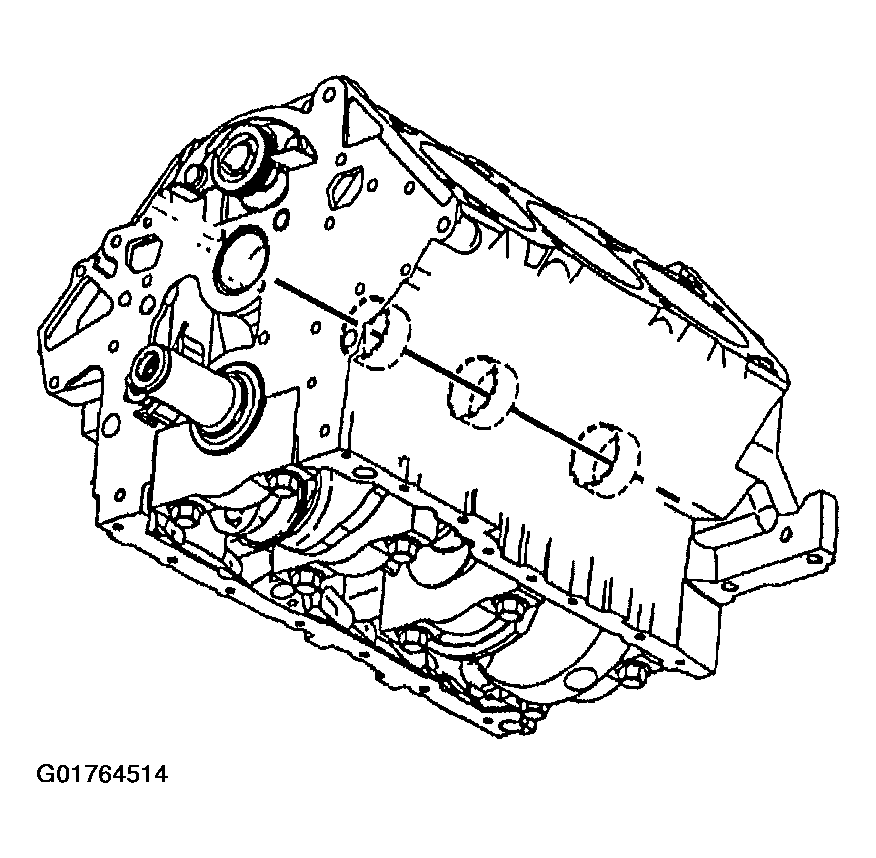

Fig 2: Camshaft Bearings
Courtesy of GENERAL MOTORS CORP.
