Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Loosen the nut holding the oil level indicator tube bracket to the exhaust manifold stud.
  3. Remove the oil level indicator tube. Pull upward.

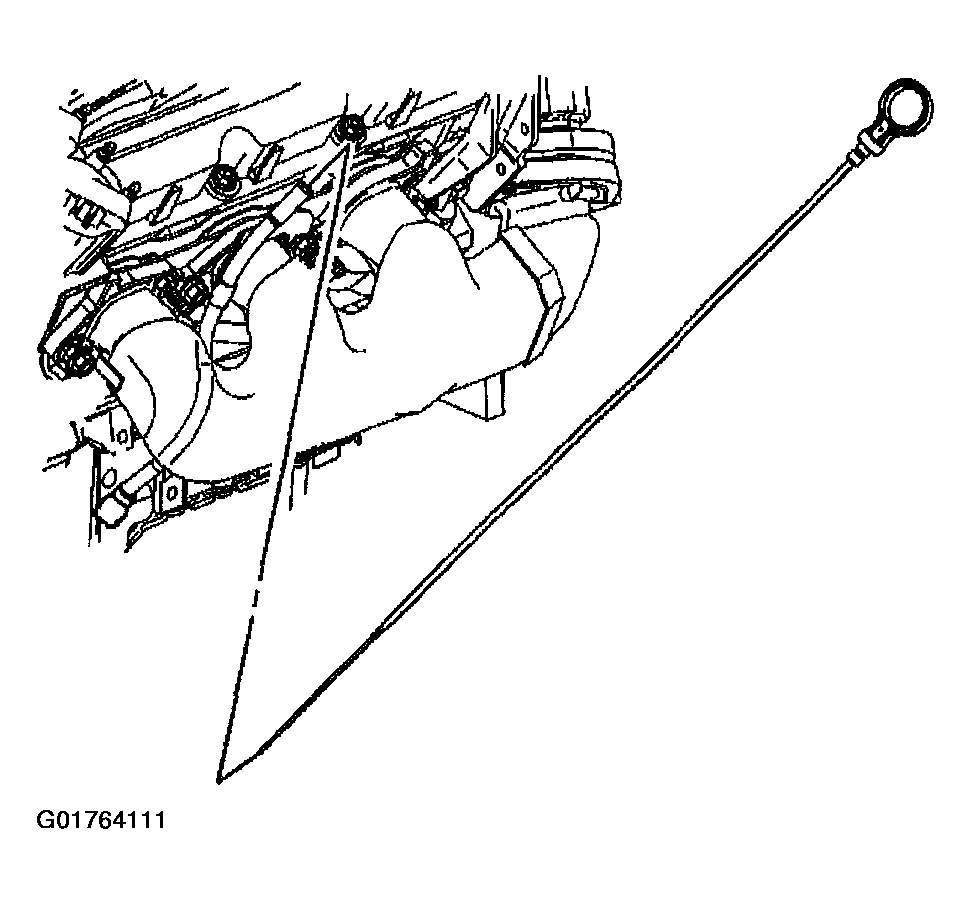

    Fig 1: Oil Level Indicator Tube
    G01764111Courtesy of GENERAL MOTORS CORP.
