Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67)
  3. Remove the right engine mount strut from the upper engine mount strut bracket. Refer to Engine Mount Strut Replacement - Right

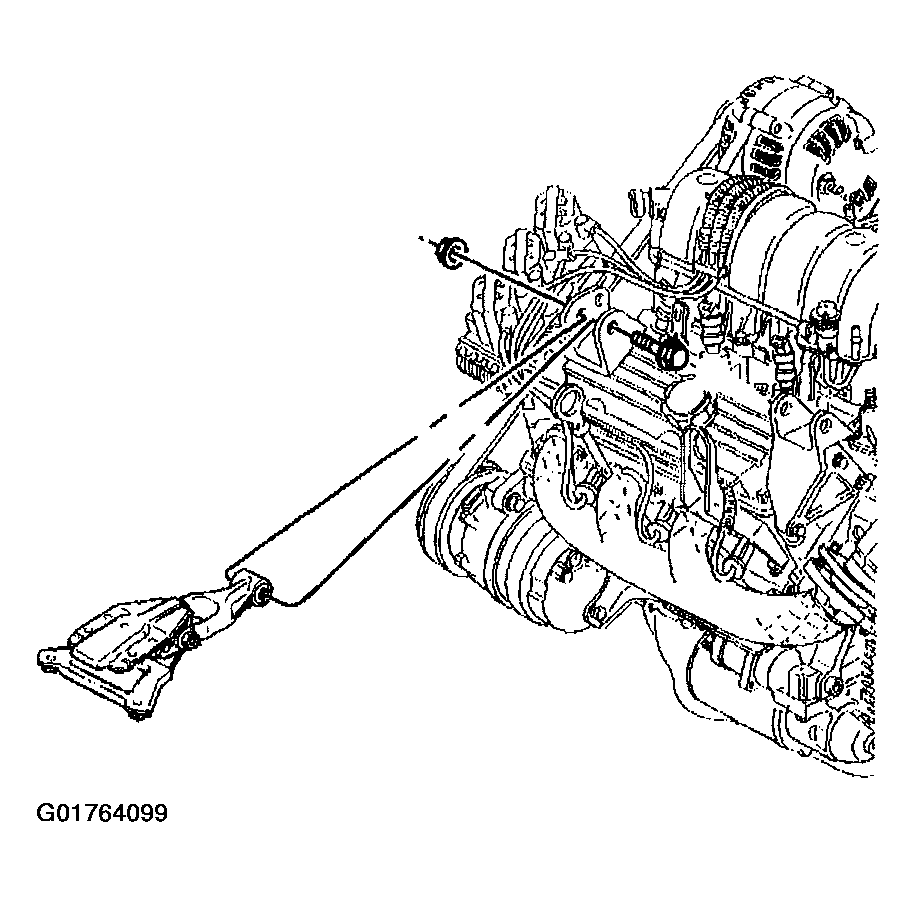

    Fig 1: Right Engine Mount Strut
    G01764099Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower engine mount strut bracket nut.
  5. Remove the lower engine mount strut bracket bolts and the bracket.

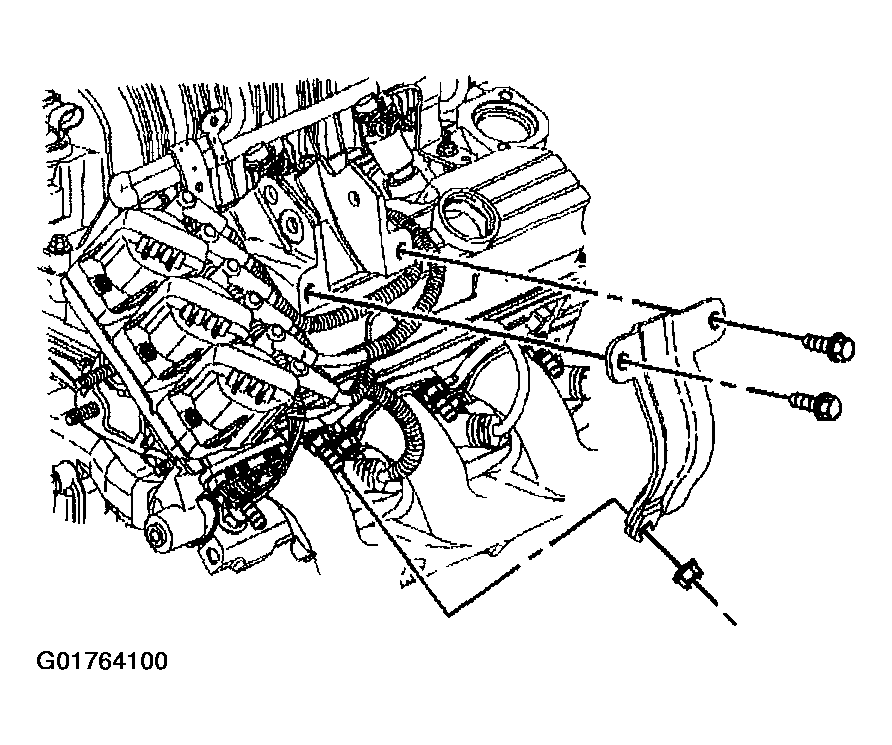

    6. Fig 2: Lower Engine Mount Strut Bracket Bolts And The Bracket
    G01764100Courtesy of GENERAL MOTORS CORP.
  6. Remove the EVAP emissions canister purge valve. Refer to EVAP CANISTER PURGE SOLENOID
  7. Relieve the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE
  8. Remove the fuel rail assembly. Refer to FUEL RAIL & INJECTORS .
  9. Remove the upper engine mount strut bracket bolts.
  10. Remove the upper engine mount strut bracket.

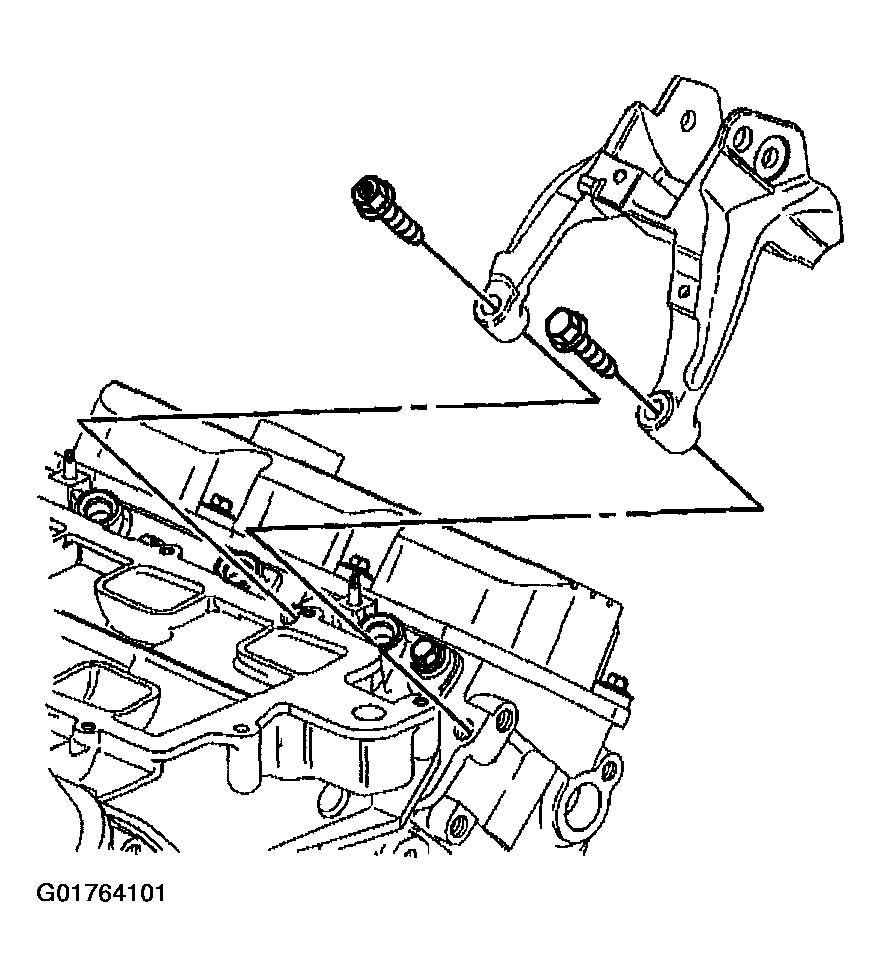

    Fig 3: Upper Engine Mount Strut Bracket Bolts
    G01764101Courtesy of GENERAL MOTORS CORP.
