Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the supercharger drive belt. Refer to Drive Belt Replacement (L67)
    Fig 1: Supercharger Drive Belt
    G01764052Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt idler pulley bolt.
  3. Remove the drive belt idler pulley.

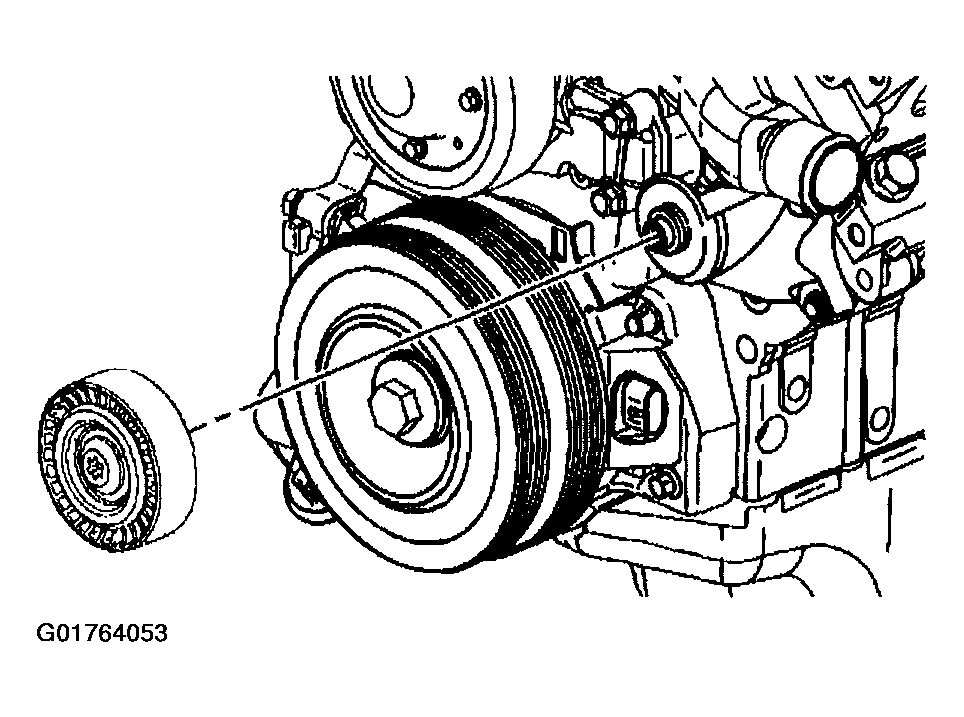

    Fig 2: Drive Belt Idler Pulley
    G01764053Courtesy of GENERAL MOTORS CORP.
  4. Remove the idler pulley bracket bolts.
  5. Remove the idler pulley bracket.

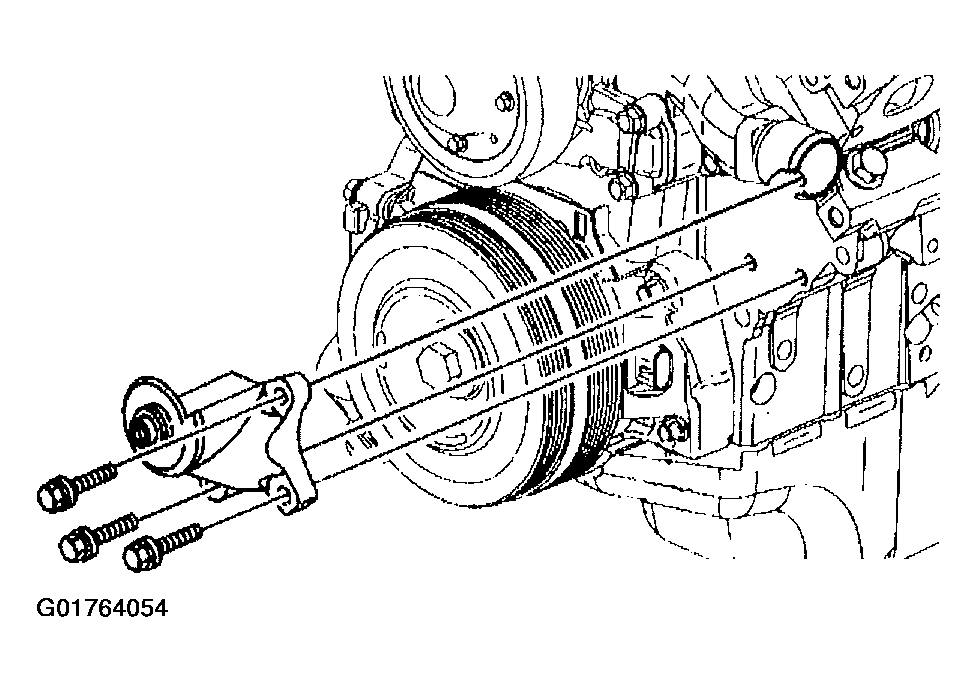

    Fig 3: Idler Pulley Bracket
    G01764054Courtesy of GENERAL MOTORS CORP.
