Water Pump Installation

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
  3. Install the water pump bolts.

    Tighten:

    Tighten the water pump bolts to 10 N.m (89 lb in)

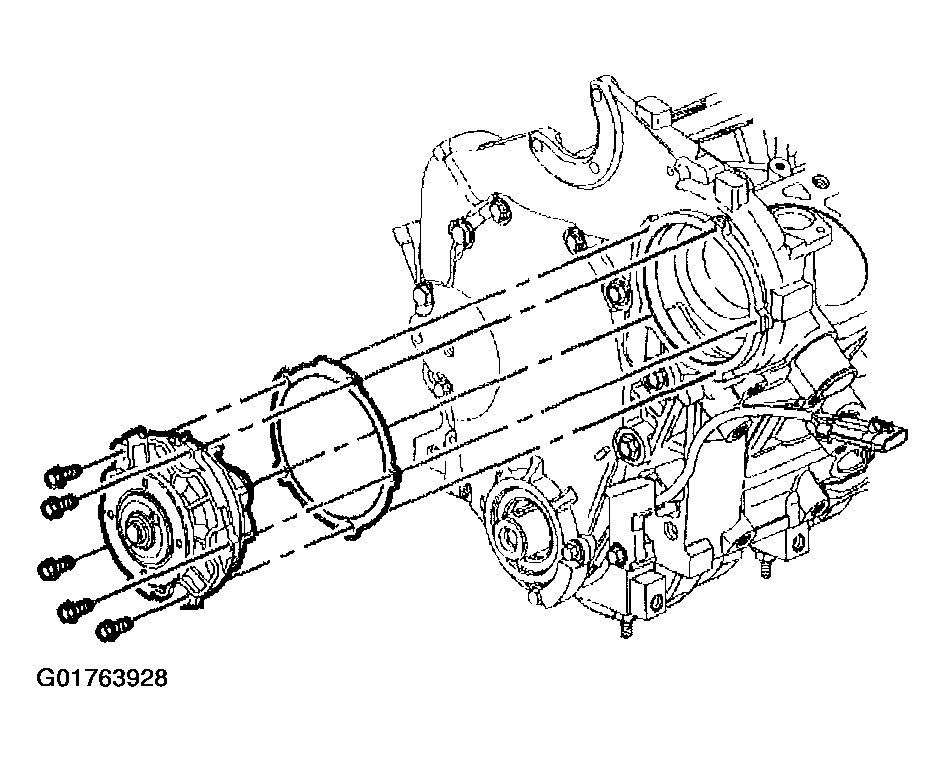

    Fig 1: Water Pump Mounting Bolts
    G01763928Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten:

    Tighten the water pump pulley bolts to 25 N.m (18 lb ft)

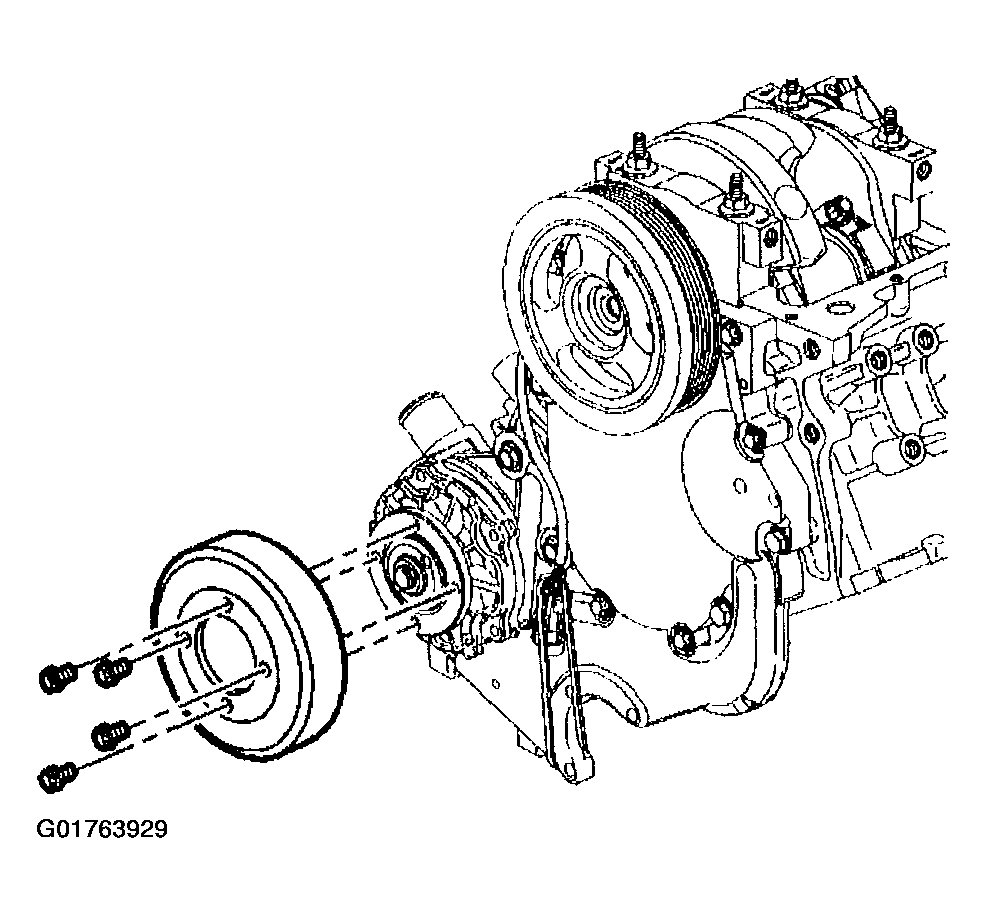

    Fig 2: Water Pump Pulley
    G01763929Courtesy of GENERAL MOTORS CORP.
