Water Outlet Removal

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts
  2. Remove the water outlet.

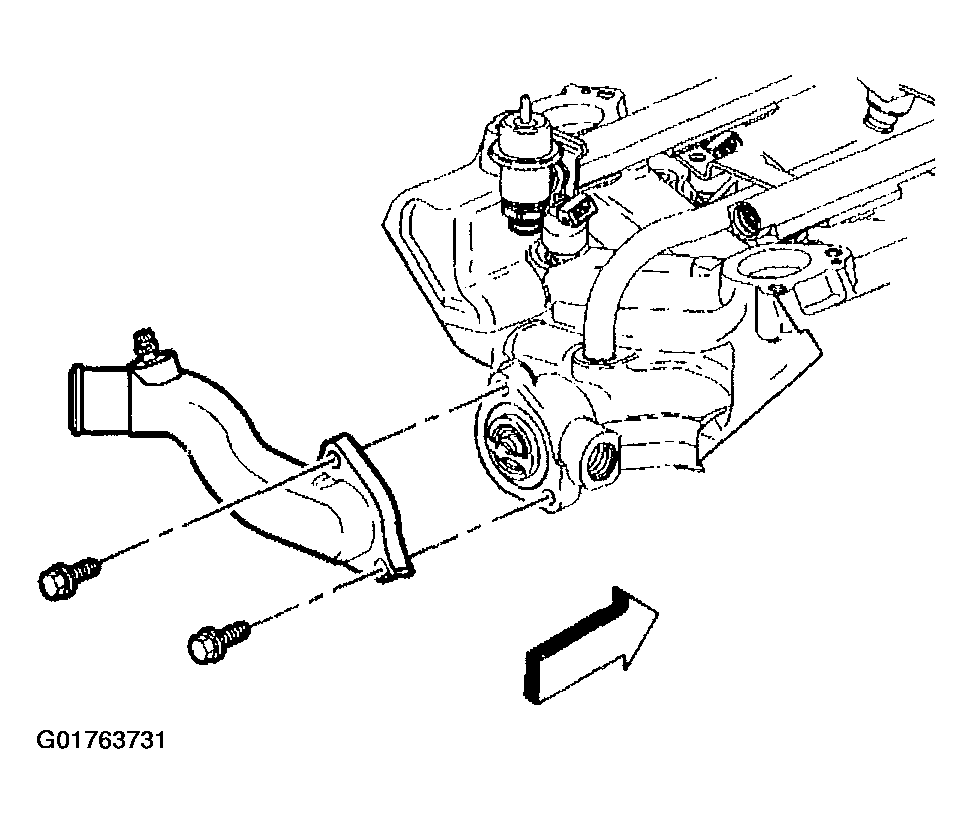

    Fig 1: Water Outlet And Bolts
    G01763731Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

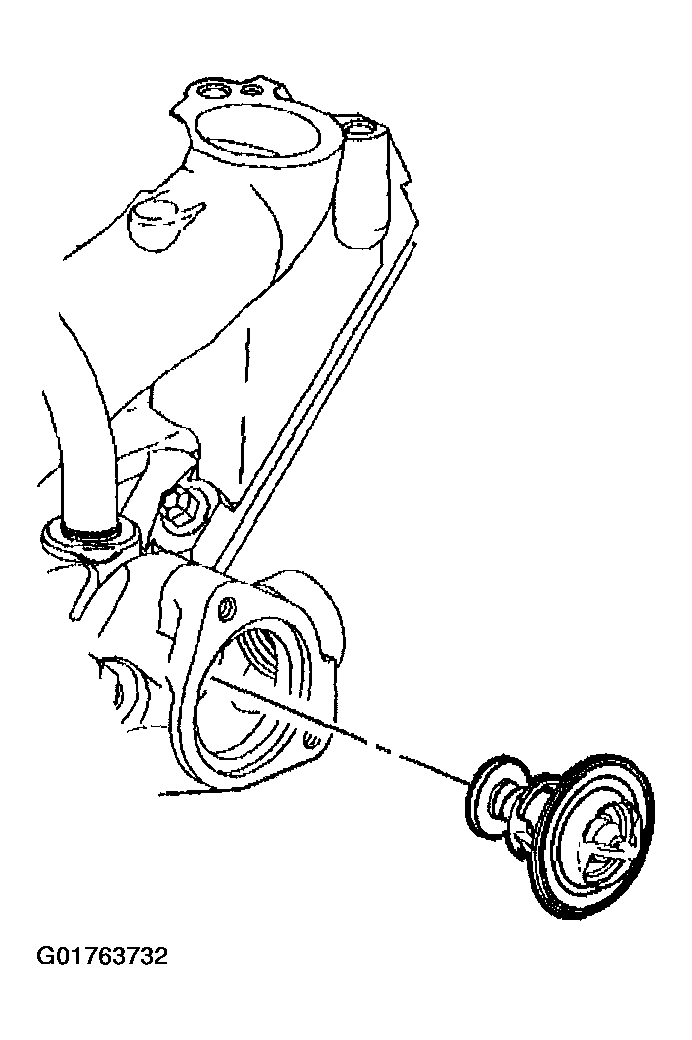

    Fig 2: Thermostat
    G01763732Courtesy of GENERAL MOTORS CORP.
