Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft sprocket bolt.
Remove the camshaft sprocket and timing chain.

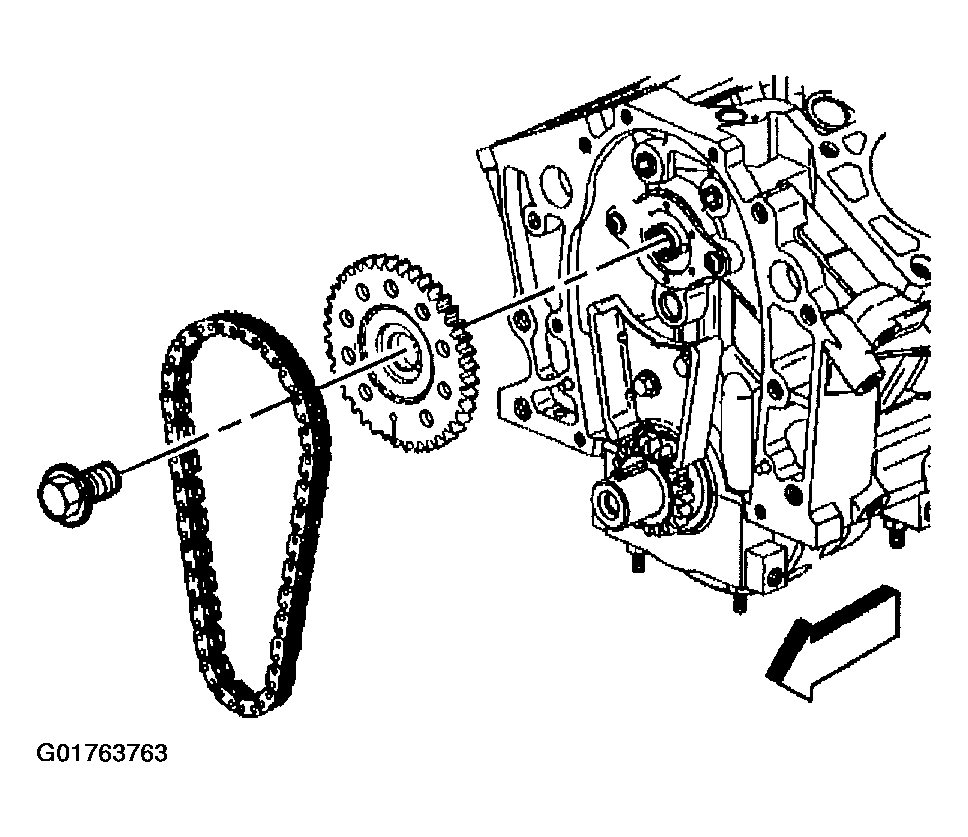

Fig 1: Camshaft Sprocket, Bolt And Timing Chain
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft sprocket.

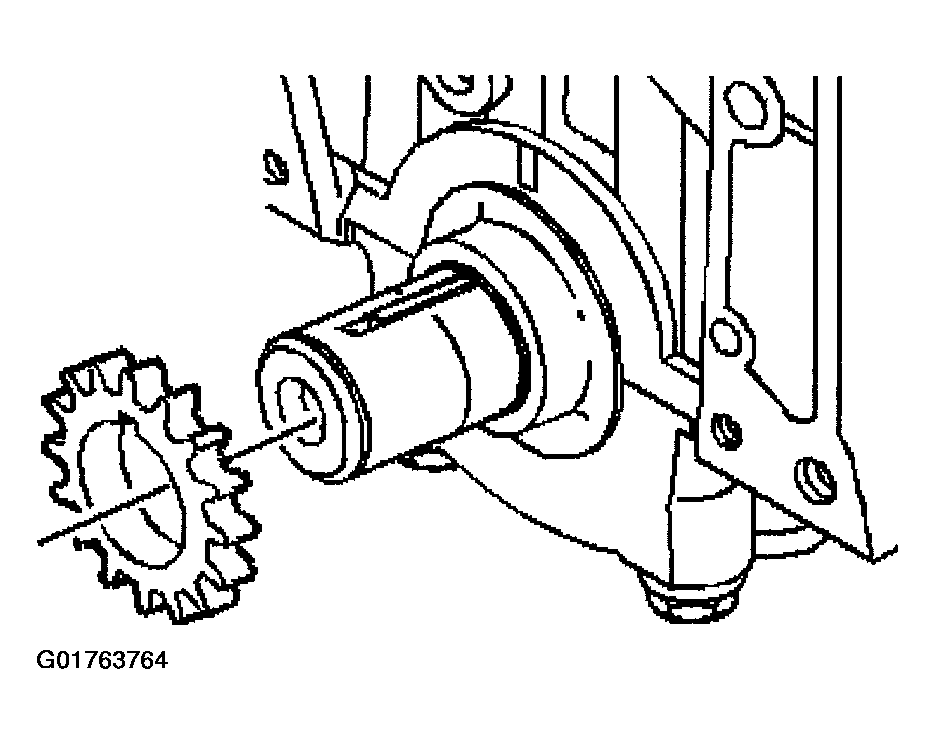

Fig 2: Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
Remove the timing chain dampener bolts.
Remove the timing chain dampener.

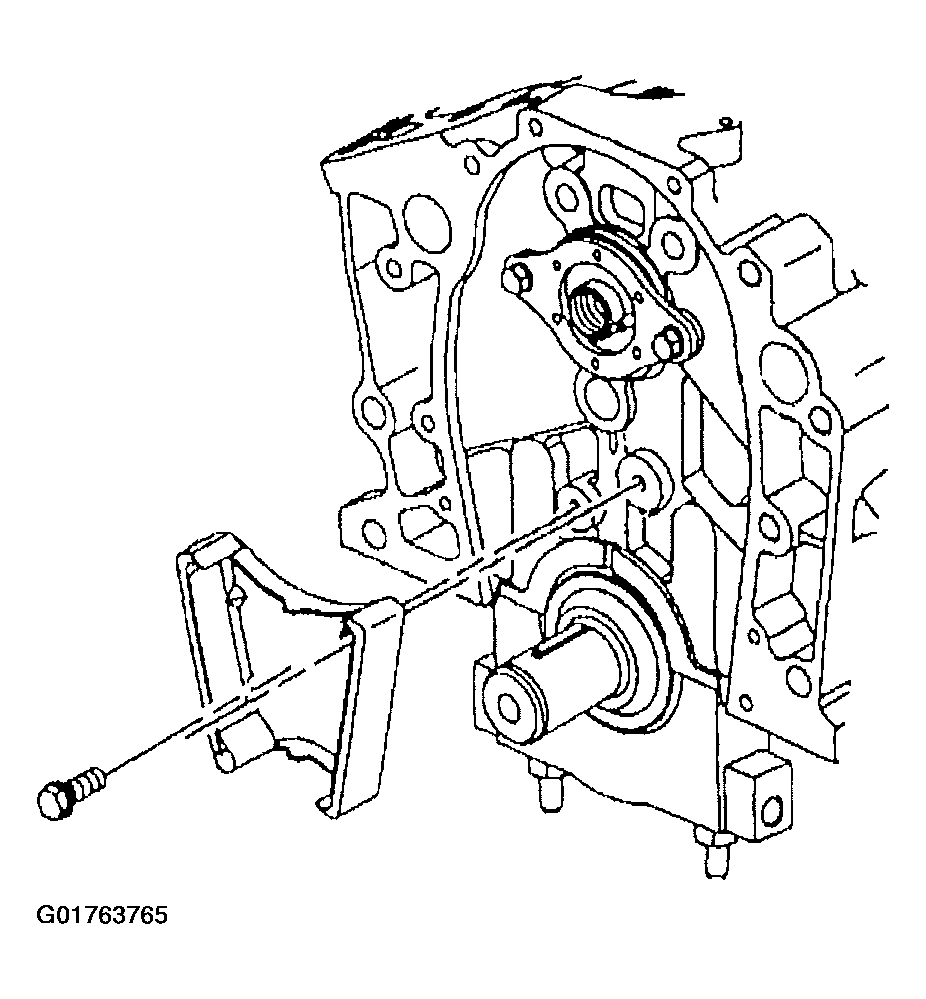

Fig 3: Timing Chain Dampener And Bolts
Courtesy of GENERAL MOTORS CORP.
